Figure-8 Self-supporting Aramid Yarns Tubes Drop Cable

The ftth drop fiber optic cable is a new type of fiber-optic cable. It is a butterfly-shaped cable. Because it is small in size and light in weight, it is suitable for the application of Fiber to the Home. It can be cut according to the distance of the site, increased the efficiency of construction. FTTH fiber drop cables with FRP, KFRP, metal or non-metal strength members that designed for high-capacity indoor/outdoor FTTH networks.

Send Email

Features

Standard fiber count: 1~4 core
Economical construction for aerial cabling application
Outstanding mechanical & environmental characteristics

Application

Fiber to the home(FTTH)
Cyber APT
Office Building
PC room
CATV

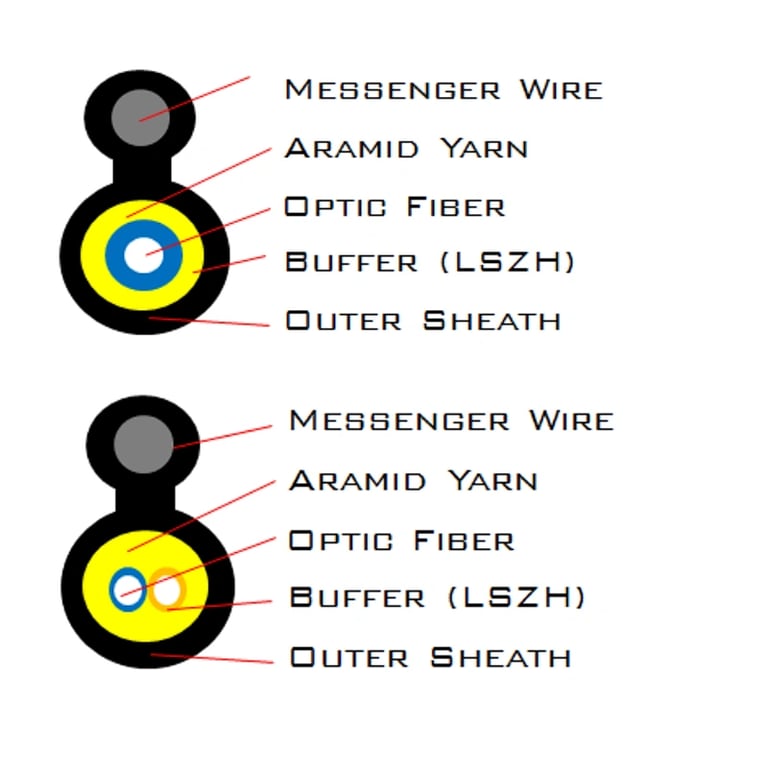

Construction of Fiber Optic Cable

Structure	Material	SPECIFICATIONS
Structure	Material	Aerial Type (1C, 2C)
Optical fiber	Single Mode	G.657A2
Optical fiber	Colored fiber	1F : Blue 2F : Blue, Orange
Messenger Wire	Zinc coated Steel Wire	Φ1.1±0.1
Strength member	Aramid Yarn
Outer sheath	Material	Outdoor LSZH
	Diameter	1F Diameter : 3.0±0.1* 5.8±0.2mm Thickenss : 0.75±0.1mm 2F Diameter : 3.2±0.1*5.9±0.2mm Thickenss(Avr) : 0.55±0.2mm
	Color	Black (Carbon 2.6±0.2%)
Marking(Ink Jet)		White The marking is printed every 1 meter

Cable Diameter & Construction Details

Fiber Count	Outer Diameter (W * H, mm)	Tensile strength (N)	Weight (NET. Kg/km)
FIG-8 type (Non-metallic) 1F	3.0±0.1* 5.8±0.2mm	1,300 (with Messenger wire) 600 (with Messenger wire)	21
FIG-8 type (Non-metallic) 1F	Diameter : 3.2±0.1*5.9±0.2mm	1,300 (with Messenger wire) 600 (with Messenger wire)	22

Fiber Characteristic (ITU-T G.657A2):

Parameter	Specification
Attenuation coefficient @ 1310 nm @ 1383 nm @ 1550 nm @ 1625 nm	≤ 0.350 dB/km ≤ 0.350 dB/km ≤ 0.215 dB/km ≤ 0.350 dB/km
PMD	≤ 0.06 dB(ps/km1/2 )
cut-off wavelength	≤ 1260 nm
Zero-dispersion wavelength	1300 ~ 1324 nm
Zero-dispersion slope	≤ 0.092 ps/(nm^2.km)
Chromatic dispersion @ 1285 ~ 1625 nm @ 1550 nm	≤ 3.0 ps/(nm^2.km) ≤ 18.0 ps/(nm^2.km)
Mode field diameter @ 1310 nm	8.7 ± 0.5 ㎛
Core/Clad concentricity error	≤ 0.5 ㎛
Cladding diameter	124.6 ± 0.5 ㎛
Cladding non-circularity	≤ 0.5 %
Primary Coating diameter	245 ± 10㎛
Proof test level	100 kpsi, 1%
Attenuation coefficient	Max. from 1310nm to 1625nm	0.35dB/km
	Max. at 1383nm ±3nm	0.35dB/km
	Max. at 1550nm	0.215dB/km
Attenuation with Cable bending Loss	15 mm diameter, 10 turn	1550nm ≤ Δ 0.03 dB/km ↓
