Are All MTP/MPO Connectors Created Equal?

In the world of high-density fiber optics, MTP/MPO connectors have become the go-to solution for data centers, 5G networks, and hyperscale cloud infrastructures. Their ability to consolidate dozens of fibers into a single interface has revolutionized cabling efficiency. However, as demand grows, a critical question arises: Are all MTP/MPO connectors truly interchangeable, or do hidden differences impact performance? The answer lies in the nuances of design, manufacturing tolerances, and industry standards—factors that can make or break network reliability.

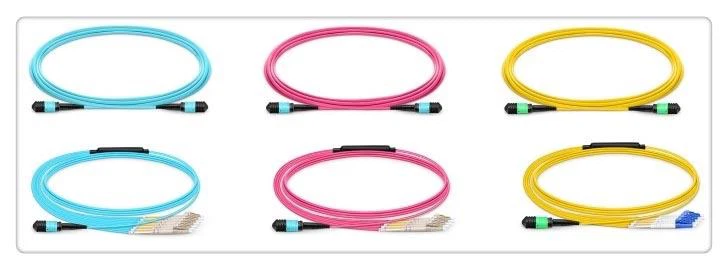

Are All MTP/MPO Connectors Created Equal?




The Myth of Universality: Standards vs. Reality



MTP/MPO connectors are governed by international standards like IEC 61754-7 and TIA-604-5, which define physical dimensions, polarity configurations, and performance criteria. While these guidelines aim for uniformity, real-world production reveals variances across manufacturers. For example:



  • Ferrule Precision: The alignment of fibers within the ferrule (typically ±0.5μm tolerance) affects insertion loss (IL). Even minor deviations can degrade signal integrity.

  • Guide Pin Material: Stainless steel vs. phosphor bronze pins impact durability and mating cycles.

  • Housing Design: Variations in latch mechanisms or boot strain reliefs can cause compatibility issues.

A 2022 study by Lightwave found that mismatched MTP/MPO connectors from different vendors increased IL by up to 0.3 dB—enough to fail stringent 400G/800G network specs.




Key Factors That Differentiate MTP/MPO Connectors



1. Tolerances and Precision Engineering

High-performance connectors from brands like US Conec or Senko use ultra-precise molding and polishing techniques to ensure ferrule flatness <0.1μm. Cheaper alternatives may cut corners, leading to air gaps or misalignment during mating.



2. Polarity and Pin Alignment

MTP/MPO systems rely on precise pin-and-socket alignment (Type A/B/C polarity). Incompatible designs—such as angled vs. flat ferrules or mismatched keying—can cause physical damage or signal loss.



3. Material Quality

  • Ferrules: Premium zirconia ceramic resists wear, while lower-grade materials degrade after repeated mating cycles.

  • Housings: Thermoplastic vs. metal-reinforced housings affect heat resistance and mechanical stability.

  •

4. Compliance with Evolving Standards

Emerging technologies like Co-Packaged Optics (CPO) demand tighter tolerances. Not all vendors invest in R&D to keep pace, leaving older designs obsolete.

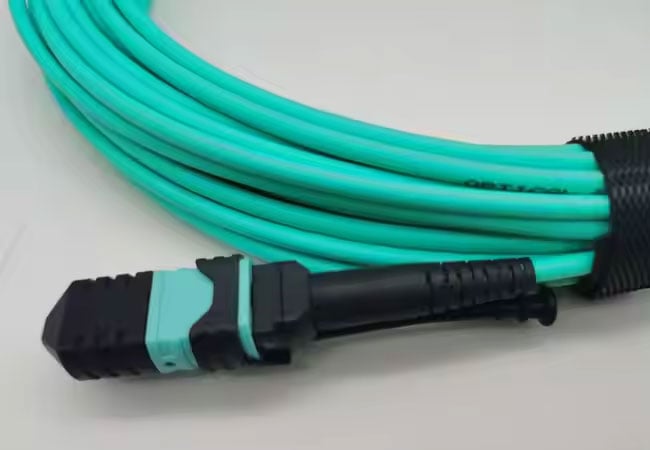

Are All MTP/MPO Connectors Created Equal?




The Cost of Interoperability Failures



Mixing non-compliant connectors can lead to:

  1. 1. Increased Latency: Signal retries due to high IL/RL (Return Loss).

  2. 2. Downtime: Physical mismatches requiring manual troubleshooting.

  3. 3. quipment Damage: Bent pins or cracked ferrules from forced mating.

4. Case Study: A European cloud provider reported a 12-hour outage when generic MTP connectors failed to seat properly with their Cisco Nexus switches, triggering CRC errors. Post-analysis revealed a 0.2mm ferrule height mismatch.




How to Ensure Compatibility: Best Practices

  1. 1. Stick to Certified Vendors:

    • Choose manufacturers certified by GR-1435-CORE or IEC 61753-1 for guaranteed performance.

    • Leading brands: US Conec, Senko, TE Connectivity, Sumitomo.

    •
  2. 2. Test Cross-Vendor Compatibility:

    • Use IL/RL testers (e.g., Viavi OLTS) to validate connections between different brands.

    • Conduct “plug-and-pray” stress tests with 500+ mating cycles.

    •
  3. 3. Standardize Polarity Schemes:

    • Adopt a uniform polarity (e.g., Type B for duplex applications) across all infrastructure.

  4. Leverage Pre-Terminated Solutions:

    • Factory-terminated cables from a single vendor minimize variability.

    •

The Role of Industry Certifications

Certifications like UL 4996 (for MPO connectors) and ISO 9001 (quality management) provide assurance, but gaps remain. For mission-critical networks, insist on:

  • End-to-End System Testing: Vendor-agnostic validation in live environments.

  • Interoperability Reports: Documentation proving compatibility with major OEMs (e.g., Juniper, Arista).

  •

The Future: Toward True Plug-and-Play?

Efforts like the Multi-Source Agreement (MSA) aim to tighten tolerances and unify designs. Innovations such as self-cleaning ferrules and AI-driven alignment systems may eventually eliminate compatibility headaches. Until then, caveat emptor: not all MTP/MPO connectors are created equal.




Conclusion: Buyer Beware

While MTP/MPO connectors offer unparalleled density and speed, their interoperability hinges on meticulous design and manufacturing. For enterprises, the stakes are too high to gamble on uncertified or off-brand components. Always validate compatibility, prioritize certified vendors, and plan for future-proof scalability.
