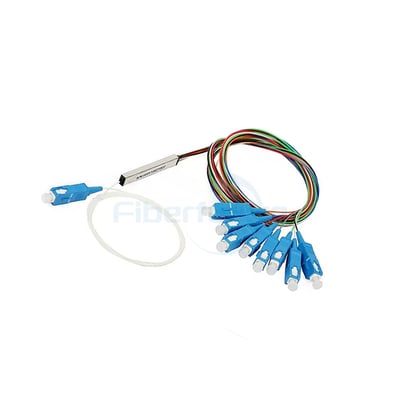

Planar lightwave circuit splitter (PLC splitter) is a planar waveguide integrated optical device that supports a broad wavelength range of 1260nm to 1650nm. This includes the 1310nm, 1490nm, and 1550nm wavelengths used in EPON technology. It's particularly suited for EPON Ethernet Passive Optical Network (PON) access technology, making it ideal for FTTP fiber network systems and broadband Passive Optical Splitters (POS).
Applications
FTTx Systems
Digital, Hybrid, and AM-Video Systems
LAN, WAN, and Metro Networks
CATV Systems
Other Fiber Optic System Applications
Features
Low insertion loss
Low polarization-dependent loss (PDL)
Uniform power splitting
High reliability
Excellent environmental stability
Compact size
Various packaging options
Product Parameters
|
Parameter/Type |
Nx2(N=1or2) |
Nx4(N=1or2) |
Nx8(N=1or2) |
Nx16(N=1or2) |
Nx32(N=1or2) |
Nx64(N=1or2) |
|
Fiber |
9/125 um SMF-28e or Customer Appoint |
|||||
|
Operating Wavelength(nm) |
1260~1650(nm) |
|||||
|
Insertion Loss |
≤3.9dB |
≤7.1dB |
≤10.3dB |
≤13.3dB |
≤16.3dB |
≤19.8dB |
|
Loss Uniformity(dB) |
≤0.6dB |
≤0.6dB |
≤0.8dB |
≤1.2dB |
≤1.5dB |
≤2.0dB |
|
Polariation Dependent Loss |
≤0.15dB |
≤0.15dB |
≤0.2dB |
≤0.2dB |
≤0.2dB |
≤0.3dB |
|
Return Loss |
UPC≥50dB APC≥60dB |
|||||
|
Directivity |
≥55dB |
|||||
|
Working Temperature(℃) |
-40°C to +85°C |
|||||
