MTP/MPO vs. Traditional LC/SC Connectors: Which Offers Better Scalability for Modern Networks?

As networks evolve to support bandwidth-hungry applications like AI, cloud computing, and 5G, the demand for scalable, high-density fiber optic infrastructure has skyrocketed. Two connector types dominate the conversation: MTP/MPO Patch Cord/Cable (Multi-Fiber Push-On/Pull-Off) and traditional LC/SC (Lucent Connector/Subscriber Connector) connectors. While LC and SC have long been the backbone of fiber networks, MTP/MPO systems are increasingly favored for modern high-speed deployments. But which solution truly delivers better scalability? Let’s dive into the pros, cons, and real-world applications of each.



MTP/MPO vs. Traditional LC/SC Connectors: Which Offers Better Scalability for Modern Networks?




The Scalability Challenge in Modern Networks



Scalability in fiber optics hinges on three factors:

  1. 1. Port Density: How many fibers can be packed into a limited space.

  2. 2. Deployment Speed: How quickly connections can be installed or upgraded.

  3. 3. Future-Proofing: Compatibility with next-gen technologies (e.g., 400G, 800G, CPO).

Traditional LC/SC connectors, designed for single-fiber connections, face mounting pressure as networks demand exponentially more bandwidth. Enter MTP/MPO connectors, which consolidate 12, 24, or even 72 fibers into a single interface. But is bigger always better?

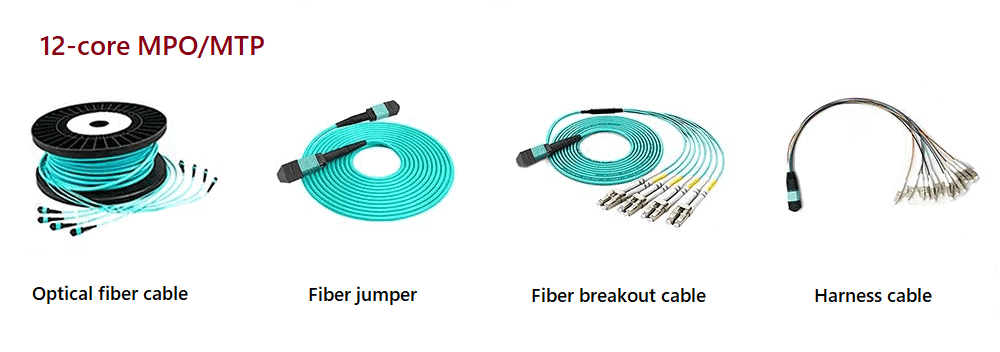

MTP/MPO: The High-Density Powerhouse



Advantages for Scalability:

  1. 1. Space Efficiency:

    • A single MTP/MPO connector replaces 12–24 LC/SC connectors, reducing rack space by up to 75%. This is critical for dense environments like hyperscale data centers or 5G fronthaul hubs.

  2. 2. Plug-and-Play Deployment:

    • Pre-terminated MTP/MPO trunk cables enable rapid installation. For example, deploying a 144-fiber backbone takes minutes versus hours with LC/SC.

  3. 3. Support for High-Speed Standards:

    • MTP/MPO is the backbone of 400G/800G Ethernet (e.g., IEEE 802.3bs/cd) using parallel optics. Multi-fiber links simplify upgrades without rewiring.

    •

Challenges:

  • 1. Complex Fiber Management: Multi-fiber bundles require meticulous cable organization.

  • 2. Higher Initial Cost: MTP/MPO components (e.g., cassettes, polarity modules) add complexity.

  • 3. Cleaning and Maintenance: Contamination on one ferrule can affect multiple fibers.

  •

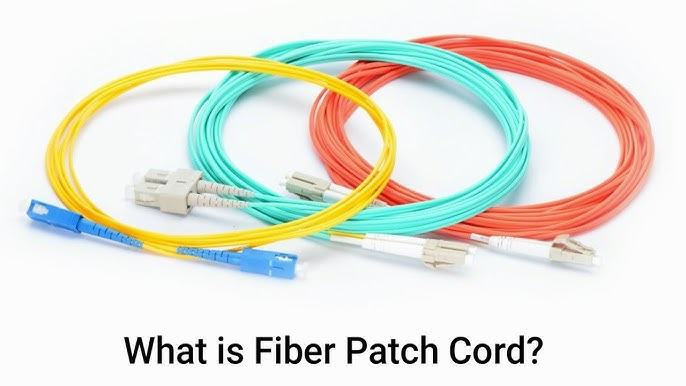

LC/SC: The Tried-and-True Workhorse

Advantages for Scalability:

  1. Flexibility in Small-Scale Deployments:

    • LC/SC connectors excel in scenarios requiring incremental upgrades, such as enterprise networks or legacy systems.

  2. Lower Entry Cost:

    • LC/SC hardware (Fiber Optic Patch Panels, adapters) is widely available and cost-effective for low-fiber-count applications.

  3. Ease of Troubleshooting:

    • Single-fiber connections simplify fault isolation and testing.



MTP/MPO vs. Traditional LC/SC Connectors: Which Offers Better Scalability for Modern Networks?



Limitations:

  • 1. Space Constraints: Scaling to 400G/800G with LC/SC requires bulky breakout cables, increasing clutter.

  • 2. Labor-Intensive Upgrades: Adding capacity means manually installing dozens of connectors.

  • 3. Limited Future-Proofing: LC/SC struggles with emerging multi-lane standards like 400G-SR8.

  •

Head-to-Head: Key Scalability Factors

Factor MTP/MPO LC/SC
Port Density ⭐⭐⭐⭐⭐ (Supports 72+ fibers in 1U) ⭐⭐ (1–2 fibers per port)
Deployment Speed ⭐⭐⭐⭐ (Pre-terminated systems) ⭐⭐ (Time-consuming terminations)
Upgrade Flexibility ⭐⭐⭐⭐⭐ (Parallel optics for 400G/800G) ⭐⭐ (Requires complex breakout solutions)
Cost at Scale ⭐⭐⭐ (Lower long-term TCO) ⭐⭐ (Higher labor and hardware costs)
Ease of Maintenance ⭐⭐ (Specialized tools required) ⭐⭐⭐⭐ (Simpler cleaning/testing)



Real-World Applications: Where Each Shines



  • MTP/MPO Dominates:

  •

    • 1. Hyperscale Data Centers: Facebook’s Altoona facility uses MTP/MPO to support 100G–800G interconnects.

    • 2. 5G Mobile Fronthaul: SK Telecom leverages MTP/MPO for flexible, high-capacity backhaul links.

    • 3. I/ML Clusters: NVIDIA’s DGX systems rely on MTP/MPO for low-latency GPU-to-GPU communication.

    •
  • LC/SC Still Relevant:

    • 1. Enterprise Networks: Small offices with limited fiber counts.

    • 2. FTTH (Fiber-to-the-Home): Single-fiber SC connectors for last-mile connectivity.

    • 3. Legacy Systems: Retrofitting older infrastructure without overhauling cable management.

    •

The Verdict: Scalability Depends on Context

For large-scale, high-speed networks (data centers, 5G, AI/ML), MTP/MPO is unmatched in scalability. Its density and future-ready design align with the trajectory of network demands. However, LC/SC remains a pragmatic choice for smaller deployments or environments prioritizing simplicity and cost control.



The Bottom Line:

  • Choose MTP/MPO if you’re building for 400G+, need rapid deployment, or operate in space-constrained environments.

  • Opt for LC/SC if your network is modest in scale, requires minimal upgrades, or integrates with legacy systems.

As terabit-era networks loom, MTP/MPO is poised to become the default—but LC/SC isn’t disappearing anytime soon. The key is aligning your choice with both current needs and tomorrow’s ambitions.
