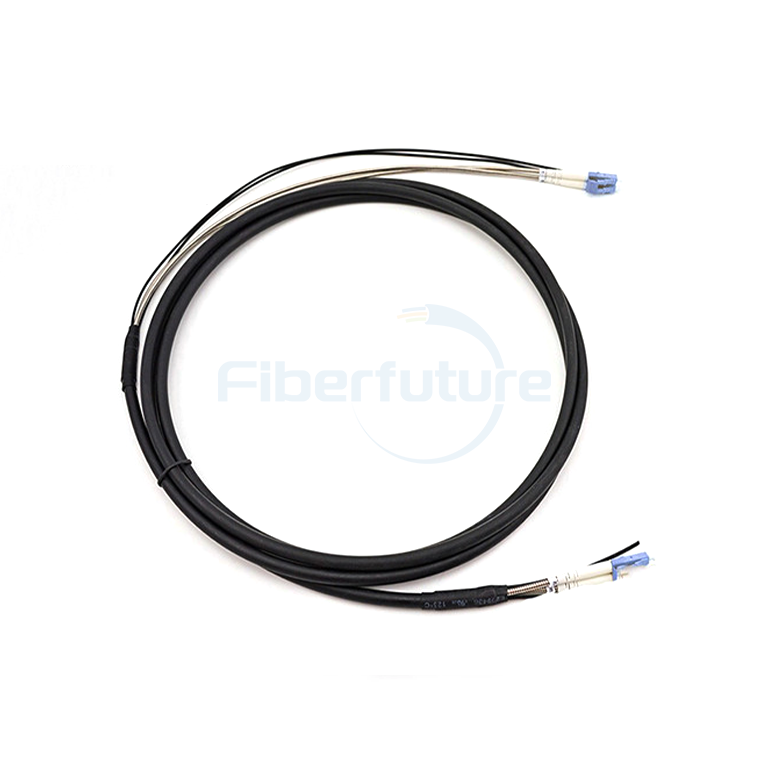

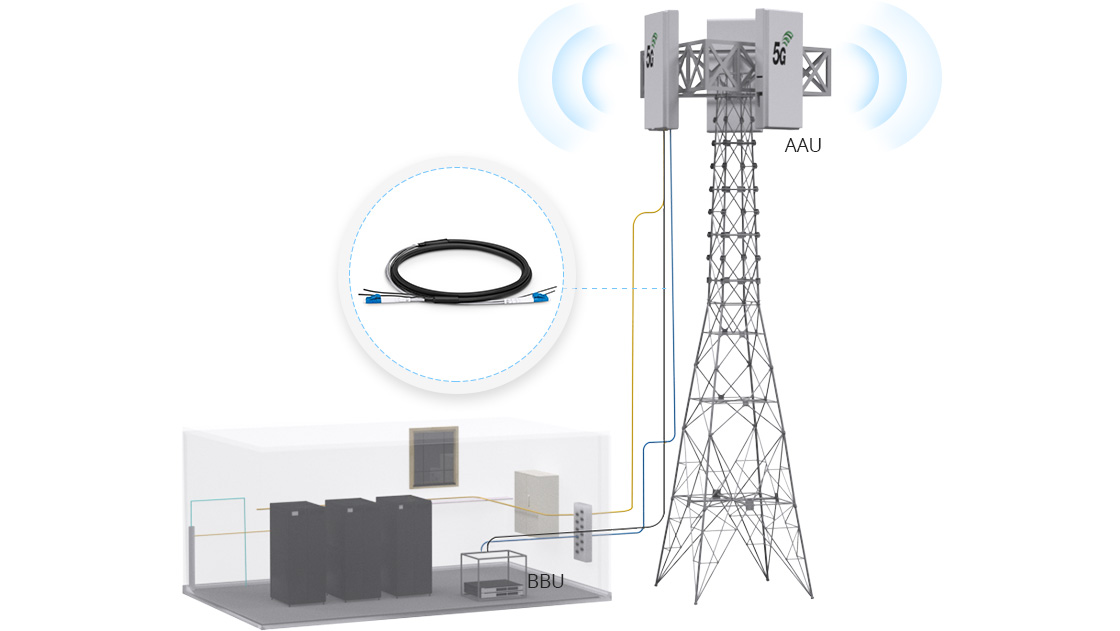

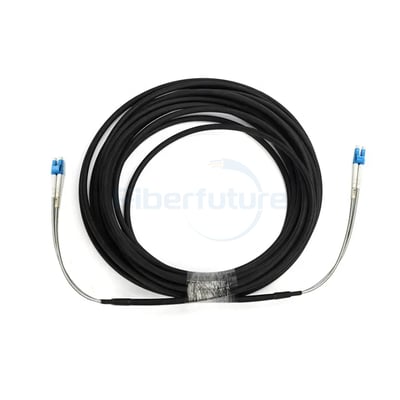

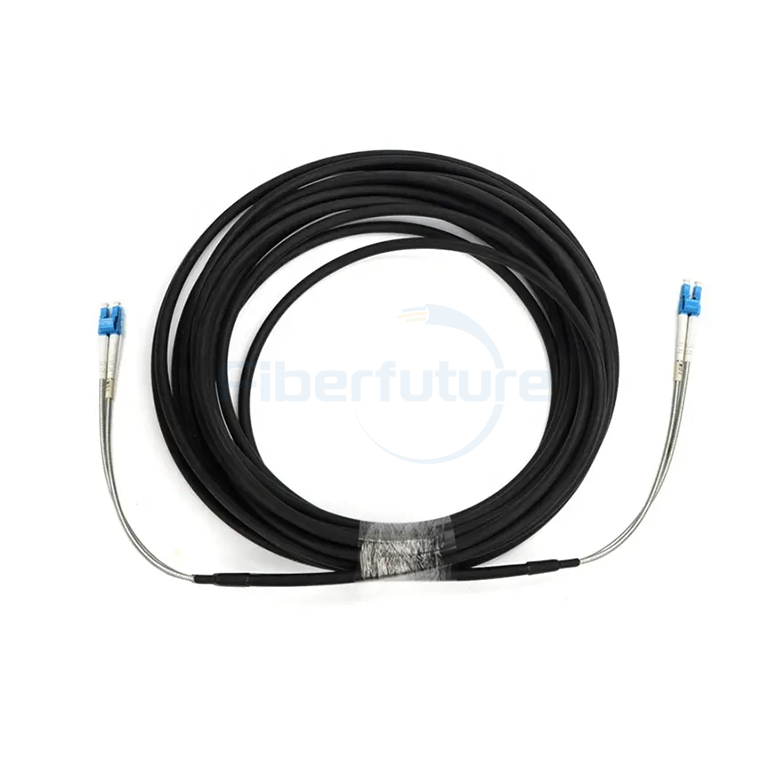

CPRI cables, equipped with standard duplex LC connectors, are designed for fiber-to-the-antenna (FTTA) connections in both current 4G/LTE and 5G networks. These cords are utilized to link active antenna units (AAUs) and remote radio units (RRUs) within base station structures, and they are suitable for both indoor and outdoor horizontal and vertical wiring configurations.
The CPRI patch cords feature a low-smoke, halogen-free jacket that offers protection against UV radiation and chemical corrosion, making them ideal for use in challenging outdoor environments. The hard armored tubing of the FTTA CPRI patch cords ensures enhanced stability and increased tensile strength. These cords boast exceptional compressive strength and good flexibility, making them well-suited for demanding outdoor applications.
Designed with high reliability in mind, these FTTA CPRI patch cords help reduce long-term operational and maintenance costs, ensuring smooth connectivity in even the harshest conditions.
Product Parameters
|
Type |
SM-UPC |
SM-APC |
MM-UPC |
|||
|
Typical |
MAX |
Typical |
MAX |
Typical |
MAX |
|
|
Insertion loss |
≤0.1 |
≤0.3dB |
≤0.15 |
≤0.3dB |
≤0.05 |
≤0.3dB |
|
Return loss |
≥50dB |
≥60dB |
≥30dB |
|||
|
Durability |
500 mating cycles |
|||||
|
Working temperature |
-40 to + 85℃ |
|||||
