Multi Purpose Outdoor Cable Assembly CPRI LC CPRI SC

FIBERFUTURE multi purpose CPRI LC to CPRI SC outdoor cable assembly is a robust, weather-resistant cable designed for external telecommunications applications. It connects radio units with fiber optic links using LC and SC connectors, ensuring reliable data transmission in outdoor environments.

Send Email

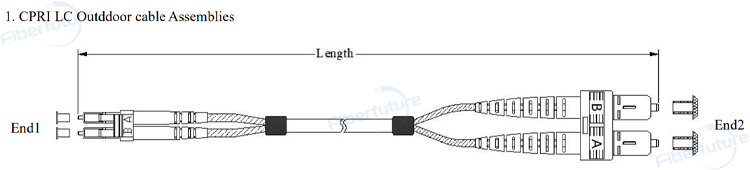

Dimensional Diagram

Multi Purpose Outdoor Cable Assembly CPRI LC CPRI SC

Applications

Multi-purpose outdoor use.
Ideal for connecting distribution boxes to Remote Radio Heads (RRHs).
Specifically suited for deployment in cell tower Remote Radio Head applications.

Features

Easily Expandable: Allows for simple installation of jumper cables for future expansion.
Low Loss Performance: Ensures minimal insertion and added loss for optimal signal integrity.
High Attenuation Resistance: Offers excellent resistance to signal attenuation over distances.
Highly Flexible: Features a small bending radius and superior cable routing properties for easy handling.
Superior End-Face Quality: Exceeds IEC and Telcordia standards for end-face geometry and quality.
All-Weather Durability: Constructed from materials that are weatherproof and UV-resistant.
Compliant Mechanical Standards: Meets IEC 61754-20 and IEC 61754-4 mechanical performance standards.
Environmentally Friendly: Complies with RoHS and REACH regulations for material safety and sustainability.

Jumper Tolerance Requirement

Overall length (L) (M)	Length of tolerance (CM)
0＜L≤20	+10/-0
20＜L≤40	+15/-0
L＞40	+0.5%L/-0

Order Information

A Connector		FC, SC, LC, ST, MU, DIN, D4, E2000, LX.5......
B Connector		FC, SC, LC, ST, MU, DIN, D4, E2000, LX.5......
Fiber Model	SM	G652D, G657A1, G657A2, G657B3, G655
	MM	OM1, OM2, OM3-150, OM3-300, OM4-550, OM5
Core Number		DX, 4 Core and multi-core
Cable Dia		4.8mm, 7.0mm, 8.3mm......
Length		1, 2, 3, 5, 10m...... (or Customized）	Breakout Length: 0.03/0.34m (or Customized)

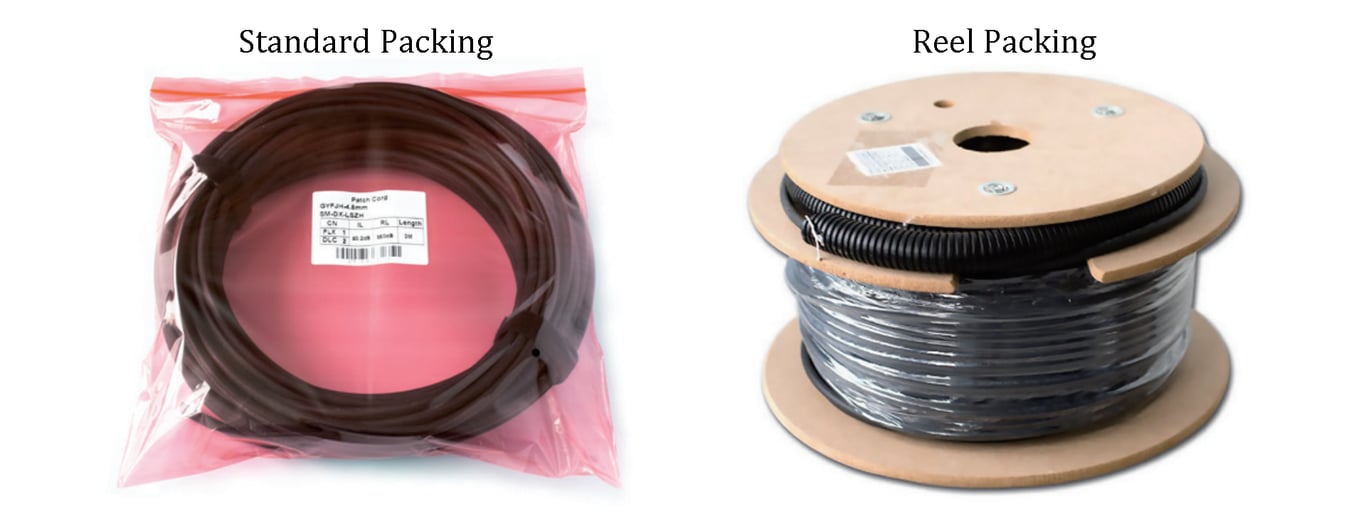

Packing		Standard Packing, and Reel Packing
