Mini IP

Mini IP (LC, SC, MPO)

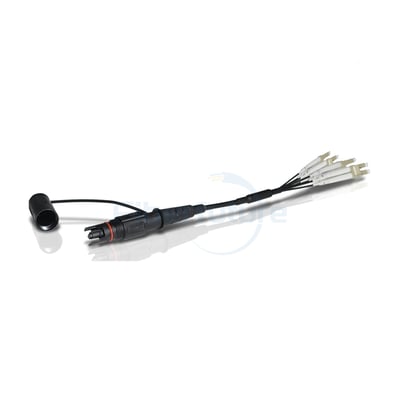

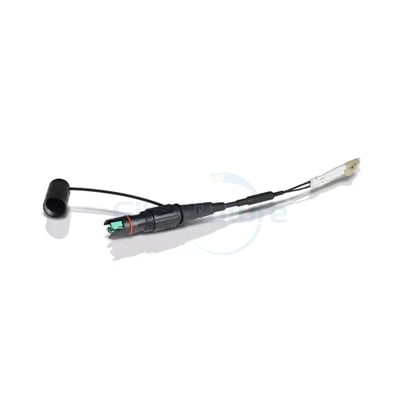

FTTA outdoor IP68 waterproof mini IP LC fiber optic patch cord features a compact design with a robust IP68-rated housing for reliable outdoor connectivity. It supports single mode and multimode fibers, offers low insertion loss, and is compatible with standard LC adaptors. Ideal for harsh environments, it ensures secure and durable fiber-optic transmission.

FTTA Outdoor IP68 Waterproof Mini IP LC Fiber Optic Patch Cord

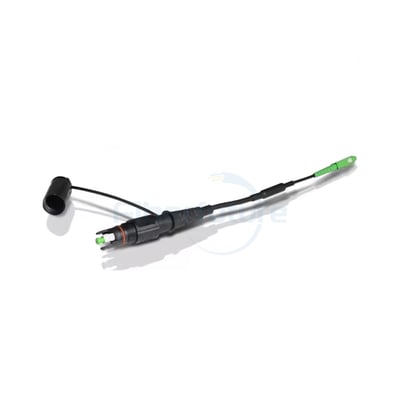

Factory-supplied mini IP SC outer cable is RoHS compliant, featuring low insertion loss and high attenuation. It is IP68-rated for water, dust, and corrosion resistance, with all-weather and UV-resistant materials. Ideal for outdoor applications, it meets IEC 61754-4 mechanical performance standards.

Factory Supply Mini IP SC Outer Cable RoHS Compliant
Mini IP MPO MTP fiber optic patch cable is REACH materials compliant, featuring IP68-rated water and dust protection. It supports low insertion loss and high attenuation, with all-weather and UV-resistant materials, meeting IEC 61754-7 mechanical performance standards.

Mini IP MPO MTP Fiber Optic Patch Cable REACH Materials Compliant

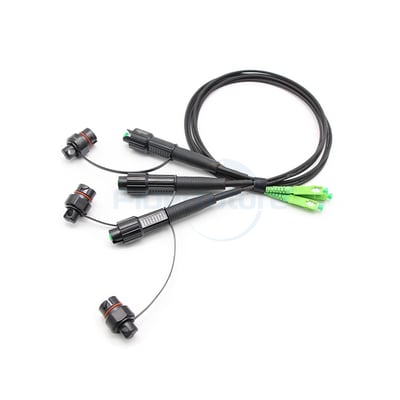

Mini IP SC APC-SC APC SM 3.0mm waterproof patch cord uses a 3.0mm round drop cable, offering strong tensile resistance. The Huawei connector features an SC/APC type in a sealed, threaded polymer housing, enabling simple connections. It plugs directly into optical termination boxes without opening, providing robust, sealed, and waterproof links ideal for FTTH applications.

Mini IP SC/APC-SC/APC SM 3.0mm Waterproof Patch Cord

Applications:

Fiber to the Home (FTTH): Ideal for last-mile connections to residences.
Outdoor Areas: Suitable for aerial, underground, and duct installations.
Harsh Environments: Robust enough for industrial settings with extreme conditions.

Features:

Moisture and Dust Protection: Ensures reliability in harsh industrial environments.
IP68 Rated: Salt-mist, humidity, fog, and dust-proof for maximum protection.
Reduced Field Splicing: Predetermined low-loss waterproof connectors minimize on-site splicing.
Traditional Installation Techniques: Compatible with standard aerial, underground, and duct installation methods.
100% Optical Testing: Ensures high-quality assembly and optimal performance.

Type	SM-UPC		SM-APC		MM-UPC
	Typical	MAX	Typical	MAX	Typical	MAX
Insertion loss	≤0.1	≤0.3dB	≤0.15	≤0.3dB	≤0.05	≤0.3dB
Return loss	≥50dB		≥60dB		≥30dB
Durability	500 mating cycles
Working temperature	-40 to + 85℃

FAQs of Mini IP Patch Cord

Q

Are you the real fiber patch cable manufacturer?

A

Yes. FIBERFUTURE not only provides general fiber patch cords, but also special patch cables such as CPRI, FullAXs, IPFX, ODVA connectors types.
Q

What is your MOQ?

A

Stocked model 1km above Custom length/structure/materials, MOQ 2km-10km
Q

Can I have a custom cable designed and sample order?

A

We provide customizable design service for all clients. MOQ of sample order is subject to the specific design.
Q

How long is your delivery time?

A

5-10 days if the goods are in stock. 2-3 weeks if the goods are not in stock, mostly depends on quantity and production plan.
Q

What is your terms of payment?

A

We accept T/T, L/C, etc, 30% Deposit and 70% before shipment. Small order is 100% of full price in advance.
