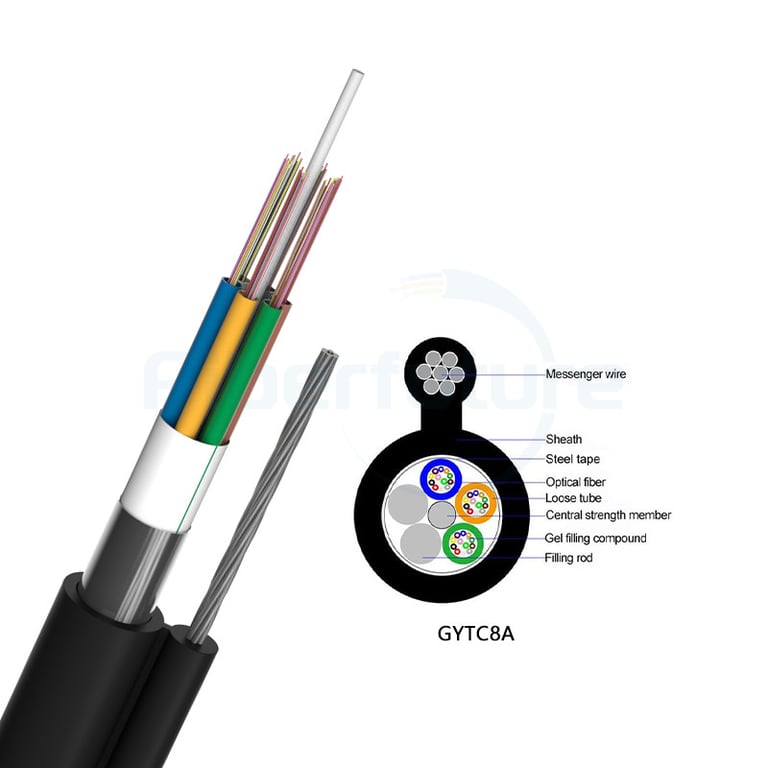

FIBERFUTURE® GYTC8A/S cable, single-mode/multimode fibers are positioned in the loose tubes, while the loose tubes strand together around metallic central strength member into a compact and circular cable core, and the water-blocking materials are distributed into interstices of it. After a APL is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a PE sheath to be a figure-8 structure.
| Fiber Count | |
|---|---|
| Fiber Type |
| 01 - Blue | 02 - Orange | 03 - Green |
| 04 - Brown | 05 - Slate | 06 - White |
| 07 - Red | 08 - Black | 09 - Yellow |
| 10 - Violet | 11 - Pink | 12 - Aqua |
|
G.652 |
G.655 |
50/125μm |
62.5/125μm |
||
|
Attenuation (+20℃) |
@850nm |
|
|
≤3.0 dB/km |
≤3.0 dB/km |
|
@1300nm |
|
|
≤1.0 dB/km |
≤1.0 dB/km |
|
|
@1310nm |
≤0.36 dB/km |
≤0.40 dB/km |
|
|
|
|
@1550nm |
≤0.22 dB/km |
≤0.23dB/km |
|
|
|
|
Bandwidth (Class A) |
@850nm |
|
|
≥500 MHz·km |
≥200 MHz·km |
|
@1300nm |
|
|
≥1000 MHz·km |
≥600 MHz·km |
|
|
Numerical Aperture |
|
|
0.200±0.015NA |
0.275±0.015NA |
|
|
Cable Cut-off Wavelength |
≤1260nm |
≤1480nm |
|
||
| iber count | Cablediameter(mm) | Messenger diameter(mm) | Cableheight(mm) | Cableweight(kg/km) | Tension(N) | Crush(N/100mm) | Bending radius(mm) | |||
| Long term | Short term | Long term | Short term | static | Dynamic | |||||
| 2~30 | 9.5 | 5.0 | 16.5 | 155 | 3000 | 6000 | 1000 | 3000 | 10D | 20D |
| 32~36 | 9.8 | 5.0 | 16.8 | 170 | 3000 | 6000 | 1000 | 3000 | 10D | 20D |
| 38~60 | 10 | 5.0 | 17.0 | 180 | 3000 | 6000 | 1000 | 3000 | 10D | 20D |
| 62~72 | 10.5 | 5.0 | 17.5 | 198 | 3000 | 6000 | 1000 | 3000 | 10D | 20D |
| 74~96 | 12.5 | 5.0 | 19.5 | 265 | 3000 | 6000 | 1000 | 3000 | 10D | 20D |
| 78~120 | 14.5 | 5.0 | 21.5 | 320 | 3000 | 6000 | 1000 | 3000 | 10D | 20D |
| 122~144 | 16.5 | 5.0 | 23.5 | 385 | 3000 | 6000 | 1000 | 3000 | 10D | 20D |
1. Cable bending radius: 15 x cable diameter (static)
2. 25 x cable diameter (dynamic)
3. Application temperature range
| Operating temperature range | : -40oC to +70oC |
| Storage / Transport temperature range | : -40oC to +70oC |
| Installation temperature range | : -10oC to +50oC |
| S/N | Item | Test Method | Acceptance Condition |
| 1 |
Tensile Strength IEC 794-1-E1 |
- Load: 5.0KN - Length of cable under load: 50 m -Load time: 1min |
- Loss change £ 0.1 dB @1550 nm - No fiber break and no sheath damage. |
| 2 |
Crush Test IEC 794-1-E3 |
- Load: 1.0KN/100mm - Load time: ≥1min. |
- Loss change £ 0.1 dB @1550 nm - No fiber break and no sheath damage. |
| 3 |
Impact Resistance IEC 794-1-E4 |
- Points of impact: 3 -Times of per point: 1 - Impact energy: 4.5 Nm - Radius of hammer head: 12.5mm |
- Loss change £ 0.1 dB @1550 nm - No fiber break and no sheath damage. |
| 4 |
Repeated Bending IEC 794-1-E6 |
- Bending radius: 20 x cable diameter - Load: 150 N - Flexing rate: 3 sec/cycle - No. of cycle: 30 |
- Loss change £ 0.1 dB @1550 nm - No fiber break and no sheath damage. |
| 5 |
Torsion IEC 794-1-E7 |
- Length: 1 m - Load: 150 N - Twist rate: 1 min/cycle - Twist angle: ±90° - No. of cycle: 10 |
- Loss change £ 0.1 dB @1550 nm - No fiber break and no sheath damage. |
| 6 |
Water Penetration Test IEC 794-1-F5B |
- Height of water: 1 m - Sample length: 3 m - Test time: 24 hours |
- No water shall have leaked from the opposite end of cable. |
| 7 |
Temperature Cycling Test IEC 794-1-F1 |
- Temperature step: +20oC→-40oC→+70oC →+20oC - Time per each step: 12 hrs - Number of cycle: 2 |
- Loss change £ 0.05 dB/km@1550 nm - No fiber break and no sheath damage. |
| 8 |
Compound Flow IEC 794-1-E14 |
- Sample length: 30 cm - Temp: 70°C ± 2°C - Time: 24 hours |
- No compound flow |
| Cable type |
Length Tolerance |
4km -5% / +5% |
|
| GYTC8A-24 B1.3 |

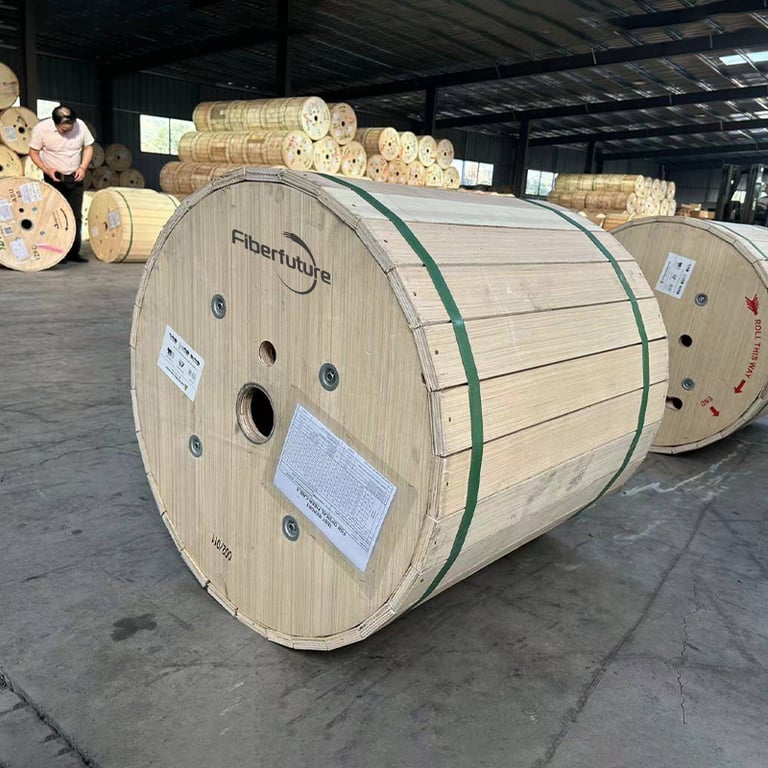

Drum Type Dimensions Weight |
Wood 125*50*75 962kg |
Dimensions including protection. Indicative values, actually delivered drum sizes and weights may deviate. Cable ends sealed with caps
