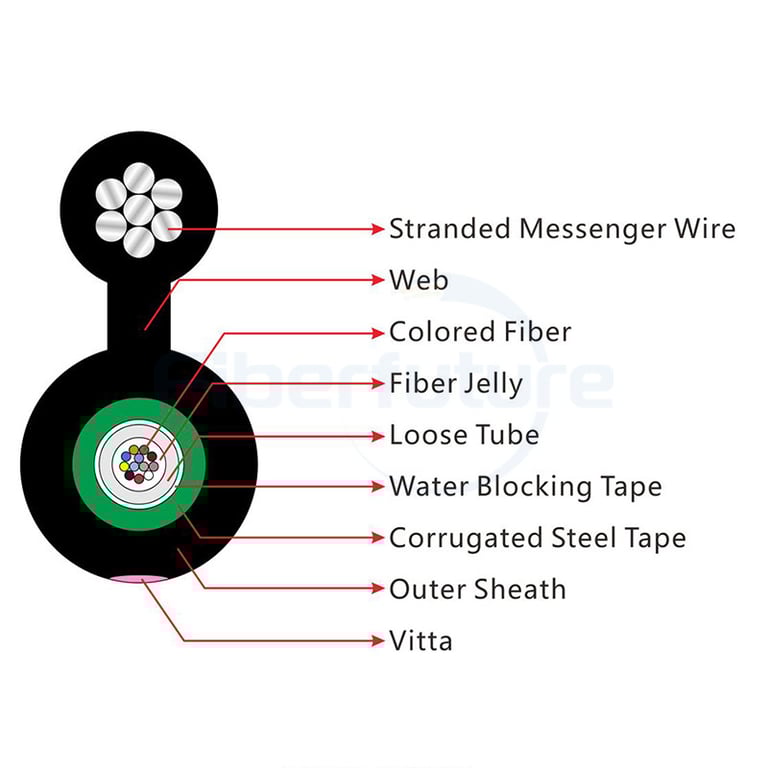

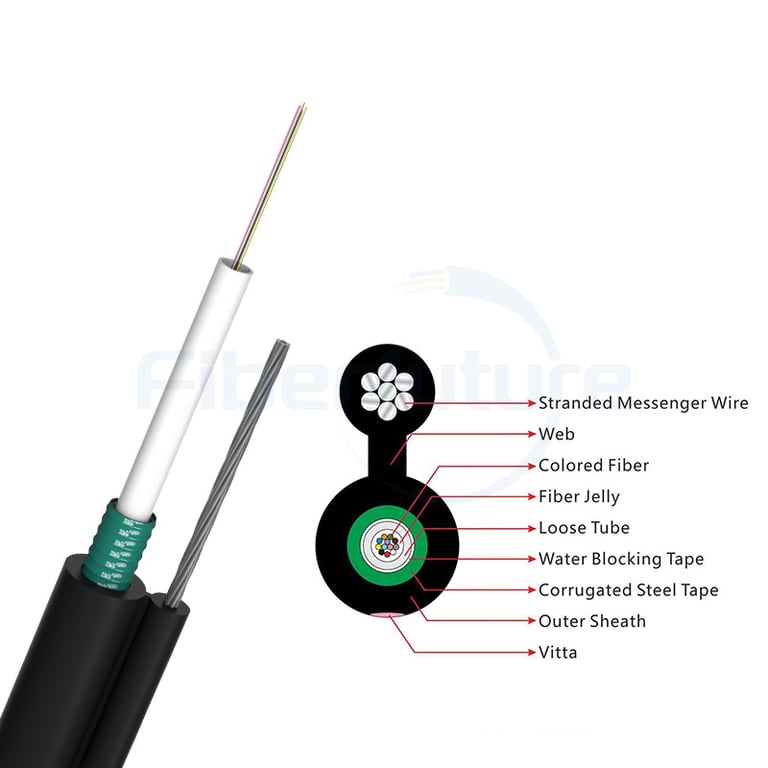

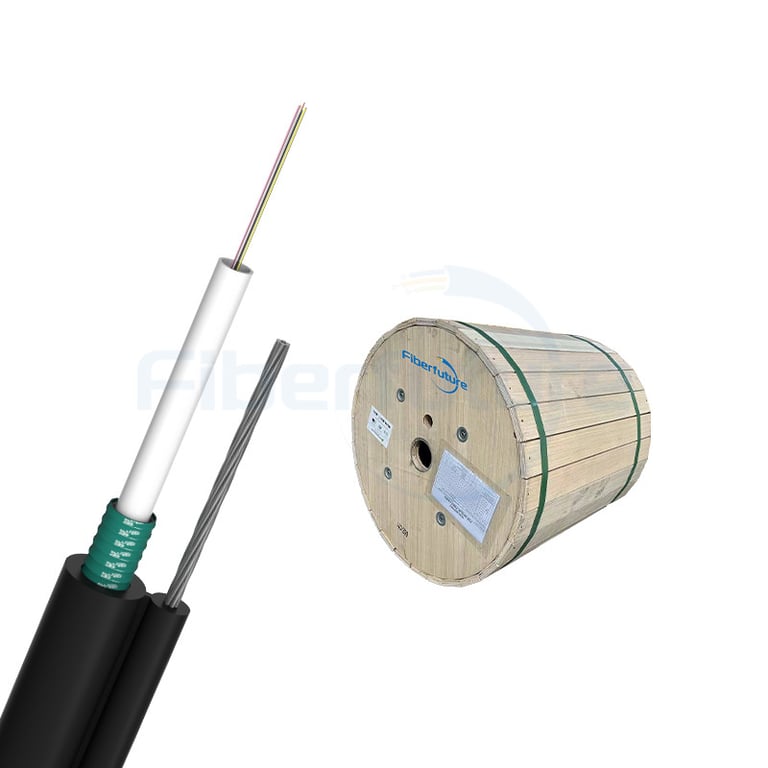

FIBERFUTURE® GYXTC8S cable,single-mode/multimode fibers are positioned in the loose tube, which is made of high modulus plastic materials and filled with filling compound.PSP is longitudinally applied around the loose tube, and water-blocking materials are distributed into interstices of it.Then.this part of cable accompanied with the stranded wires as the supporting part are completed with a PE sheath to be a figure-8 structure.
| Fiber Count | |
|---|---|
| Fiber Type | |
| Strength Member | |
| Outer Sheath |
Aerial, Outdoor
| 01 - Blue | 02 - Orange | 03 - Green |
| 04 - Brown | 05 - Slate | 06 - White |
| 07 - Red | 08 - Black | 09 - Yellow |
| 10 - Violet | 11 - Pink | 12 - Aqua |
|
Cable Type |
Fiber Count | Max.Fiber In Tubes | Cable Weight Kg/Km | Cable Diameter(mm) |
Tension Strength Long/Short Term N |
Crush Resistance Long/Short Term N/100MM |
|
GYXTC8S 2~8
|
2~8 | 8 | 117.0 | 8.1*16.9 | 2000/6000 | 300/1000 |
|
GYXTC8S 10~12
|
10~12 | 12 | 121.0 | 8.3*17.0 | 2000/6000 | 300/1000 |
| S/N | Item | Test Method | Acceptance Condition |
| 1 |
Tensile Strength IEC 794-1-E1 |
- Load: 5.0KN - Length of cable under load: 50 m -Load time: 1min |
- Loss change £ 0.1 dB @1550 nm - No fiber break and no sheath damage. |
| 2 |
Crush Test IEC 794-1-E3 |
- Load: 1.0KN/100mm - Load time: ≥1min. |
- Loss change £ 0.1 dB @1550 nm - No fiber break and no sheath damage. |
| 3 |
Impact Resistance IEC 794-1-E4 |
- Points of impact: 3 -Times of per point: 1 - Impact energy: 4.5 Nm - Radius of hammer head: 12.5mm |
- Loss change £ 0.1 dB @1550 nm - No fiber break and no sheath damage. |
| 4 |
Repeated Bending IEC 794-1-E6 |
- Bending radius: 20 x cable diameter - Load: 150 N - Flexing rate: 3 sec/cycle - No. of cycle: 30 |
- Loss change £ 0.1 dB @1550 nm - No fiber break and no sheath damage. |
| 5 |
Torsion IEC 794-1-E7 |
- Length: 1 m - Load: 150 N - Twist rate: 1 min/cycle - Twist angle: ±90° - No. of cycle: 10 |
- Loss change £ 0.1 dB @1550 nm - No fiber break and no sheath damage. |
| 6 |
Water Penetration Test IEC 794-1-F5B |
- Height of water: 1 m - Sample length: 3 m - Test time: 24 hours |
- No water shall have leaked from the opposite end of cable. |
| 7 |
Temperature Cycling Test IEC 794-1-F1 |
- Temperature step: +20oC→-40oC→+70oC →+20oC - Time per each step: 12 hrs - Number of cycle: 2 |
- Loss change £ 0.05 dB/km@1550 nm - No fiber break and no sheath damage. |
| 8 |
Compound Flow IEC 794-1-E14 |
- Sample length: 30 cm - Temp: 70°C ± 2°C - Time: 24 hours |
- No compound flow |
