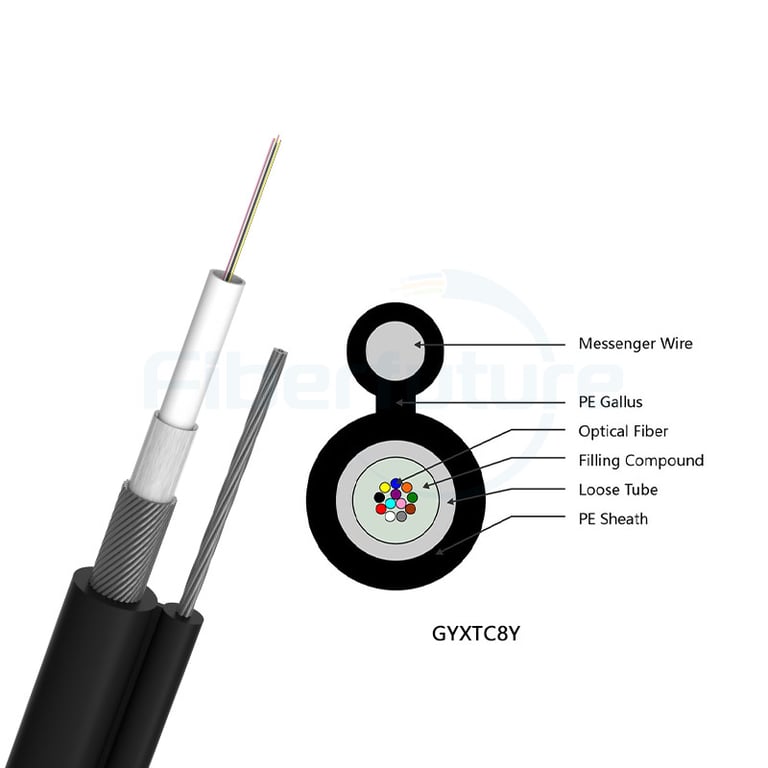

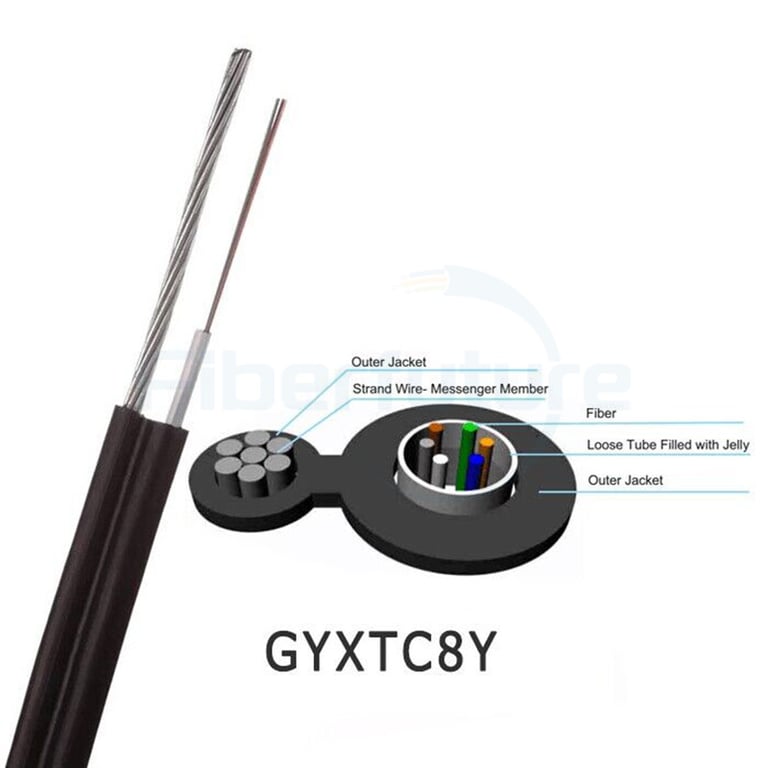

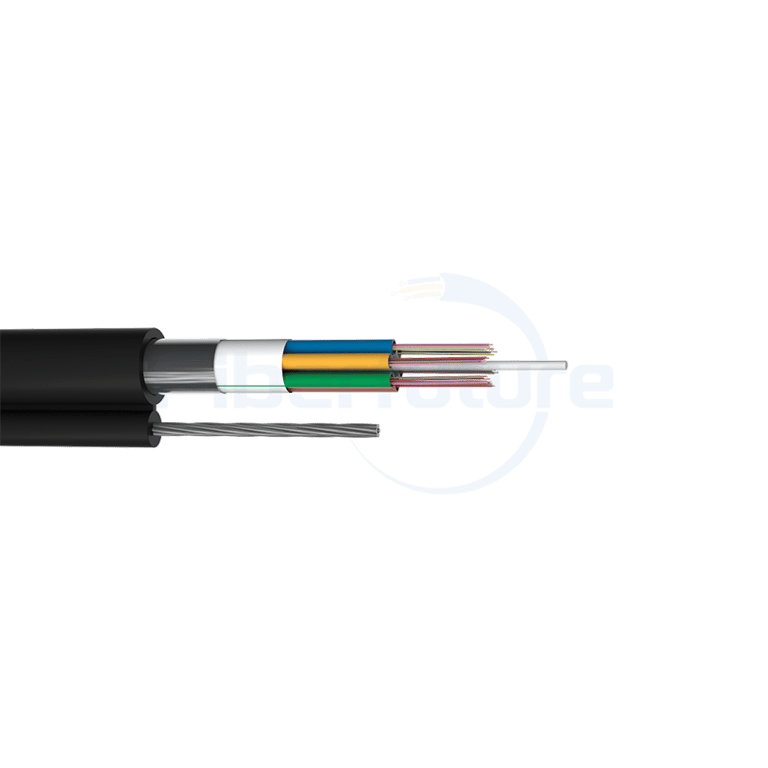

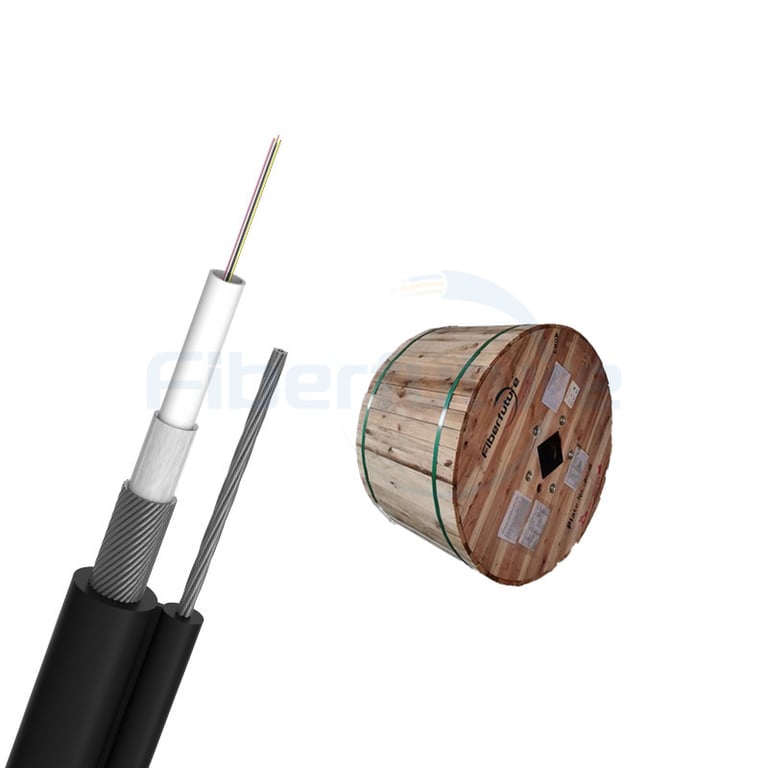

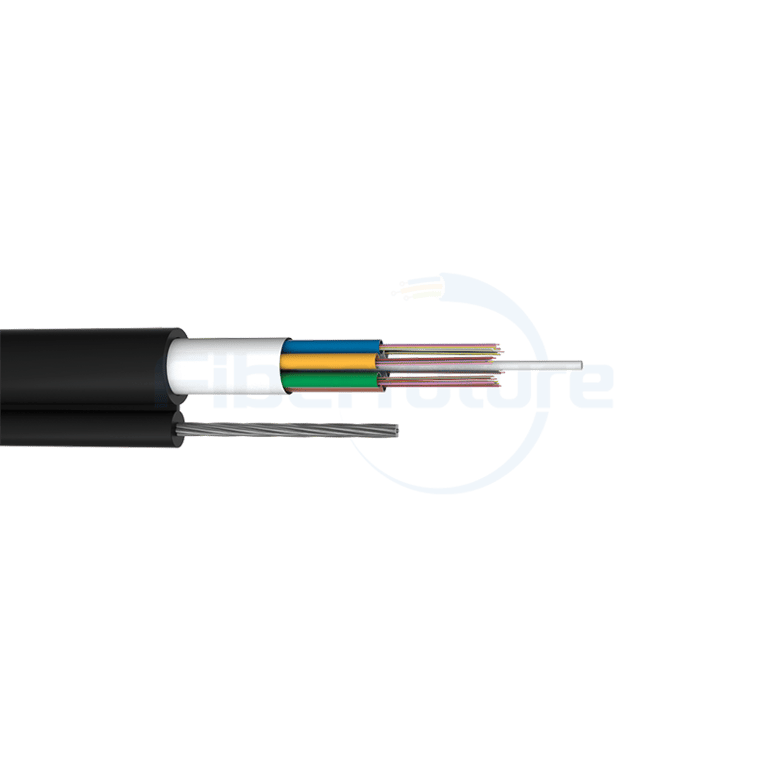

FIBERFUTURE® GYXTC8Y Mini Figure 8 drop Fiber Optic Cable which is an excellent stripping performance of tight buffer fiber Cable, its diameter and bending radius are small. It’s full filling with aramid yarn. It can installation freely in narrow room.This cable consist of the loose tube with single mode or multimode fibers and steel wire as the messenger wire, which are formed like “Figure 8”. After aramid yarn is applied over the inner sheath, the cable is completed with a PE outer sheath.
| Fiber Count | |
|---|---|
| Fiber Type | |
| Strength Member | |
| Outer Sheath |
| 01 - Blue | 02 - Orange | 03 - Green |
| 04 - Brown | 05 - Slate | 06 - White |
| 07 - Red | 08 - Black | 09 - Yellow |
| 10 - Violet | 11 - Pink | 12 - Aqua |
| Fiber count | Outer sheath | Cable dia.(mm) | cable height(mm) | Messenger wire (mm) | cable net weight (kg/km) | strength short term(n) | crush pressure short term (n/100mm) | crush pressure short term(n/100mm) | |
|
2~12
|
PE |
5.4 |
9.5 |
1.6 |
47 |
1000 |
1000 |
1000 |
|
| S/N | Item | Test Method | Acceptance Condition |
| 1 |
Tensile Strength IEC 794-1-E1 |
- Load: 5.0KN - Length of cable under load: 50 m -Load time: 1min |
- Loss change £ 0.1 dB @1550 nm - No fiber break and no sheath damage. |
| 2 |
Crush Test IEC 794-1-E3 |
- Load: 1.0KN/100mm - Load time: ≥1min. |
- Loss change £ 0.1 dB @1550 nm - No fiber break and no sheath damage. |
| 3 |
Impact Resistance IEC 794-1-E4 |
- Points of impact: 3 -Times of per point: 1 - Impact energy: 4.5 Nm - Radius of hammer head: 12.5mm |
- Loss change £ 0.1 dB @1550 nm - No fiber break and no sheath damage. |
| 4 |
Repeated Bending IEC 794-1-E6 |
- Bending radius: 20 x cable diameter - Load: 150 N - Flexing rate: 3 sec/cycle - No. of cycle: 30 |
- Loss change £ 0.1 dB @1550 nm - No fiber break and no sheath damage. |
| 5 |
Torsion IEC 794-1-E7 |
- Length: 1 m - Load: 150 N - Twist rate: 1 min/cycle - Twist angle: ±90° - No. of cycle: 10 |
- Loss change £ 0.1 dB @1550 nm - No fiber break and no sheath damage. |
| 6 |
Water Penetration Test IEC 794-1-F5B |
- Height of water: 1 m - Sample length: 3 m - Test time: 24 hours |
- No water shall have leaked from the opposite end of cable. |
| 7 |
Temperature Cycling Test IEC 794-1-F1 |
- Temperature step: +20oC→-40oC→+70oC →+20oC - Time per each step: 12 hrs - Number of cycle: 2 |
- Loss change £ 0.05 dB/km@1550 nm - No fiber break and no sheath damage. |
| 8 |
Compound Flow IEC 794-1-E14 |
- Sample length: 30 cm - Temp: 70°C ± 2°C - Time: 24 hours |
- No compound flow |
