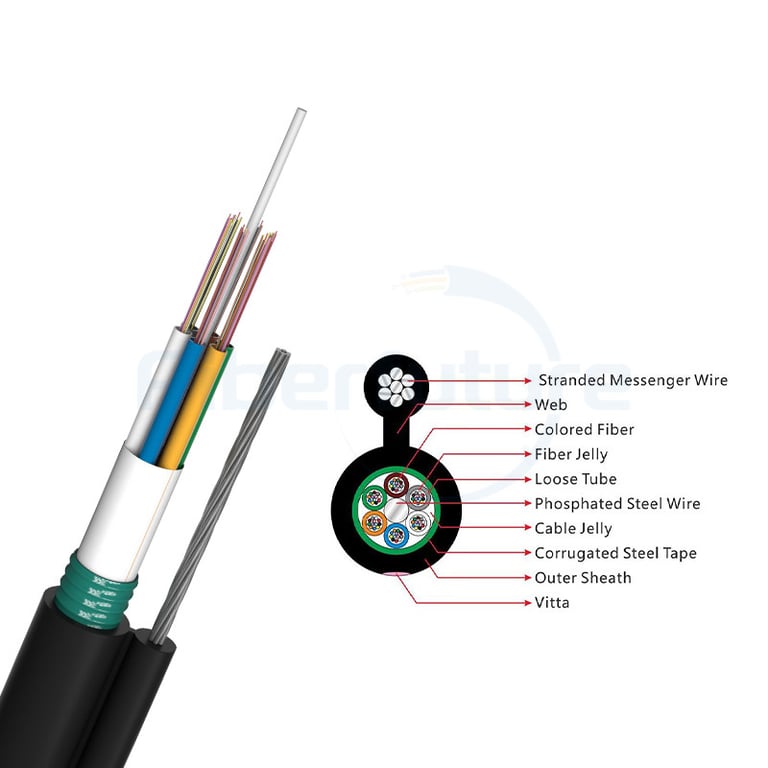

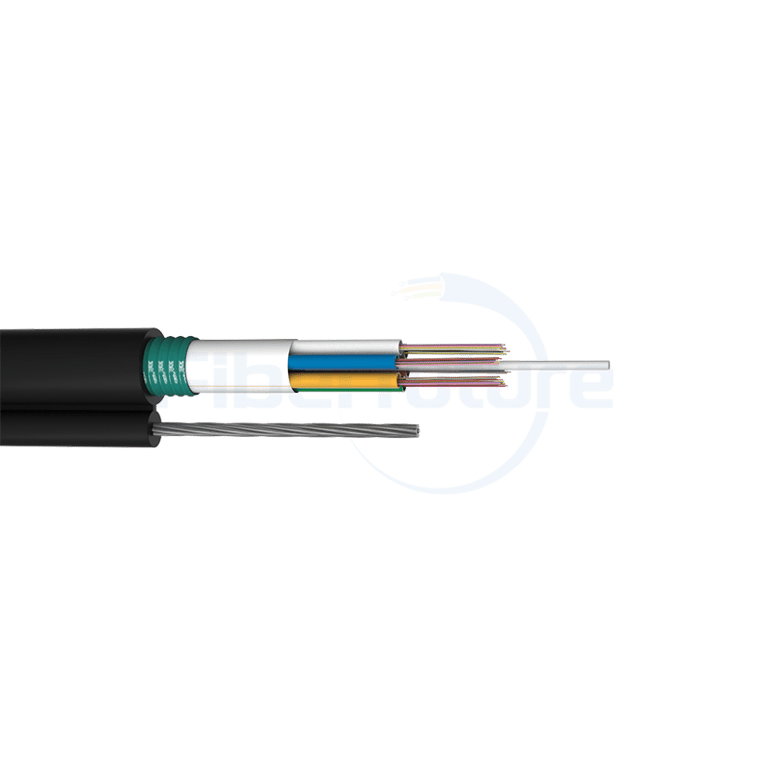

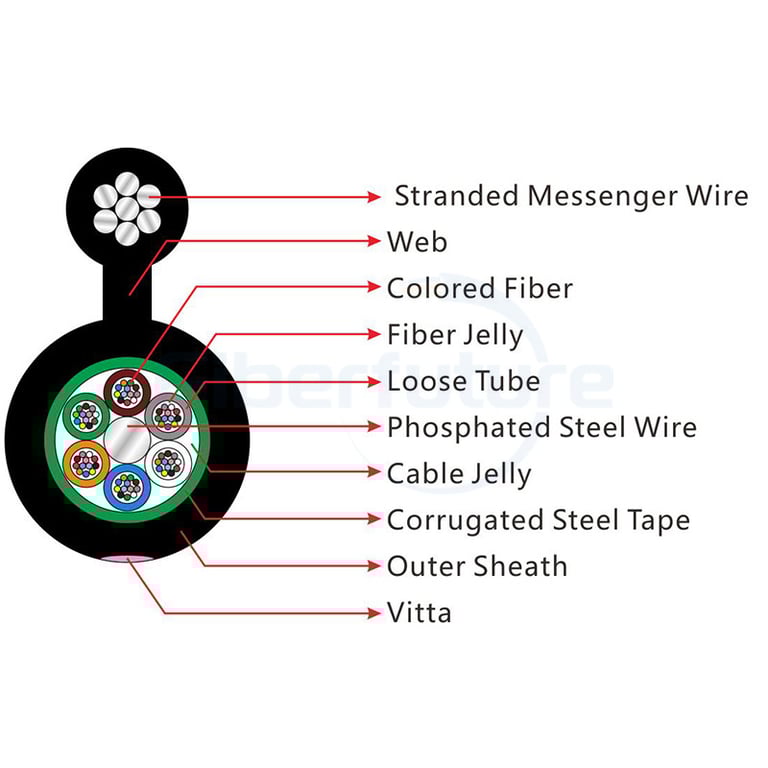

FIBERFUTURE® GYTC8S cable, single-mode/multimode fibers are positioned in the loose tubes, while the loose tubes strand together around metallic central strength member into a compact and circular cable core, and the water-blocking materials are distributed into interstices of it. After a APL is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a PE sheath to be a figure-8 structure.
| Fiber Count | |
|---|---|
| Fiber Type | |
| Strength Member | |
| Outer Sheath |
| 01 - Blue | 02 - Orange | 03 - Green |
| 04 - Brown | 05 - Slate | 06 - White |
| 07 - Red | 08 - Black | 09 - Yellow |
| 10 - Violet | 11 - Pink | 12 - Aqua |
| iber count | Cablediameter(mm) | Messenger diameter(mm) | Cableheight(mm) | Cableweight(kg/km) | Tension(N) | Crush(N/100mm) | Bending radius(mm) | |||
| Long term | Short term | Long term | Short term | static | Dynamic | |||||
| 2~30 | 9.5 | 5.0 | 16.5 | 155 | 3000 | 6000 | 1000 | 3000 | 10D | 20D |
| 32~36 | 9.8 | 5.0 | 16.8 | 170 | 3000 | 6000 | 1000 | 3000 | 10D | 20D |
| 38~60 | 10 | 5.0 | 17.0 | 180 | 3000 | 6000 | 1000 | 3000 | 10D | 20D |
| 62~72 | 10.5 | 5.0 | 17.5 | 198 | 3000 | 6000 | 1000 | 3000 | 10D | 20D |
| 74~96 | 12.5 | 5.0 | 19.5 | 265 | 3000 | 6000 | 1000 | 3000 | 10D | 20D |
| 78~120 | 14.5 | 5.0 | 21.5 | 320 | 3000 | 6000 | 1000 | 3000 | 10D | 20D |
| 122~144 | 16.5 | 5.0 | 23.5 | 385 | 3000 | 6000 | 1000 | 3000 | 10D | 20D |
| Test | Conditions | Acceptance criteria |
|
Tensile strength IEC 60794-1-21 E1 |
Tensile strength: see Point 3 Sample length: ≥ 50 m, Duration: 1 min |
|
|
Crush resistance IEC 60794-1-21 E3 |
Crush: see Point 3 Test duration: 1 min, number of test: 3 |
|
|
Impact IEC 60794-1-21 E4 |
Impact energy: 4.5 J R = 300 mm,Impact points: 5, Impact frequency 3/point |
|
|
Repeated bending IEC 60794-1-21 E6 |
Bending diameter: 20x cable Ø Load:15kg; 30 times |
|
|
Torsion IEC 60794-1-21 E7 |
Sample length: 1 m ± 180°, 10 cycles,load 25kg |
|
|
Bend IEC 60794-1-21 E11A |
Bending radius: 12x cable Ø 4 bends, 3 cycles |
|
|
Temperature cycling IEC 60794-1-22 F1 |
-40℃→ +70℃ 24 hours at each step, 2 cycles |
|
|
Water penetration IEC 60794-1-22 F5 |
Sample length: 3 m Water column height: 1 m Test duration: 24 h |
|
|
Drop test IEC 60794-1-22 E14 |
Test length:30cm Temperature range: 70±2℃ Duration: 24hours |
|
All optical measurements at 1550 nm
| able type |
Length Tolerance |
4km -5% / +5% |
|
| GYTC8S-24 B1.3 |

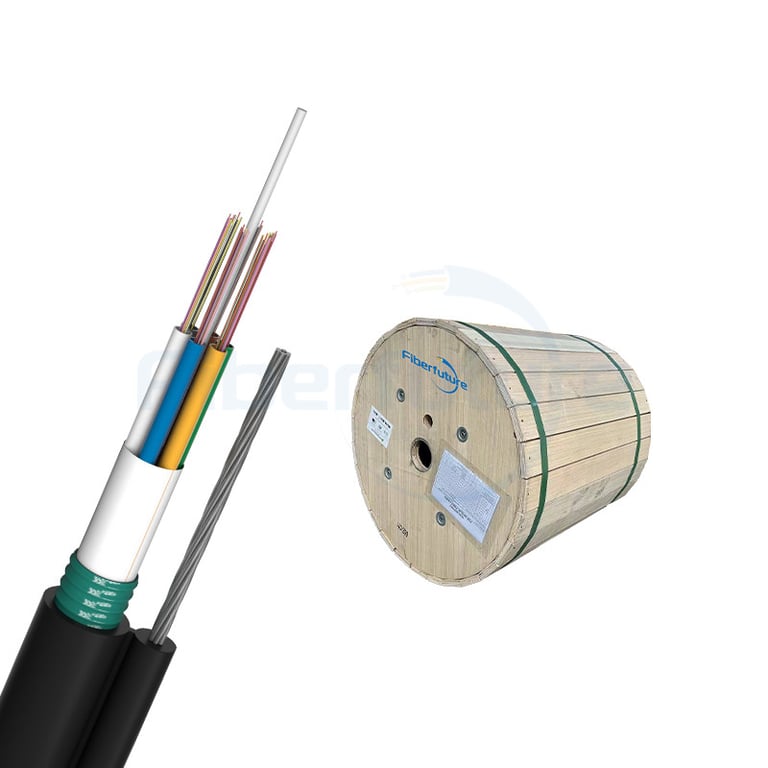

Drum Type Dimensions Weight |
Wood 125*50*75 962kg |
Dimensions including protection. Indicative values, actually delivered drum sizes and weights may deviate. Cable ends sealed with caps
