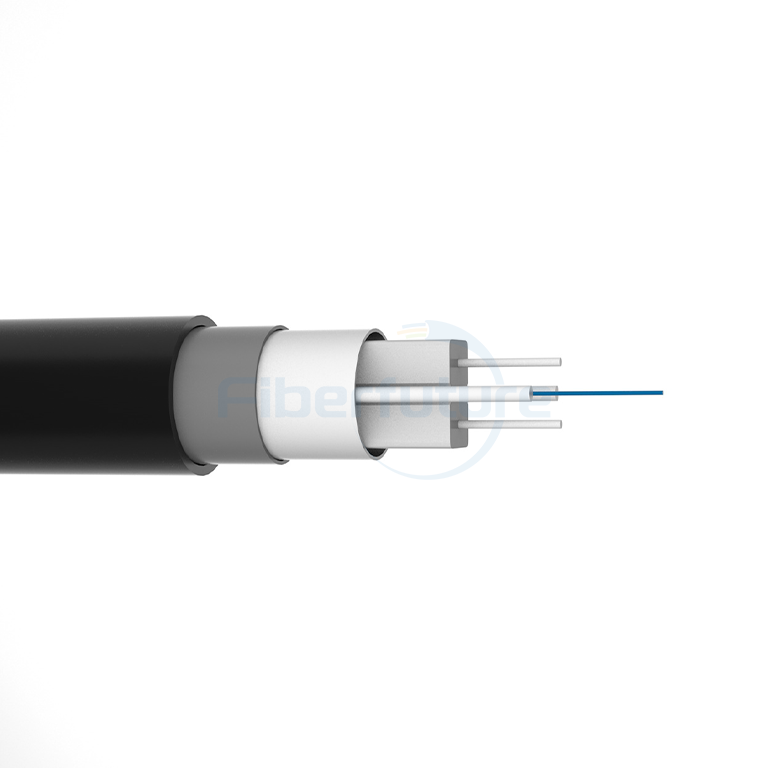

GJYXHA drop cable FTTH (metal strengthened, Al-PE sheathed, indoor & outdoor duct communication fiber optic cable), is constructed as follows: put single-mode or multi-mode fiber(s) between two non-metallic strength member, extrude a layer of flame resistant PE as sheath, then apply two steel wires symmetrically at two sides, then a vertically wrap of water blocking tape, an Aluminum tape armor and a PE sheath.
Metalic strengthen member (phosphated steel wire)
Double coated PE Crrugated steel tape under PE sheath
| cable code | fiber count |
cable size (mm) |
cable weight (kg/km) |
tensile strenth long/short term (N) |
crush resistance long/short term (N/100mm) |
bending radius static dinamic (mm) |
| GJXFHA-1 | 1 | 7 | 47 | 30/60 | 300/1000 | 15/30 |
| GJXFHA-2 | 2 | 7 | 47 | 30/60 | 300/1000 | 15/30 |
