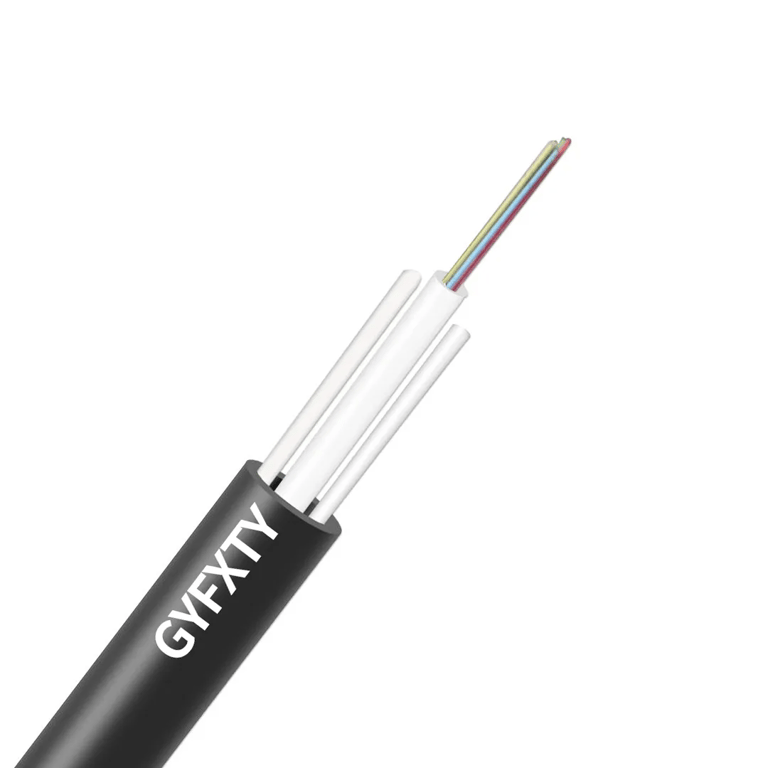

GYFXTY Unitube Adss Non-Metallic Non-Armored Fiber Optic Cable

For specific data sheet, please write to sales@chinafiberfuture.com, whatsapp+86 18508406369 Or click here!

APPLICATIONS
o
Fiber Count
GYFXTY Unitube Adss Non-Metallic Non-Armored Fiber Optic Cable
GYFXTY Unitube Adss Non-Metallic Non-Armored Fiber Optic Cable
Send Email
Whatsapp

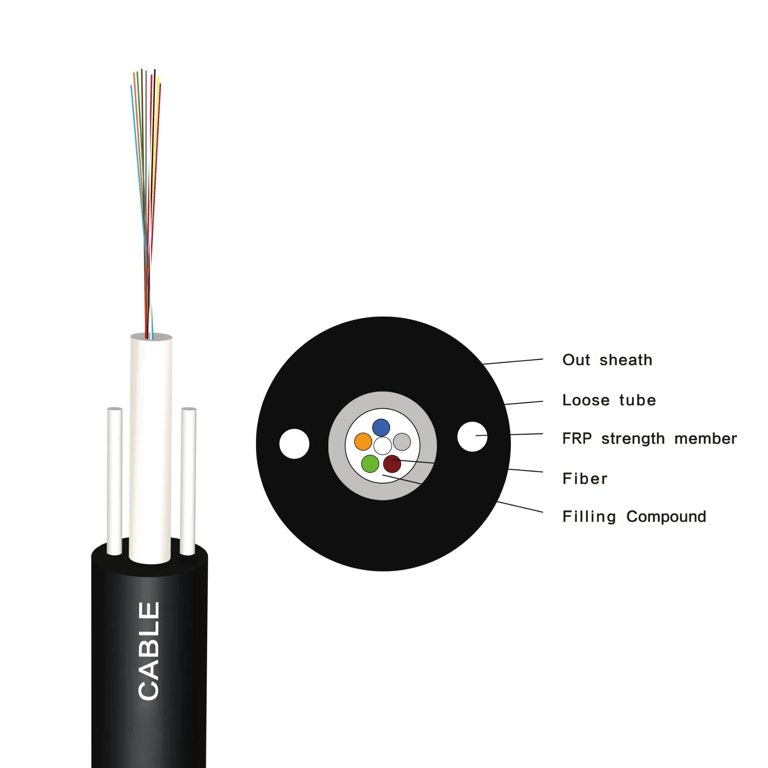

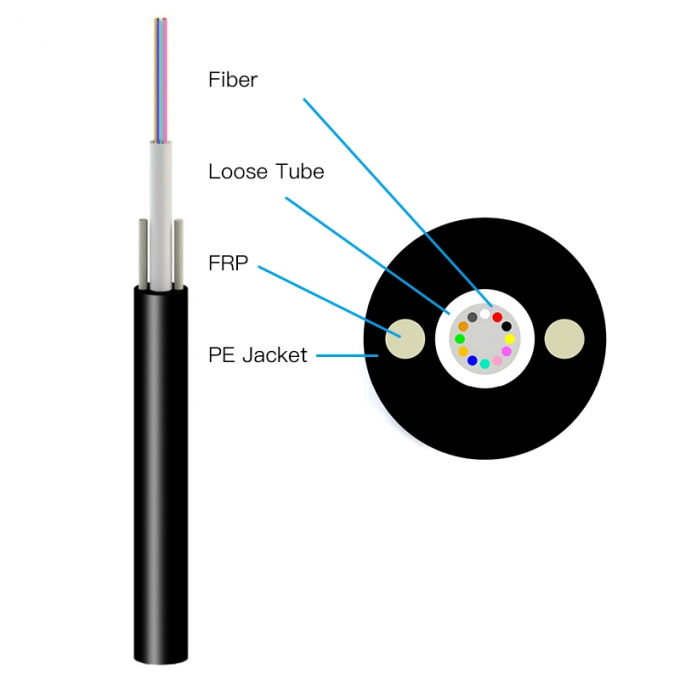

Main Features

  • Good mechanical and temperature performance
  • High strength loose tube that is hydrolysis resistant
  • Special tube filling compound ensure a critical protection of fiber
  • Two parallel FRPs ensure tensile strength
  • PE sheath protects cable from ultraviolet radiation
  • Small diameter, light weight and friendly installation
  •  Long delivery length

Applications

Aerial installation, self-supporting, overhead

Standard

 Standard YD/T 1155-2001 as well as IEC 60794-1.

Fibre Colors

Fibre Colors



No.

1

2

3

4

5

6

Color

Blue

Orange

Green

Brown

Gray

White

No.

7

8

9

10

11

12

Color

Red

Black

Yellow

Violet

Pink

Aqua



Loose Tube Colors



No.

1

2

3

4

5

6

Color

Blue

Orange

Green

Brown

Gray

White

No.

7

8

9

10

11

12

Color

Red

Black

Yellow

Violet

Pink

Aqua

Optical Characteristics






G.652

G.655

50/125μm

62.5/125μm



Attenuation
        (+20℃)

@850nm

 -

  -

≤3.5dB/km

≤3.5dB/km

@1300nm

  -

  -

≤1.5dB/km

≤1.5dB/km

@1310nm

≤0.45dB/km

≤0.45dB/km

  -

  -

@1550nm

≤0.30dB/km

≤0.30dB/km

 -

  -



@850

 -

 -

≥500MHZ·km

≥200MHZ·km

Bandwidth
      （Class A）

@1300

  -

  -

≥1000MHZ·km

≥600MHZ·km

Numerical aperture

 -

  -

  -

0.200±0.015NA

0.275±0.015NA



Cable Cutoff Wavelength

 -

≤1260nm

≤1480nm

  -

Technical Characteristics



Fiber

count



Cable

diameter(mm)



Nominal

weight(KGS)



AllowableTensileLoad(mm)



Allowable Crush Resistance(N/100m)



Short term



Long term



Short term



Long term



2-12



8.0



60



800N



400N



1000N/100m



300N/100m
