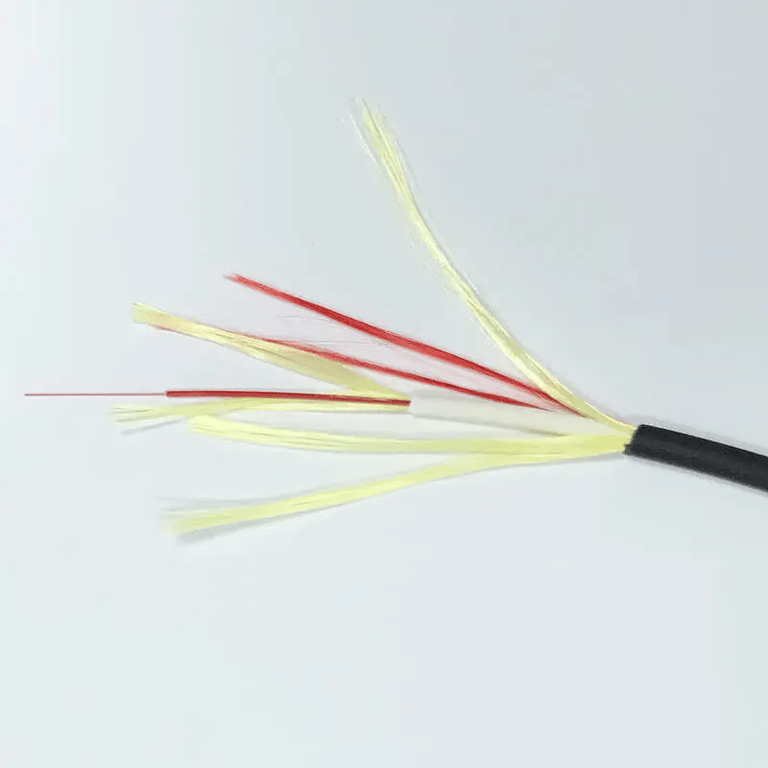

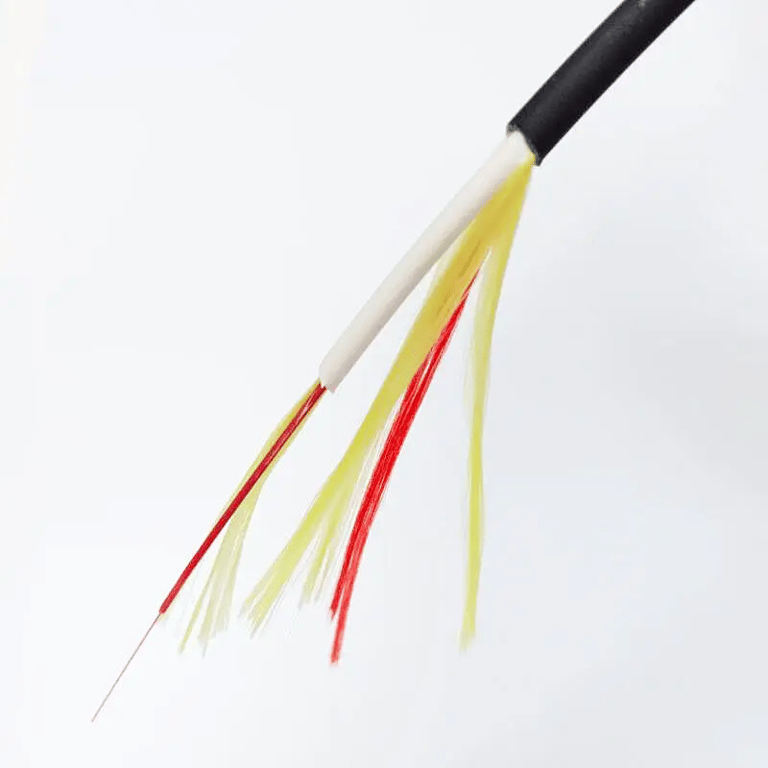

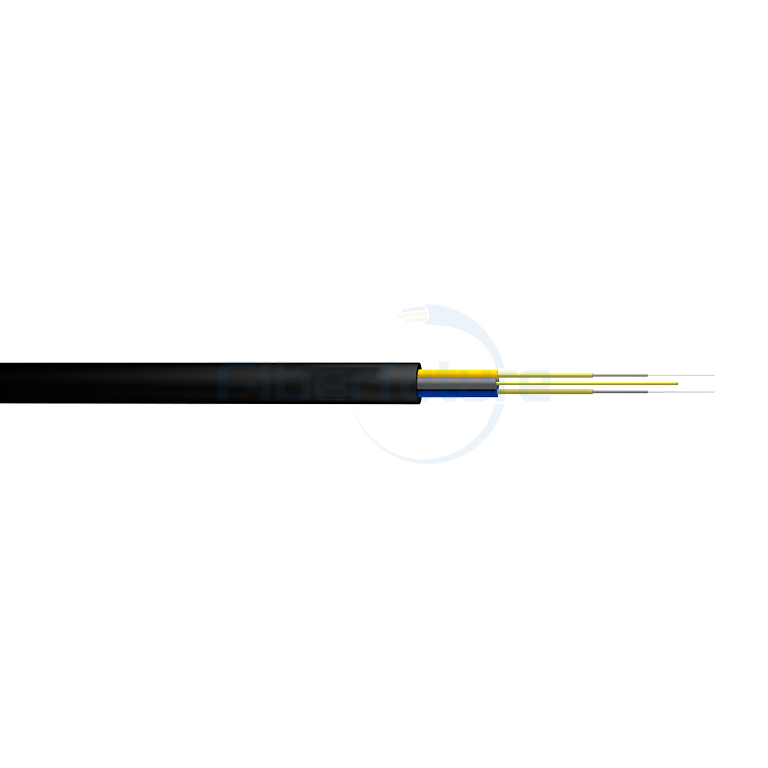

FTTH Round GJYFJH Cable Double Sheath for Outdoor Indoor Use 4.6mm 5.0mm 6.0mm

FTTH Round GJYFJH Cable Double Sheath for Outdoor Indoor Use 4.6mm 5.0mm 6.0mm

The Double Sheath FTTH Round GJYFJH Cable is a specialized fiber optic cable designed specifically for Fiber-to-the-Home (FTTH) applications. It features a round construction with a double sheathing for enhanced protection against environmental factors, making it suitable for both outdoor and indoor installations. The cable comes in three diameter options: 4.6mm, 5.0mm, and 6.0mm, providing versatility in accommodating various installation requirements and space constraints.

Send Email

Cable Characteristics:

High strength aramid yarn strength member ensures high tensile strength and long term stability in transmission
Small outer diameter, lightweight, flame-retardant, easy to strip, low attenuation, physically soft
Direct splicing between tight buffer cables and need no tie-in box or pigtail
Suitable for installation, operation, and convenient for maintenance

Double Sheath Applications:

As building to building connecting cable
As indoor soft cable along the wall, ceiling, between layers and in conduits
As pigtails, movable connectors and patch cords for communication equipment

Optical Characteristics G657A2:

Characteristics	Conditions	Specified Values	Units
Geometrical characteristics
Cladding diameter	125.0±0.7	µm
Cladding non-circularity	≤0.7	%
Coating diameter	245±5	µm
Coating/cladding concentricity error	≤12	µm
Coating non-circularity	≤6.0	%
Core/cladding concentricity error	≤0.5	µm
Curl	≥4	m
Optical characteristics
1310nm	≤0.35	dB/km
1383nm	≤0.35	dB/km
1550nm	≤0.21	dB/km
Attenuation	1625nm	≤0.23	dB/km
Attenuation vs. Wavelength max. A difference	1525~1575nm	≤0.02	MHz*km
1285~1330nm	≤0.03	MHz*km
Zero dispersion wavelength	1300~1324	nm
Zero dispersion slope	≤0.092	ps/(nm2*km)
Polarization mode dispersion
PMD maximum individual fibre	≤0.1	ps/km1/2
PMD design link value	≤0.06	ps/km1/2
Typical force	0.04	ps/km1/2
Cable cut off wavelength	≤1260	nm
Mode field diameter	1550nm	9.3~10.3	µm
1310nm	8.4~9.3	µm
Group index of refraction	1550nm	1.467
1310nm	1.466
Environmental characteristics	1310nm、 1550nm&1625nm
Temperature cycling	-60℃ to +85℃	≤0.05	dB/km
Temperature-humidity cycling	-10℃ to +85℃, 4% to 98% RH	≤0.05	dB/km
Water immersion	23℃, 30 days	≤0.05	dB/km
Dry heat	85℃, 30 days	≤0.05	dB/km
Damp heat	85℃, 85%RH, 30 days	≤0.05	dB/km
Mechanical specification
Proof test	≥9.0	N
	≥1.0	%
	≥100	kpsi
Macro bending induced loss
1Turns @5mm Radius	1550nm	≤0.15	dB
1Turns @5mm Radius	1625mm	≤0.45	dB
1Turns @7.5mm Radius	1550nm	≤0.08	dB
1Turns @7.5mm Radius	1625mm	≤0.25	dB
1Turns @10mm Radius	1550nm	≤0.03	dB
1Turns @10mm Radius	1625mm	≤0.10	dB
Coating strip force	Typical average force	1.5	N
Peak force	≥1.3 ≤8.9	N
Dynamic stress corrosion susceptibility parameter	27

Cable Technical Parameters:

Fiber Count	1
OD(mm)	4.5±/0.2
Cable	Material	UV - LSZH
Thickness(mm)	0.9±0.1
OD(mm)	3.0±0.1
Inner cable	Material	LSZH
Thickness(mm)	0.5±0.05
OD(mm)	0.85±0.05
Buffer	Material	LSZH
Nominal weigh t(kg/km)	24
Max.tensile Strength(N)	Long-term	120
Short-term	240
Min.Bending Radius(mm)	Static	10D
Dynamic	20D
Max.Crush Resistance(N/100mm)	Long-term	300
Short-term	1000
Strength Members	Aramid yarn
Environmental Protection	RoHS COMPLIANT
Storage ortransportation	-20~70℃
Operation	-20~60℃
Temperature range	Installation	-20~60℃
