Fiber Optic Splitter

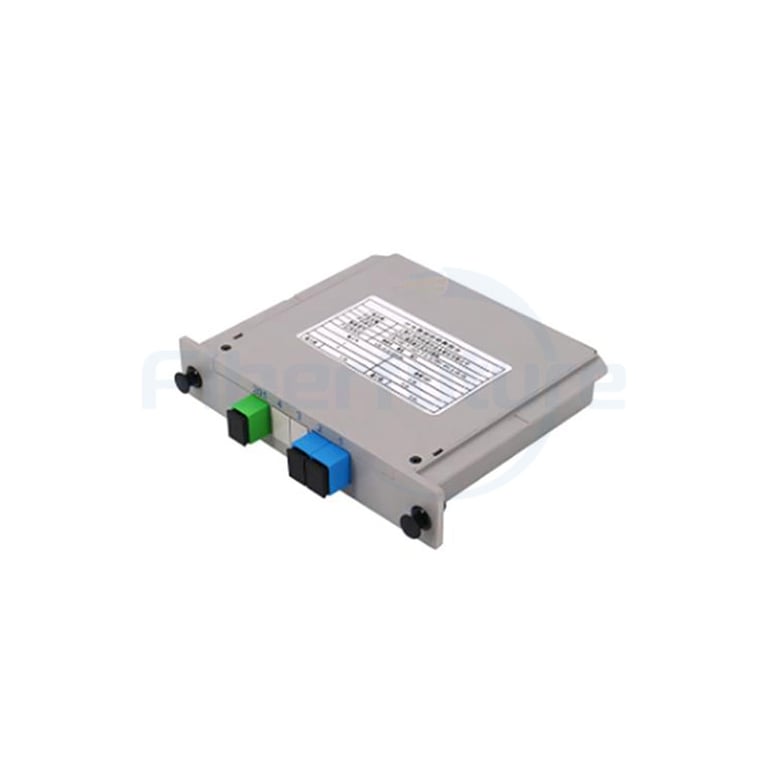

FIBERFUTURE provides a high precise cassette type PLC splitter for the construction of optical network. Low requirements of placing position and environment, compact cassette type design, can easily be placed into optical fiber distribution box, optical fiber junction box or any kind of box, which can reserve some space. It can be easily applied in FTTx construction, optical network construction, CATV networks and etc.

Send Email

The Main Features Of Cassette Type PLC Splitter

Compact design
Low insertion loss and low PDL
High reliability
High channel counts
Wide wavelength range
Large operating and temperature range
Customized packaging and configuration
Full Telcordia GR1209/1221 qualifications

The Specification of Cassette Type PLC Splitter

1×N (N>2) PLCS (With connector) Optical parameters
Parameters		1×2	1×4	1×8	1×16	1×32	1×64
Operation wavelength (nm)		1260~1650
Insertion loss (dB) Max		4.1	7.4	10.5	13.8	17.1	20.4
Return loss (dB) Min	APC	55	55	55	55	55	55
Return loss (dB) Min	UPC	50	50	50	50	50	50
PDL (dB) Max		0.2	0.2	0.3	0.3	0.3	0.3
Directivity (dB) Min		55	55	55	55	55	55
WDL (dB)		0.4	0.4	0.4	0.5	0.5	0.5
Pigtail length (m)		1.2(±0.1) or customer specified
Fiber type		SMF-28e with 2.0/3.0mm tight buffered fiber
Operation temperature (°C)		-20~65
Storage temperature (°C)		-40~85
Dimension (L×W×H) (mm)		100×80×10	100×80×10	100×80×10	120×80×18	140×114×18	140×114×18
2×N (N>2) PLCS (With connector) Optical parameters
Parameters		2×2	2×4	2×8	2×16	2×32	2×64
Operation wavelength (nm)		1260~1650
Insertion loss (dB) Max		4.4	7.7	10.8	14.1	17.4	20.7
Return loss (dB) Min	APC	55	55	55	55	55	55
Return loss (dB) Min	UPC	50	50	50	50	50	50
PDL (dB) Max		0.2	0.2	0.3	0.4	0.4	0.4
Directivity (dB) Min		55	55	55	55	55	55
WDL (dB)			0.4	0.4	0.5	0.5	0.5
Pigtail length (m)		1.2(±0.1) or customer specified
Fiber type		SMF-28e with 2.0/3.0mm tight buffered fiber
Operation temperature (°C)		-20~85
Storage temperature (°C)		-40~85
Dimension (L×W×H) (mm)		100×70×9	100×70×9	100×70×9	120×80×18	140×114×18	140×114×18
