Fiber Optic Assemblies

FIBERFUTURE® provides a high precise optical patchcord for the construction of optical network . We give user a wide choice of patchcord’s connectors, including ST, FC, SC, LC and etc. with PC, UPC or APC polishing. Grandway patchcord is composed of high-grade connectors and the ferrule is made of zirconia. Customer can order the common type patchcord we offered as well as the special type customi

Fiber Patch Cord
Fiber optic adapter, sometimes also called coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines.

Fiber Optic Adaptor
The pre-embedded fiber in the ferrule of field assembly optical connector has already been pre-polished at the patchcord workshop. Just strip, cleave and clean the fiber and then insert the fixed-length fiber and connect with the pre-embedded fiber by index-matching gel.

Fiber Optic Fast Connector
FIBERFUTURE® provides a high precise cassette type PLC splitter for the construction of optical network. Low requirements of placing position and environment, compact cassette type design, can easily be placed into optical fiber distribution box, optical fiber junction box or any kind of box, which can reserve some space.It can be easily applied in FTTx construction, optical network construction,

Fiber Optic Splitter

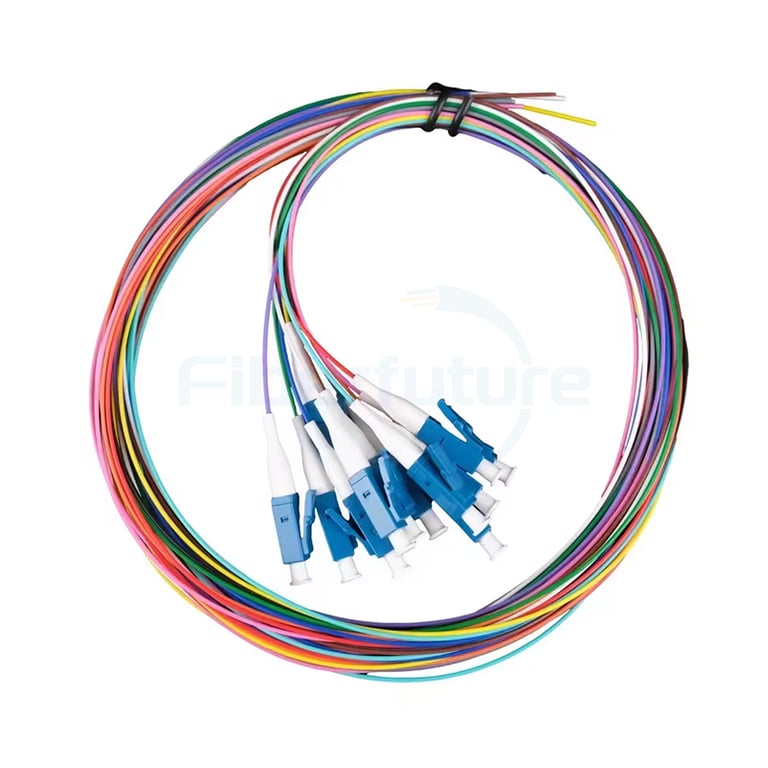

FIBERFUTURE offer three primary fiber versions, 9/125um single mode, 62.5/125 multimode and 50um OM3, OM4, and OM5. These fiber pigtails are made with a premium grade jacket with LC, SC, ST, and FC connectors and with typical 0.9mm outer diameter cables. Simplex fiber pigtails and duplex fiber pigtails are also available, with different cable color, cable diameter and jacket types available.

Fiber Optic Pigtail

FIBERFUTURE has been the FTTH Equipments & PON supplier since 2004. Fiber optic assemblies can be roughly divided into splitters,patch cords, pigtails, fast connectors, adapters, and attenuators. Such products are generally used in data centers and processing optical fibers in fiber distribution boxes, which have high requirements on factory equipment and production lines. China FIBERFUTURE provides the most complete types of products that meet international standards.

Picture	Product Name	Description	Inquire
	Adapters	Fiber optic adapters (also known as bulkheads) are used to join two fiber optic patch cables together. They are available for use with either singlemode or multimode patch cables.	Inquire
	Fast Connector	China FIBERFUTURE supplies many kinds of SM and MM fast connectors for LC, SC, FC, ST applications. Each connector is functionally tested before shipping.	Inquire
	Splitter	Fiber optic PLC splitter's indicators are based on the planar waveguide technology. The fiber optic PLC splitter provides a low-cost and perfect power distribution solution which has features of small form factor and high reliability. Wide operating wavelength range and good channel-to-channel uniformity make PLC fiber splitter widely used in PON net.	Inquire
	Patch Cord	FTTH fiber patch cord or pigtail, refers to the drop cable ends with a connector plug, used to achieve optical active connection, also be made into a single head pigtails, and Flexible Splice, Quick connect and other products combined application, Connector types are SC-PC(APC) and FC-PC(APC).	Inquire
	Pigtails	Fiber Optic Pigtail is a fiber optic cable capped at either end with connectors that allow fiber optic pigtail cable to be rapidly and conveniently connected to CATV, an optical switch or other telecommunication equipment. The fiber pigtail assembly's thick layer of protection is used to connect the optical transmitter, receiver, and the terminal box.	Inquire

FAQS of Fiber Optic Assemblies

Q

What is your MOQ?

A

Stocked model 1km above Custom length/structure/materials, MOQ 2km-10km
Q

Can I have a sample order?

A

We provide design service for all clients. MoQ of sample order is subject to the specific design.
Q

Sample free or needed to pay first?

A

If you don’t need to print a custom mark or other special material or structure on the products, it will not charge any cost. Just tell us your freight collect account like FedEx DHL TNT. If you don’t have an account, it needs to charge Express fee properly.
Q

How long is your delivery time?

A

5-10 days if the goods are in stock. 2-3 weeks if the goods are not in stock, mostly depends on quantity and production plan.
