Fiber Optic Pigtail

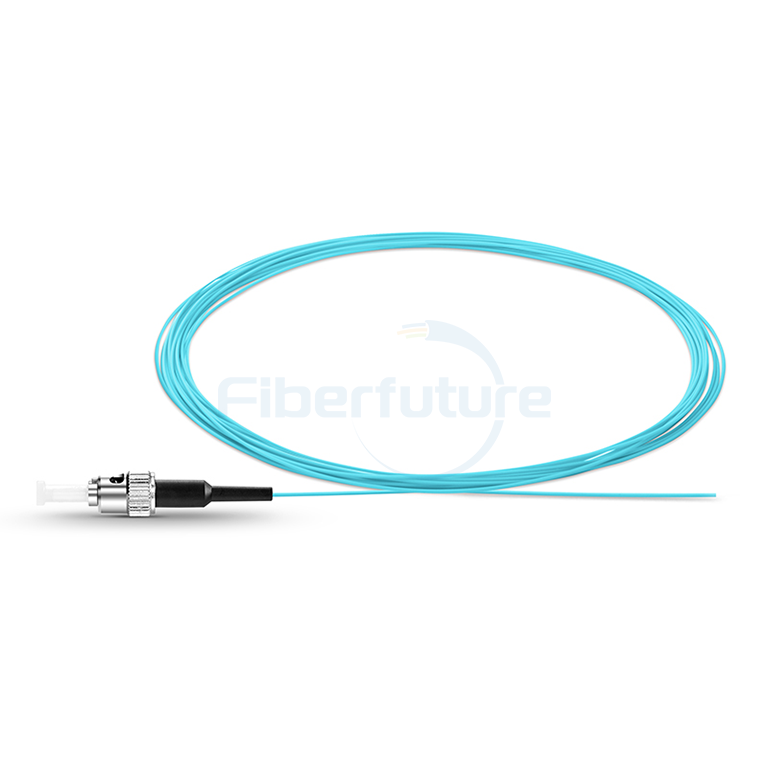

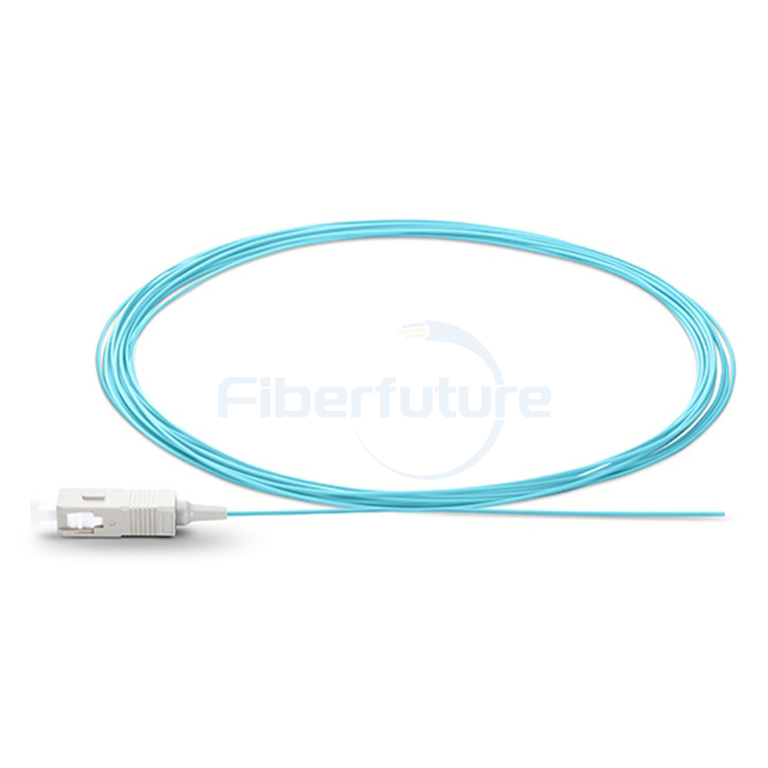

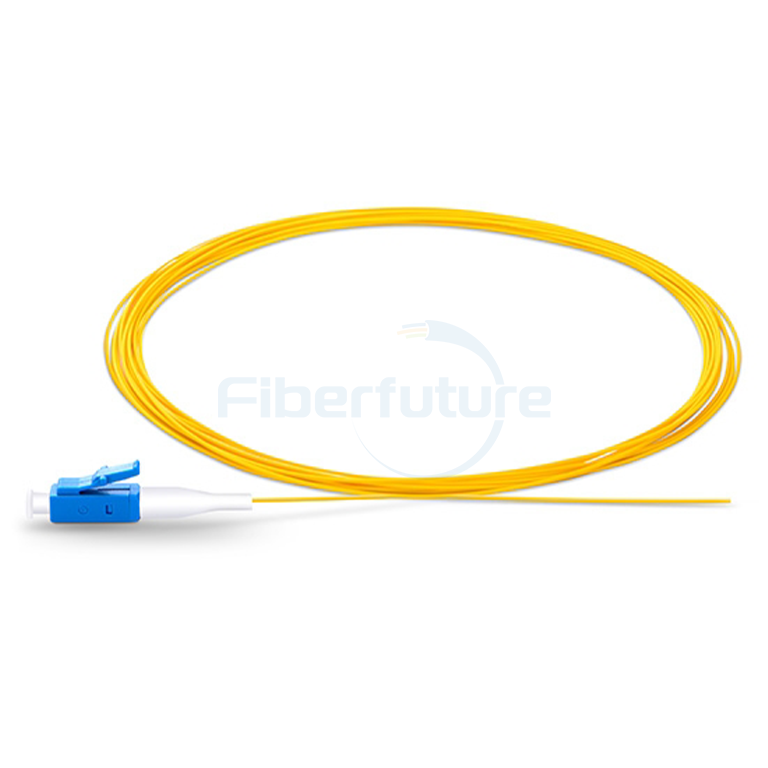

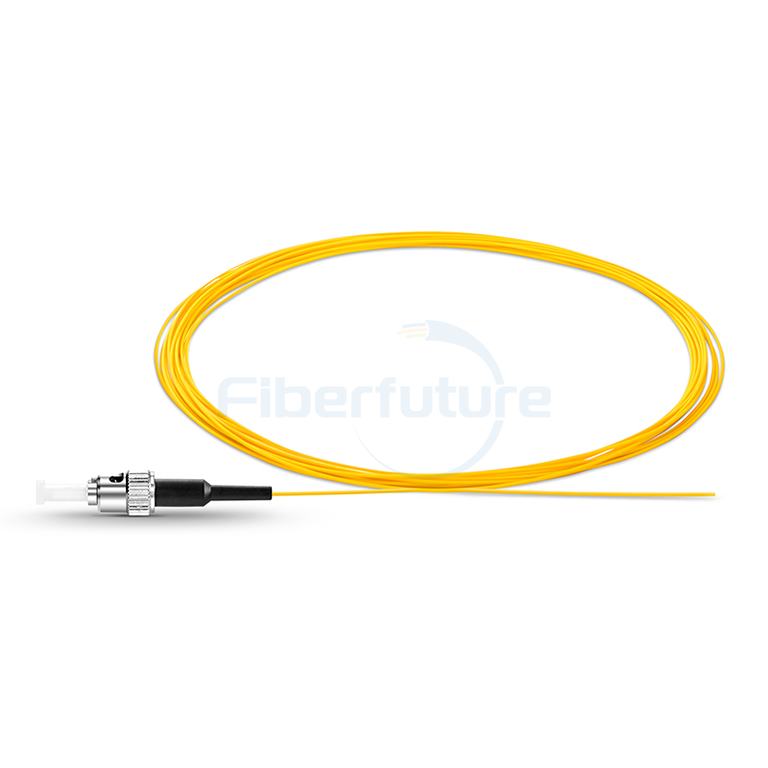

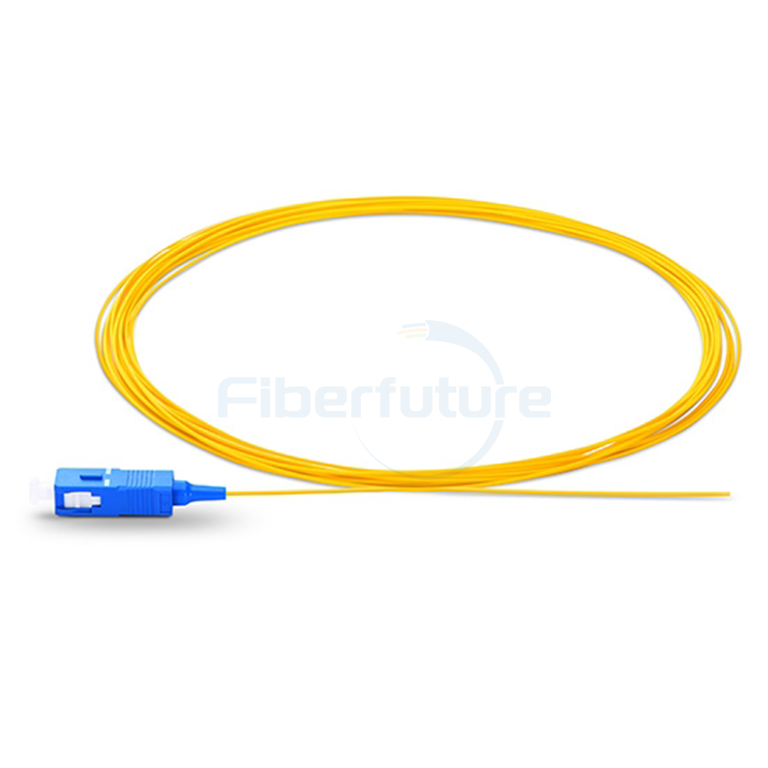

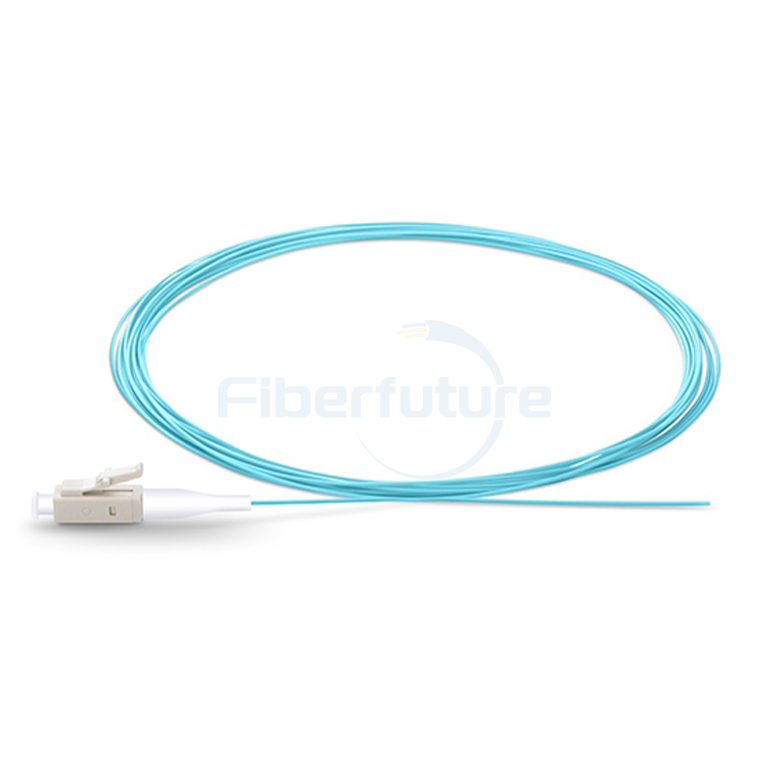

FIBERFUTURE supplies fiber optic pigtails at competitive prices. We offer three primary fiber versions, 9/125um single mode, 62.5/125 multimode and 50um OM3, OM4, and OM5. These fiber pigtails are made with a premium grade jacket with LC, SC, ST, and FC connectors and with typical 0.9mm outer diameter cables. Simplex fiber pigtails and duplex fiber pigtails are also available, with different cable color, cable diameter and jacket types available.

Send Email

Application:

CATV Networks, Cellular base stations
FTTH/FTTX, Test and measurement systems
Telecommunication networks
Premise installations
Data processing networks
Local Area Networks(LANs)
Wide area networks(WANs)
Data centers, Telecom switching offices

Main Features:

One-piece construction & pull-proof design;
UL-rated plastic housing and boots in a variety of colors;
Free-floating ceramic ferrule
Precision anti-rotation key;
Corrosion-resistant body(nickel-plated brass)
Telcordia style boots
0.9mm, 2.0mm, 3.0mm, or custom cable optional.

FIBERFUTURE offers a variety of custom-made fiber optic pigtails with various connector types, please contact us to find out more.

Specifications:

FC fiber optic pigtail complies with IEC, TIA/EIA, NTT, and JIS specifications. The FC connector is with PC, UPC, and APC versions, and both single-mode and multimode versions come with a zirconia ceramic ferrule. The FC pigtails are low back reflection and optical loss while ensuring maximum repeatability. FC fiber pigtails can use 9/125 single mode, 50/125 multimode, or 62.5/125 multimode fiber.

Connector	FC	Jacket OD	0.9mm
Fiber Mode	SM/MM	Jacket Color	12 Color Optional
Polish	UPC or APC	Wavelength	1310/1550nm
Cable Type	LSZH/PVC/OFNP	Durability	Plug and Unplug 1,000 times
Insertion loss	≤0.2dB	Return loss	UPC≥50, APC≥60
