Wide Range of FTTH Drop Cable Clamp Specifications

FTTH (Fiber To The Home) projects require reliable and secure cable management systems to ensure the integrity and longevity of the fiber optic network. Among the essential components of these systems are drop cable clamps, which play a critical role in securing and supporting fiber optic cables.

Types of FTTH Drop Cable Clamps

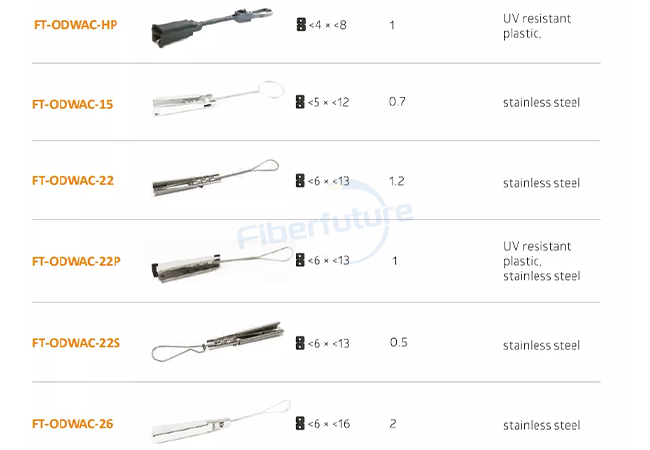

1. ODWAC Aerial Drop Wire Clamps

ODWAC clamps are specifically designed for overhead applications, providing secure attachment of drop cables to utility poles or other structures. These clamps are engineered to withstand the forces exerted on the cable due to wind, ice, and gravity. They often feature adjustable tension settings to accommodate different cable diameters and support lengths.

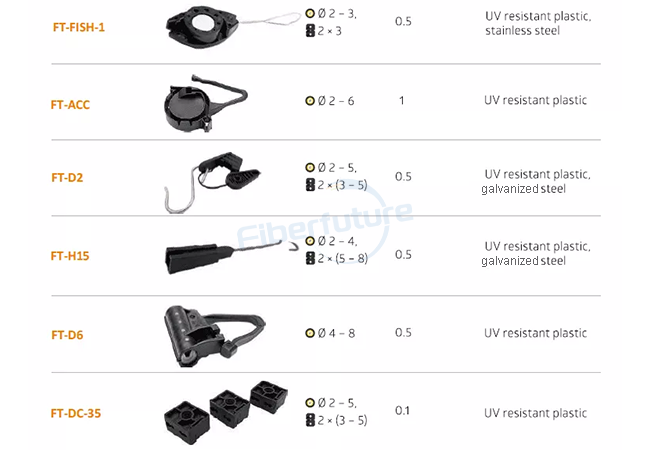

2. Fish-Type Drop Wire Clamp

Fish-type clamps, also known as saddle clamps, are named for their distinctive shape, resembling a fish. These clamps are ideal for securing cables along walls or other flat surfaces. They offer a secure grip while minimizing the risk of damage to the cable's outer jacket. Fish-type clamps are commonly used in indoor and outdoor installations, providing a clean and professional appearance.

3. SS-Type (Stainless Steel) Fiber Drop Clamp

SS-type clamps, made primarily of stainless steel, are designed for harsh environments and areas prone to corrosion. These clamps provide exceptional durability and resistance to the elements, making them suitable for coastal regions and industrial zones. Stainless steel clamps are also popular for their sleek and modern aesthetic.

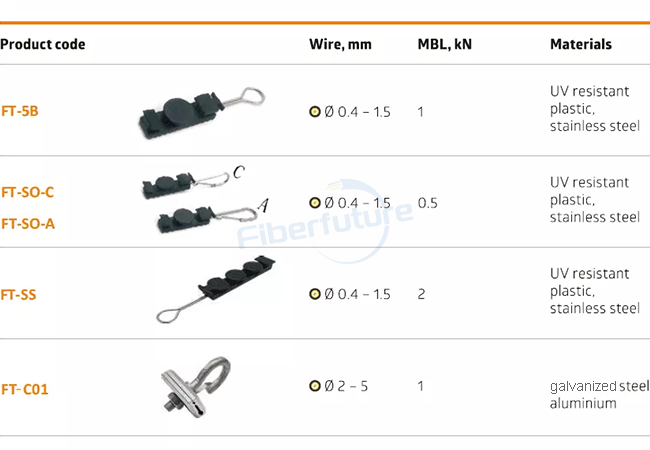

4. S-Type

S-type clamps are versatile and widely used for securing cables in a variety of applications. They are known for their simple yet effective design, which allows for easy installation and adjustment. S-type clamps are commonly used in both indoor and outdoor settings, offering a secure hold for cables.

5. Round-Type

Round-type clamps are designed to provide a uniform and secure hold on round cables. They are often used for direct burial applications or for securing cables in conduit. Round-type clamps are available in various sizes to accommodate different cable diameters and ensure a snug fit.

Materials Used in Fiber Drop Wire Clamp

1. Galvanized Steel

Galvanized steel is a cost-effective material that provides adequate corrosion resistance for most outdoor applications. It is commonly used in areas with moderate environmental exposure and is suitable for general-purpose installations. Galvanized steel clamps are robust and can handle the weight of heavier cables.

2. Stainless Steel

Stainless steel is the preferred material for clamps in environments with high levels of corrosive agents. It offers superior resistance to rust and corrosion, making it ideal for coastal areas and industrial zones. Stainless steel clamps are also highly durable and can withstand extreme weather conditions.

3. UV-Resistant Plastic

UV-resistant plastic clamps are lightweight and easy to install, making them a popular choice for residential and commercial installations. These clamps are designed to withstand prolonged exposure to sunlight without degrading. They are particularly useful in areas where aesthetics are important, as they can be manufactured in various colors to blend in with the surroundings.

4. Aluminum

Aluminum clamps are another option for lightweight and corrosion-resistant applications. They are less expensive than stainless steel but still provide good durability and resistance to environmental factors. Aluminum clamps are often used in installations where weight is a concern, such as on lightweight poles or in areas with high wind loads.

Conclusion

FTTH clamps come in a wide range of specifications to suit various installation scenarios. Whether you need a clamp for overhead applications, wall-mounted installations, or environments prone to corrosion, there is a suitable option available. By choosing the right type and material, you can ensure the stability and longevity of your fiber optic network, guaranteeing reliable service for years to come.
