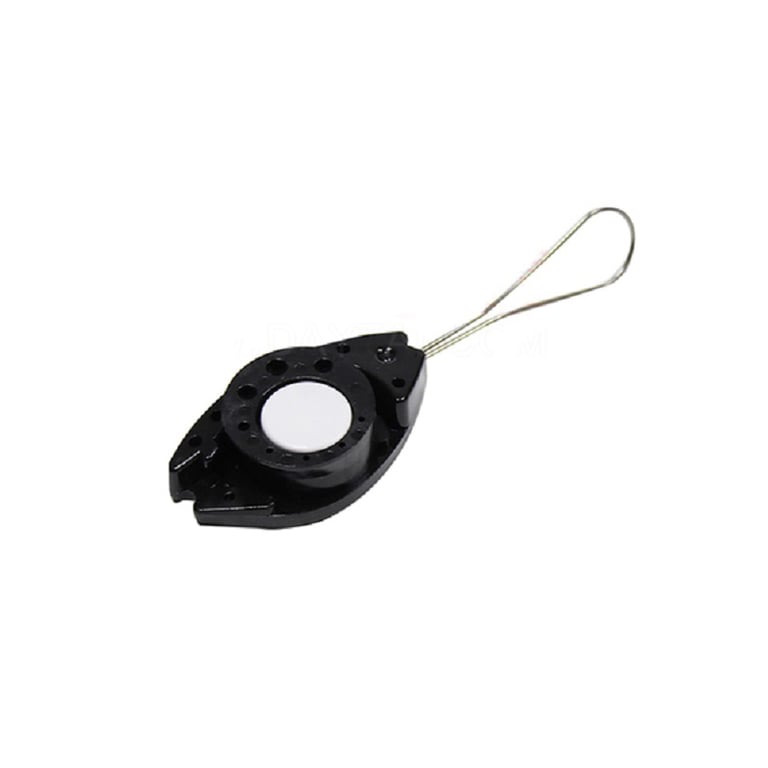

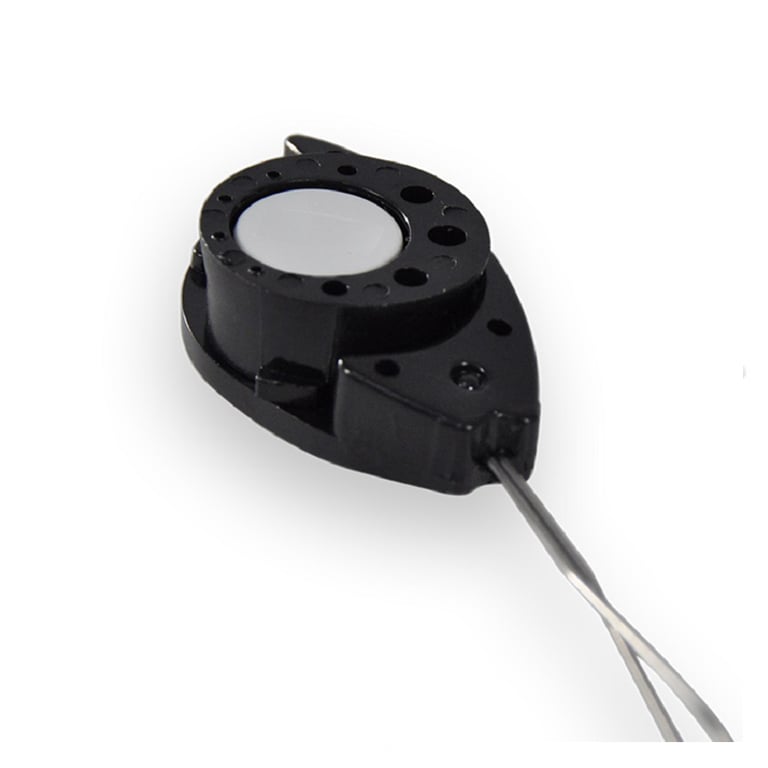

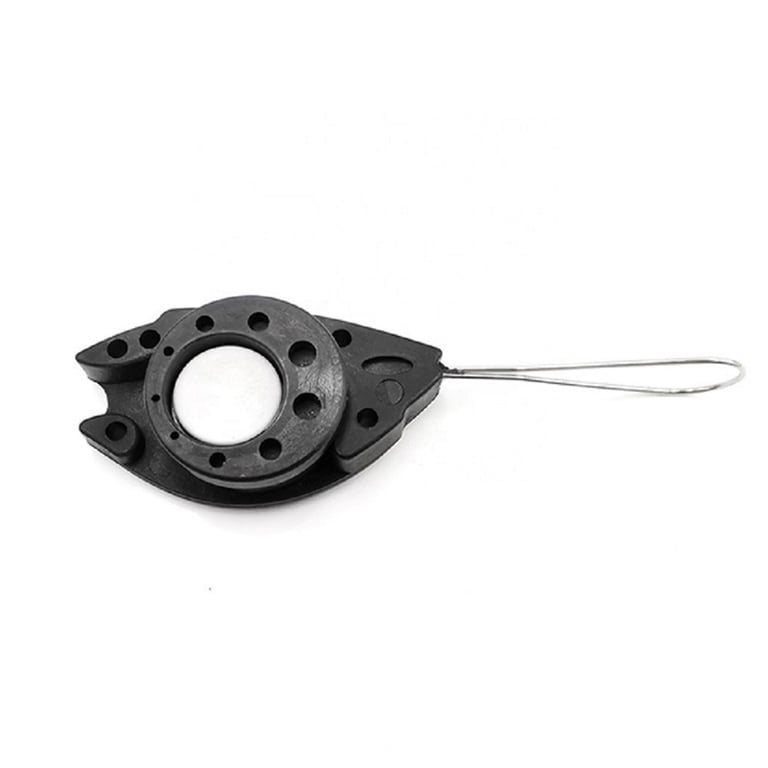

Fish Fiber Optic Drop Cable Clamp

FISH fiber optic drop cable clamp is the tension clamp for FTTH drop cable clamp. It is a plastic&metal FTTH drop clamp. Fish clamp FTTH can be used in anchoring, turning, suspension fiber optic cable routes. Without suspension wire (in case of fiber optics diameter is 3.3mm*2.0mm): 2turns. With suspension wire (in case of fiber optics diameter is 5.0mm*2.0mm): 1 turn.

Send Email

The Details of Fish Fiber Optic Drop Cable Clamp

All the assemblies passed the tensile tests and temperature-cycling test;
Good anti-corrosion performance with FIBERFUTURE style;
Fiberglass reinforced plastic and stainless steel;
Use with YK and Fish type;
Can be used in anchoring, turning, suspension optical fiber cable routes.

The Specification of Fish Fiber Optic Drop Cable Clamp

Code	Material	Round Cable Size	Code	Material
FISH Drop Cable Clamp	Alloy for anchor body; 201 stainless steel for wire	3-7mm	FISH SS Wire Bail	Alloy for anchor body; 201 stainless steel for wire
Weight	Dimension	Application	Weight	Dimension
26.2g	126.5mm40mm20mm (LWD)	Tension Clamp for figure 8 cable	26.2g	126.5mm40mm20mm(LWD)
