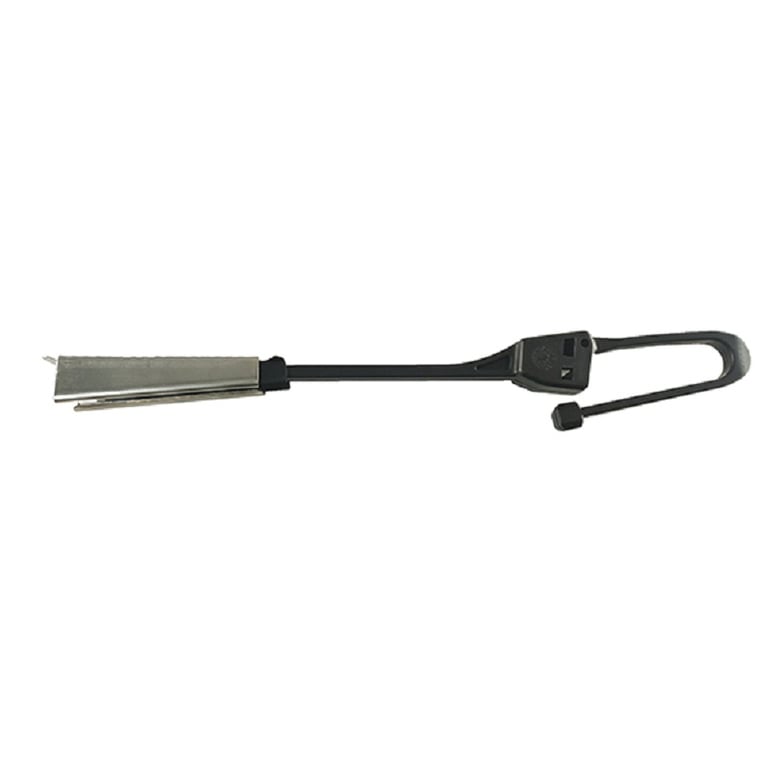

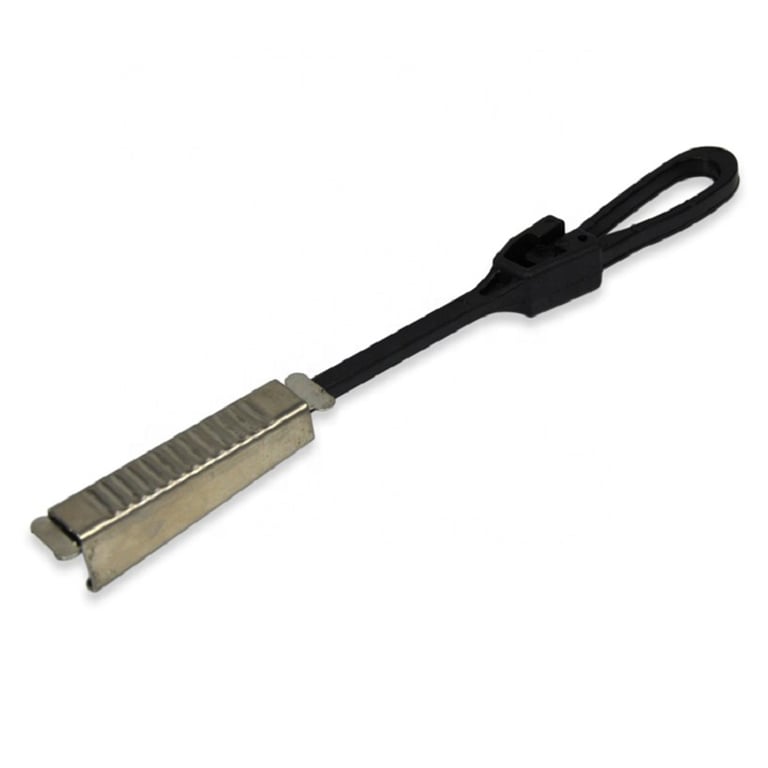

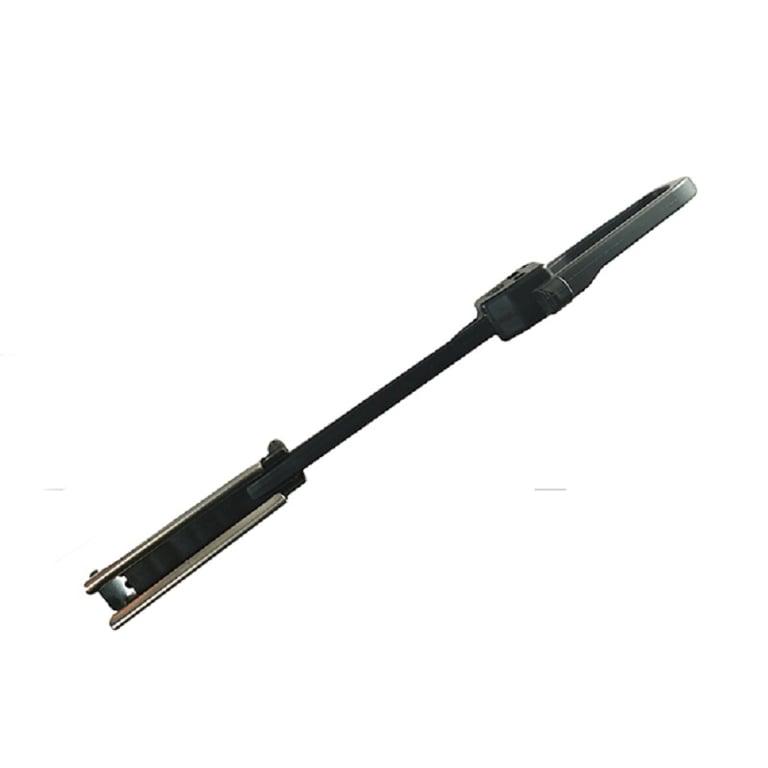

The fiber drop wire clamp ODWAC is composed of a body, a wedge and a shim. A solid wire bail is crimped to the wedge. All parts are made out of stainless steel. FIBERFUTURE offers this tension clamp with appropriate dead-end anchor FTTH ODWAC clamp, S-type, ACC and other FTTH clamps. All the assemblies passed the tensile tests, operation experience with temperatures ranging from -60 °C up to +60 °C test, temperature-cycling test.
|
Code |
Length |
Outer Material |
Thickness of outer sheath |
Tensile Strength |
||
|
ODWAC- HY |
220mm |
Strengthened Nylon and Stainless Steel |
2.85mm |
600N |
||
|
Cable Diameter |
Internal Material |
Insert Material |
Thickness of insert |
Weight |
||
|
3-7mm |
Nylon |
Nylon |
2.6mm |
33.2g |
||
Fiber optic clamps diameter range: 3-7mm;
Good corrosion resistant, durable and economical;
Made of Strengthened Nylon and Stainless Steel
Use with HC, YK, ODWAC-HY and hoop
Consists of three parts: a shell, a shim and a wedge equipped with a bail wire.
