YK Fiber Optic Drop Cable Clamp FTTH Hook

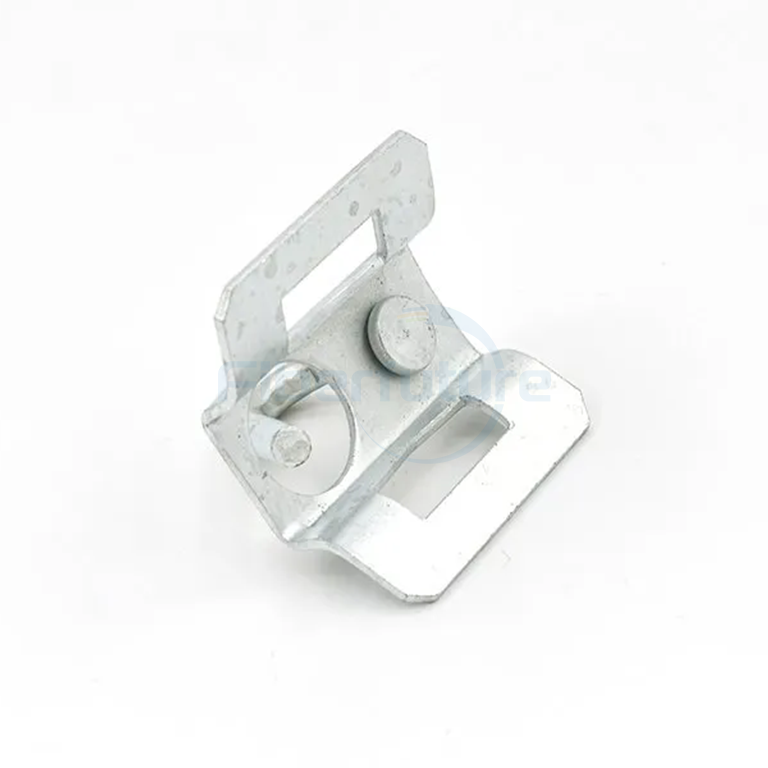

FIBERFUTURE® YK FTTH drop cable clamp is a universal bracket made of galvanized steel by cold stamping process, also known as FTTH hook (i.e., pole bracket for fiber to the home). It can be firmly installed on wooden, metal, concrete poles or buildings through stainless steel belts or bolts, and is mainly used to fix and guide the sagging fiber optic cable to ensure the safety and neatness of outdoor fiber optic network deployment.

Send Email

Features

The YK fiber clamp is crafted from galvanized steel via cold stamping, ensuring robustness.
Passed extensive tests including tensile strength checks, extreme temperature (-60 to +60°C) and temperature cycling trials.
Galvanization ensures longevity. Mountable with a stainless steel band (20-10mm) or four 4mm bolts.
Can handle minor loads when paired with an anchor clamp, ideal for securing FTTH cables and drop wires of varying sizes and lengths.

Technical Parameters

MODEL	Material	Size	Thickness of Steel	MBL	Weight
YK	Dacromet/Galvanized Steel	64×64×56mm	2.0mm	1.5kN	125g

Package Details

Customized packaging for YK product: 200 units per carton.
Carton dimensions (Width x Height x Depth): 38 cm x 29 cm x 26 cm.
Packaging material: Standard corrugated cardboard suitable for ocean freight or air cargo.
Gross weight per package: 25 kilograms.
