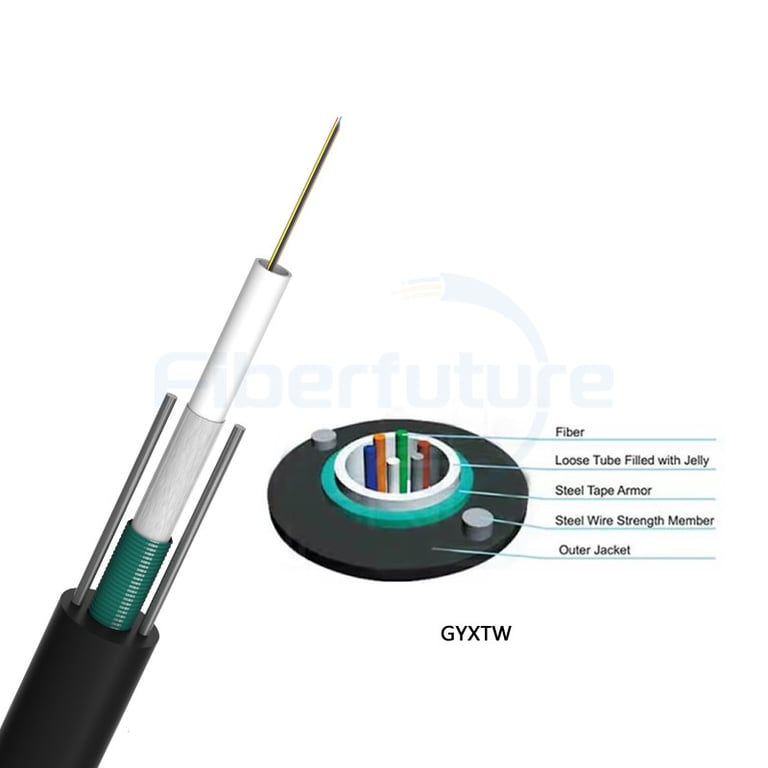

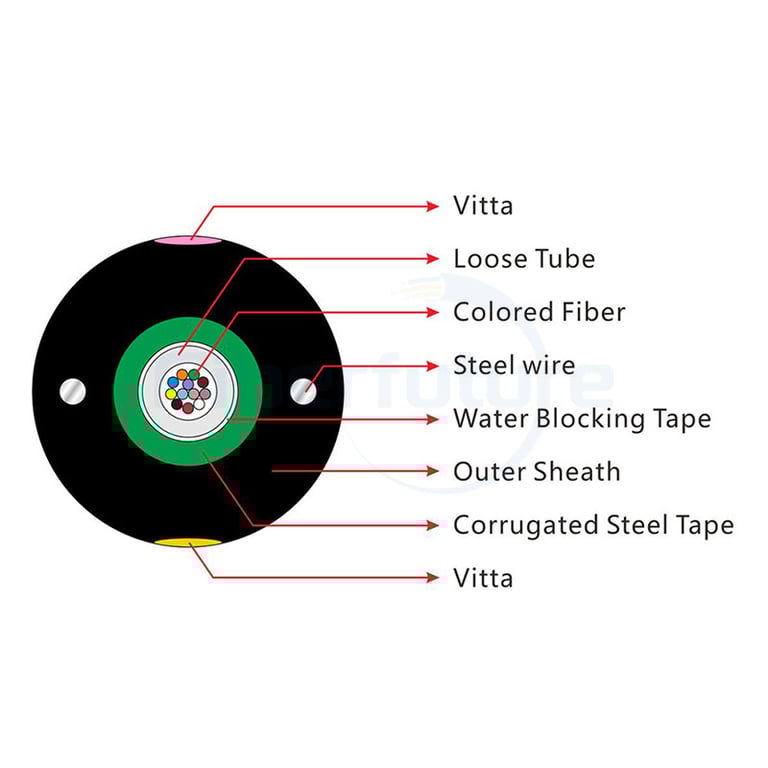

FIBERFUTURE® GYXTW cable, single-mode/multimode fibers are positioned in the loose tube, which is made of high modulus plastic materials and filled with filling compound. PSP is longitudinally applied around the loose tube, and water-blocking materials are distributed into interstices between them to guarantee the compactness and longitudinal water-blocking performance. Two parallel steel wires are placed at both sides of the cable core while PE sheath is extruded over it.
| Fiber Count | |
|---|---|
| Fiber Type |
GYXTW cable complies with Standard IEC 60793, IEC60794, TIA/EIA, ITU-T
| 01 - Blue | 02 - Orange | 03 - Green |
| 04 - Brown | 05 - Slate | 06 - White |
| 07 - Red | 08 - Black | 09 - Yellow |
| 10 - Violet | 11 - Pink | 12 - Aqua |
|
G.652 |
G.655 |
50/125μm |
62.5/125μm |
||
|
Attenuation (+20℃) |
@850nm |
|
|
≤3.0 dB/km |
≤3.0 dB/km |
|
@1300nm |
|
|
≤1.0 dB/km |
≤1.0 dB/km |
|
|
@1310nm |
≤0.36 dB/km |
≤0.40 dB/km |
|
|
|
|
@1550nm |
≤0.22 dB/km |
≤0.23dB/km |
|
|
|
|
Bandwidth (Class A) |
@850nm |
|
|
≥500 MHz·km |
≥200 MHz·km |
|
@1300nm |
|
|
≥1000 MHz·km |
≥600 MHz·km |
|
|
Numerical Aperture |
|
|
0.200±0.015NA |
0.275±0.015NA |
|
|
Cable Cut-off Wavelength |
≤1260nm |
≤1480nm |
|
|
|
| Parameters | Specification | |
| Fiber Count | 2 ~ 12 | |
| Cable Diameter (mm) | 8.0 ± 0.2 | |
| Cable Weight (kg/km) | 70 | |
| Tensile Strength (N) | Short Term | 1500 |
| Long Term | 600 | |
| Crush Resistance (N) | Short Term | 1000 |
| Long Term | 300 | |
| Bending Radius (mm) | Dynamic | 20D |
| Static | 10D | |
| Attenuation (After Cable) (dB/km) | MM Fiber @850nm | ≤ 3.0 (50/125μm) ≤ 3.3 (62.5/125μm) |
| MM Fiber @1300nm | ≤ 1.0 | |
| SM Fiber @1310nm | ≤ 0.36 | |
| SM Fiber @1550nm | ≤ 0.22 | |
| Operating Temperature (°C) | -40 ~ +70 | |
| Storage Temperature (°C) | -40 ~ +70 | |
