Duct FO Cable

Duct Installation Fiber Optic Cable

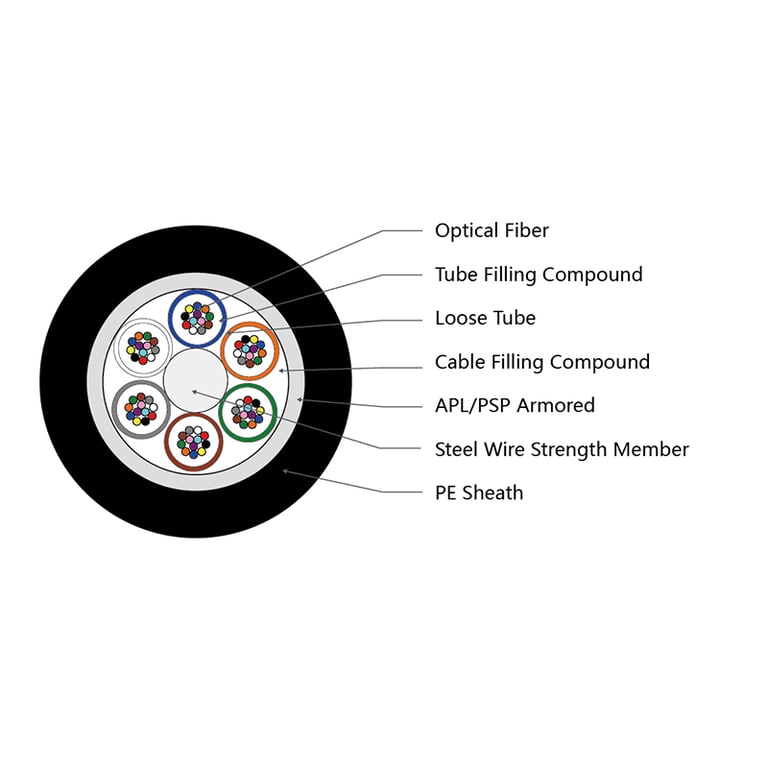

FIBERFUTURE® GYTA/S APL PSP Armored Stranded Loose Tube Optical Fiber Cable,The bending insensitive optical fibres are housed in loose tubes that are made of high-modulus plastic and filled with tube filling compound. The loose tubes with smaller size are stranded to form a cable core. The core is armored with laminated aluminum tape. Then a PE outer sheath is extruded.

Stranded Loose Tube Non-armored Cable GYTA
FIBERFUTURE® can customize GYFTA APL Stranded loose tube non-metallic strength member Light Armored Cable from 2-144 core, Support OEM & ODM.

Non-metallic Strength Member Non-armored Cable GYFTA
We can customize the number of cores of GYFTY fiber optic cables according to customer needs. The number of cores of FIBERFUTURE® GYFTY cable is 2, 6, 12, 24, 36, 48, Up to 144 cores.

Loose Tube Non-metallic Strength Member & Non-armored Cable GYFTY

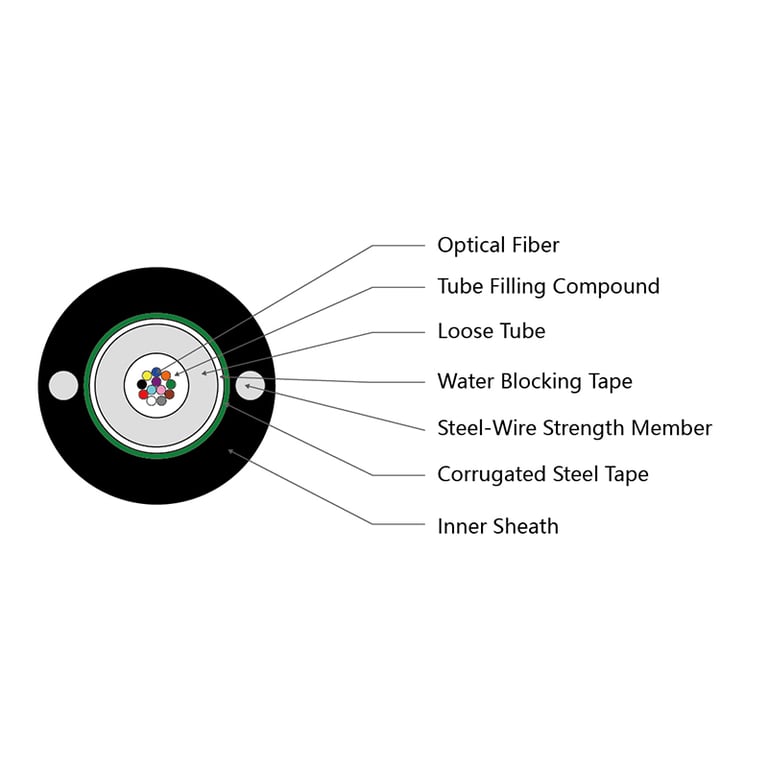

FIBERFUTURE® GYXTW cable, single-mode/multimode fibers are positioned in the loose tube, which is made of high modulus plastic materials and filled with filling compound. PSP is longitudinally applied around the loose tube, and water-blocking materials are distributed into interstices between them to guarantee the compactness and longitudinal water-blocking performance. Two parallel steel wires ar

Uni-tube Light-armored Cable GYXTW

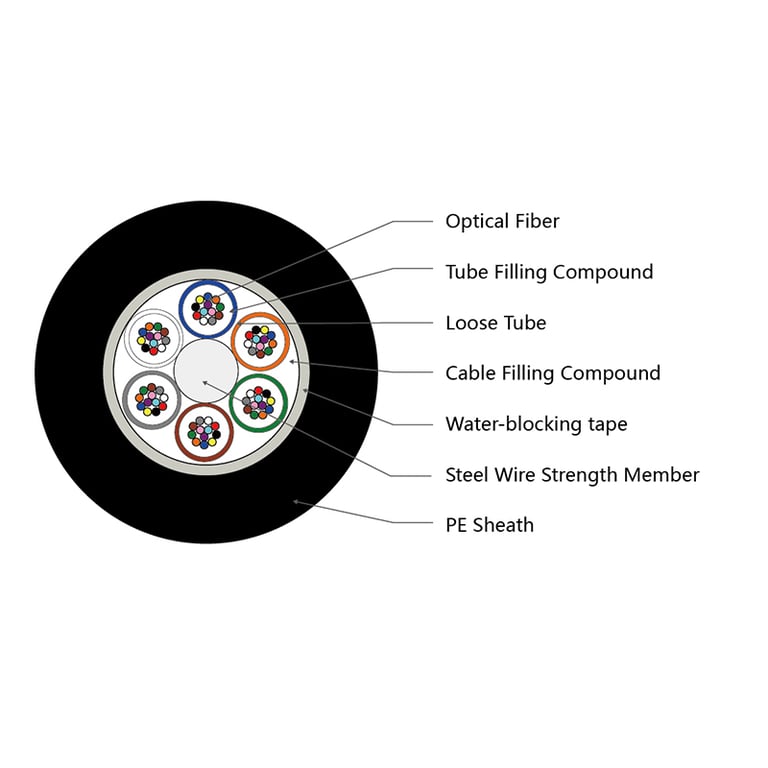

FIBERFUTURE® GYTA/S APL PSP Armored Stranded Loose Tube Optical Fiber Cable, We can customize the number of cores of GYTS fiber optic cables according to customer needs. The number of cores of FIBERFUTURE® GYTS cable is 2, 4, 6, 12, 24, 36, 48, Up to 144 cores.

Stranded Loose Tube Light-armored Cable GYTS

Duct fiber optic cables are normally installed underground, they are widely applied in metropolitan area network, access network, and used as feeder cable in a FTTH network. our main duct fiber optic cables include: GYTA, GYTS, GYXTW, GYFTA, GYFTY, Etc. OEM and ODM is available. FIBERFUTURE provides different numbers/types of duct fiber cables from 1 core, 2 core, 4 core, 6 core, 8 core, and 12 core, up to 216 cores, etc.

Picture	Product Name	Fiber Core	Inquire
	GYXTW Uni-tube Light Armored Fiber Optic Cable	2/4/6/8/12	Inquire
	GYTA Stranded Loose Tube Non-armored Fiber Cable	2/4/6/8/12/16/24/36/48/96/144/216	Inquire
	GYTS Stranded Loose Tube Light-armored Fiber Cable	2/4/6/8/12/16/24/36/48/96/144	Inquire
	GYFTA Non-metallic Strength Member Non-armored Fiber Cable	2/4/6/8/12/16/24/36/48/96/144/216	Inquire
	GYFTS GFRP CSM PSP Armored Stranded Loose Tube Optical Fiber Cable	2/4/6/8/12/16/24/36/48/96/144/216	Inquire
	GYFTY Loose Tube Non-metallic Strength Member & Non-armored Fiber Cable	2/4/6/8/12/16/24/36/48/96	Inquire

FAQS of Duct Fiber Optic Cable

Q

Do you have a price list?

A

We are a professional manufacturer of fiber optic cable and FTTx products. All of our fiber optic cables are made according to different specs or materials to meet clients’ unique requirements. Therefore, we don’t have a price list.
Q

Can I have my unique design(colors, marks, etc)?

A

Yes, your design such as cable color and marks are all welcome. Just send us color code and marks details.
Q

Can I have a custom cable designed and sample order?

A

We provide design service for all clients. MoQ of sample order is subject to the specific design.
Q

What is your MOQ?

A

Stocked model 1km above Custom length/structure/materials, MOQ 2km-10km
Q

What is the estimated production & delivery time?

A

5-10 days if the goods are in stock. 2-3 weeks if the goods are not in stock, mostly depends on quantity and production plan.
