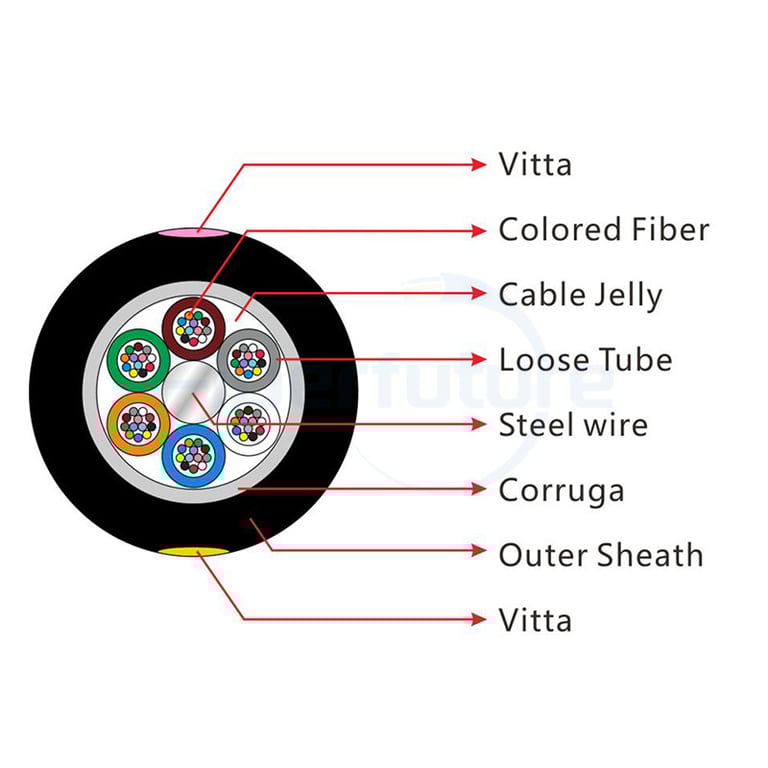

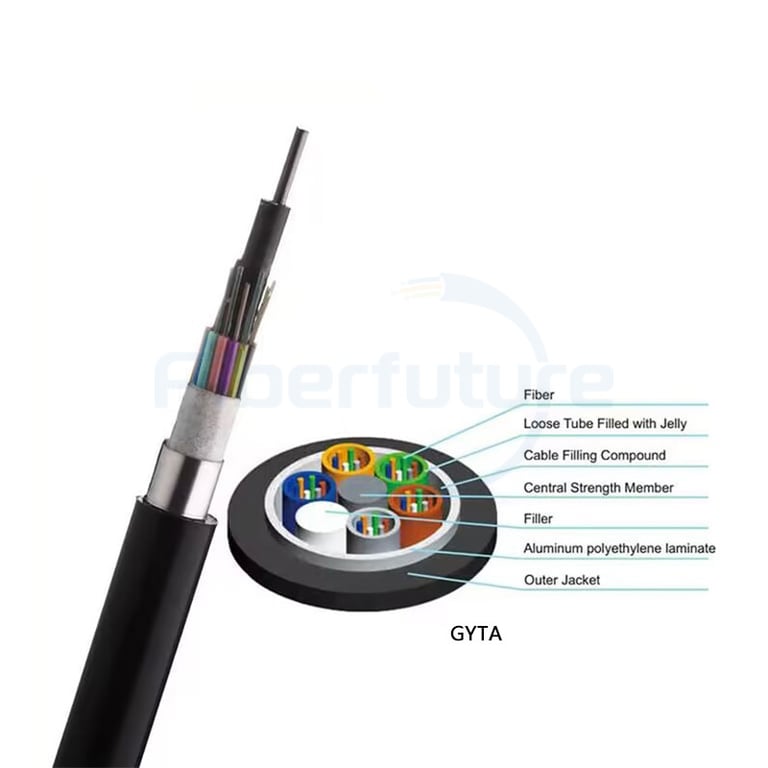

FIBERFUTURE® GYTA Cable APL Armored Stranded Loose Tube Optical Fiber Cable,The bending insensitive optical fibres are housed in loose tubes that are made of high-modulus plastic and filled with tube filling compound. The loose tubes with smaller size are stranded to form a cable core. The core is armored with laminated aluminum tape. Then a PE outer sheath is extruded. This structure has a smaller size to enhance installation density of fibres in ducts.
| Fiber Count | |
|---|---|
| Fiber Type | |
| Outer Sheath |
| 01 - Blue | 02 - Orange | 03 - Green |
| 04 - Brown | 05 - Slate | 06 - White |
| 07 - Red | 08 - Black | 09 - Yellow |
| 10 - Violet | 11 - Pink | 12 - Aqua |
|
G.652 |
G.655 |
50/125μm |
62.5/125μm |
||
|
Attenuation (+20℃) |
@850nm |
|
|
≤3.0 dB/km |
≤3.0 dB/km |
|
@1300nm |
|
|
≤1.0 dB/km |
≤1.0 dB/km |
|
|
@1310nm |
≤0.36 dB/km |
≤0.40 dB/km |
|
|
|
|
@1550nm |
≤0.22 dB/km |
≤0.23dB/km |
|
|
|
|
Bandwidth (Class A) |
@850nm |
|
|
≥500 MHz·km |
≥200 MHz·km |
|
@1300nm |
|
|
≥1000 MHz·km |
≥600 MHz·km |
|
|
Numerical Aperture |
|
|
0.200±0.015NA |
0.275±0.015NA |
|
|
Cable Cut-off Wavelength |
≤1260nm |
≤1480nm |
|
||
|
Technical Characteristics: |
|||||||||||||||||||||||||
|
Cable |
Fiber |
Stranded |
Cable |
Cable |
Bending Radius |
Tensile Strength |
Crush Resistance |
||||||||||||||||||
|
GYTA≤60 |
≤60 |
5 |
9.8 |
108 |
20D/10D |
240/800 |
300/1000 |
||||||||||||||||||
|
GYTA-62~72 |
62~72 |
6 |
10.4 |
129 |
20D/10D |
300/850 |
300/1000 |
||||||||||||||||||
|
GYTA-74~96 |
74~96 |
8 |
10.6 |
132 |
20D/10D |
350/1200 |
300/1000 |
||||||||||||||||||
|
GYTA-98~120 |
98~120 |
10 |
12.1 |
161 |
20D/10D |
450/1400 |
300/1000 |
||||||||||||||||||
|
GYTA-122~144 |
122~144 |
12 |
13.6 |
198 |
20D/10D |
700/2000 |
300/1000 |
||||||||||||||||||
| S/N | Item | Test Method | Acceptance Condition |
| 1 |
Tensile Strength IEC 60794-1-E1 |
- Load: 1.5KN - Length of cable under load: 50 m - load time: ≥1min. |
- Loss change £ 0.1 dB @1550 nm - No fiber break and no sheath damage. |
| 2 |
Crush Test IEC 60794-1-E3 |
- Load: 1.0KN/100mm - Load time: ≥1min. |
- Loss change £ 0.1 dB @1550 nm - No fiber break and no sheath damage. |
| 3 |
Impact Resistance IEC 60794-1-E4 |
- Points of impact: 3 -Times of per point: 1 - Impact energy:4.5Nm - Radius of hammer head: 12.5mm |
- Loss change £ 0.1 dB @1550 nm - No fiber break and no sheath damage. |
| 4 |
Repeated Bending IEC 60794-1-E6 |
- Bending radius: 20 x cable diameter - Load: 150 N - Flexing rate: 3 sec/cycle - No. of cycle: 30 |
- Loss change £ 0.1 dB @1550 nm - No fiber break and no sheath damage. |
| 5 |
Torsion IEC 60794-1-E7 |
- Length: 1 m - Load: 150 N - Twist rate: 1 min/cycle - Twist angle: ±90° - No. of cycle: 10 |
- Loss change £ 0.1 dB @1550 nm - No fiber break and no sheath damage. |
| 6 |
Water Penetration Test IEC 60794-1-F5B |
- Height of water: 1 m - Sample length: 3 m - Test time: 24 hours |
- No water shall have leaked from the opposite end of cable. |
| 7 |
Temperature Cycling Test IEC 60794-1-F1 |
- Temperature step: +20oC→-40oC→+70C →+20oC - Time per each step: 12 hours - Number of cycle: 2 |
- Loss change £ 0.05 dB/km@1550 nm - No fiber break and no sheath damage. |
| 8 |
Compound Flow IEC 60794-1-E14 |
- Sample length: 30 cm - Temp: 70°C ± 2°C - Time: 24 hours |
- No compound flow |

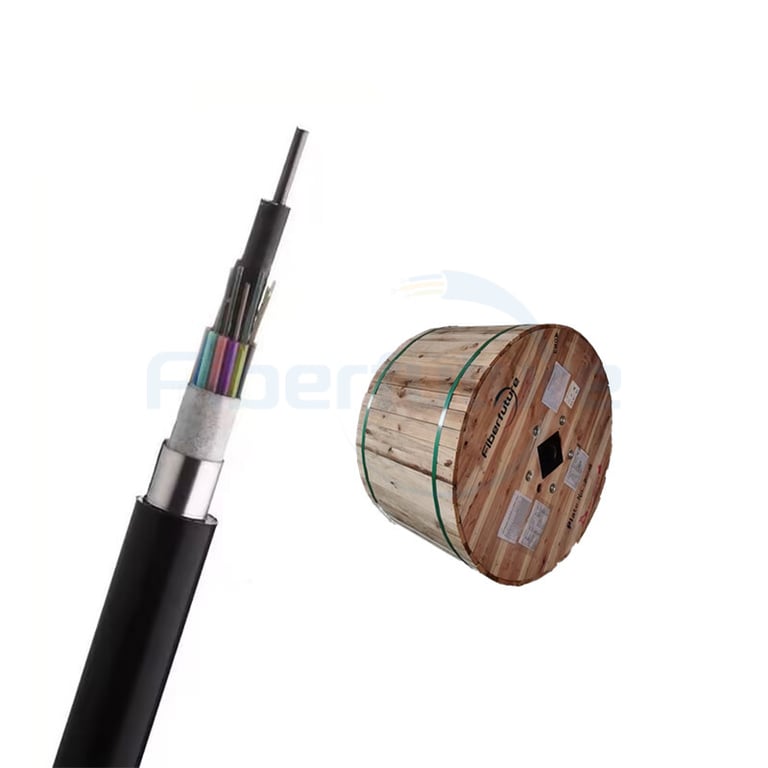

1. Each single cable length been wound on an iron stand-wooden composite or pure wooden drum.
2. Covered by plastic buffer sheet.
3. Sealed by strong wooden battens.
4. At least 1m of cable inner end should be reserved for testing.
Note: The value “D” contain the seal dimension
| Cable Type | Drum length | D | d | B | b |
| GYTA | m | mm | mm | mm | mm |
| 24F | 4000 | 1180 | 450 | 680 | 630 |
