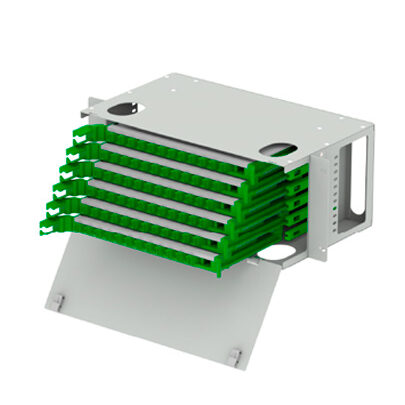

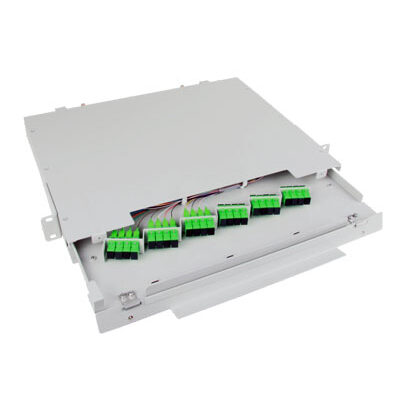

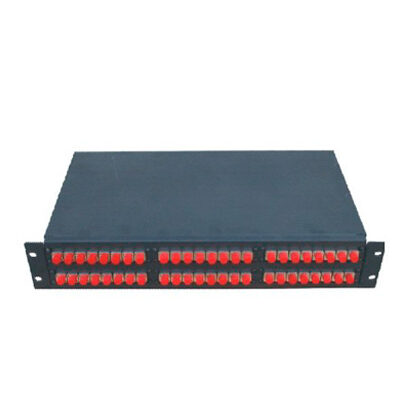

FIBERFUTURE® Optical fiber distribution frame (ODF) is a frame used to provide cable interconnections between communication facilities, which can integrate fiber splicing, fiber termination, fiber optic adapters & connectors and cable connections together in a single unit.
• Cable clamping and strength member fixation system
• Changeable adapter panel suitable for various adapters
• Clear fiber number marking on adapter panel and for pigtails
| Applicable Adapter | SC, FC, ST, duplex SC, duplex LC, quadplex LC, etc. | |
| Capacity | 12 fibers, 24 fibers, 36 fibers, 48 fibers, 72 fibers, 96 fibers, etc. | |
| Material | cold rolled steel or aluminum | |
| Color | black, white or grey | |
| Dimension | 482(W)*250(D)*44(H)mm (1U) | |
| 482(W)*250(D)*88(H)mm (2U) | ||
| Installation Method | 19”rack mount | |
| Splice Tray Capacity | 24 fibers/tray | |
| Packing for 1U | Quantity | 5pcs/carton |
| Gross Weight | 19.2kgs/carton | |
| Carton Size | 53*30*40cm | |
|
|
||
