Loose Tube Non-metallic Strength Member & Non-armored Cable GYFTY

Loose Tube Non-metallic Strength Member & Non-armored Cable GYFTY

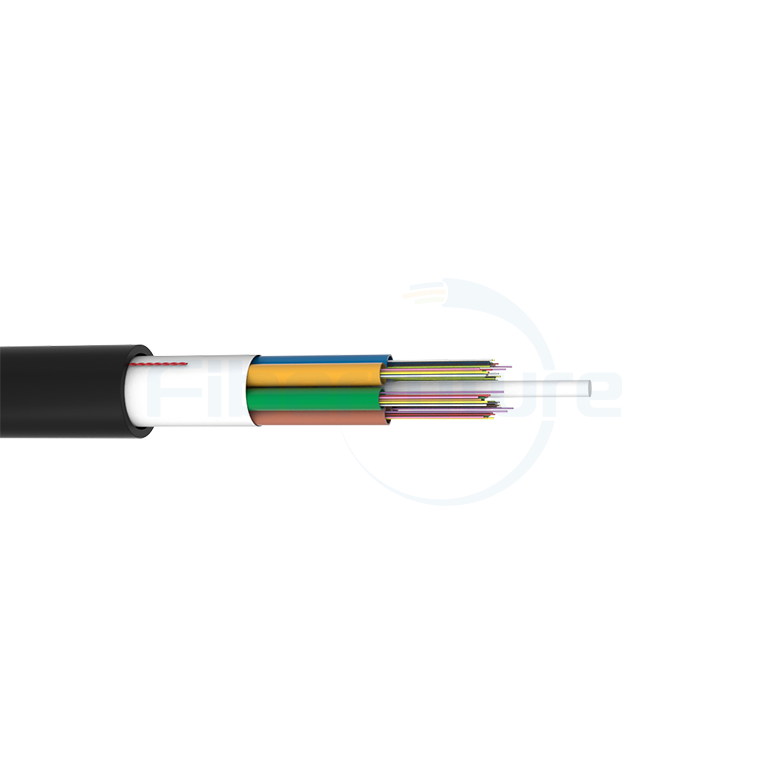

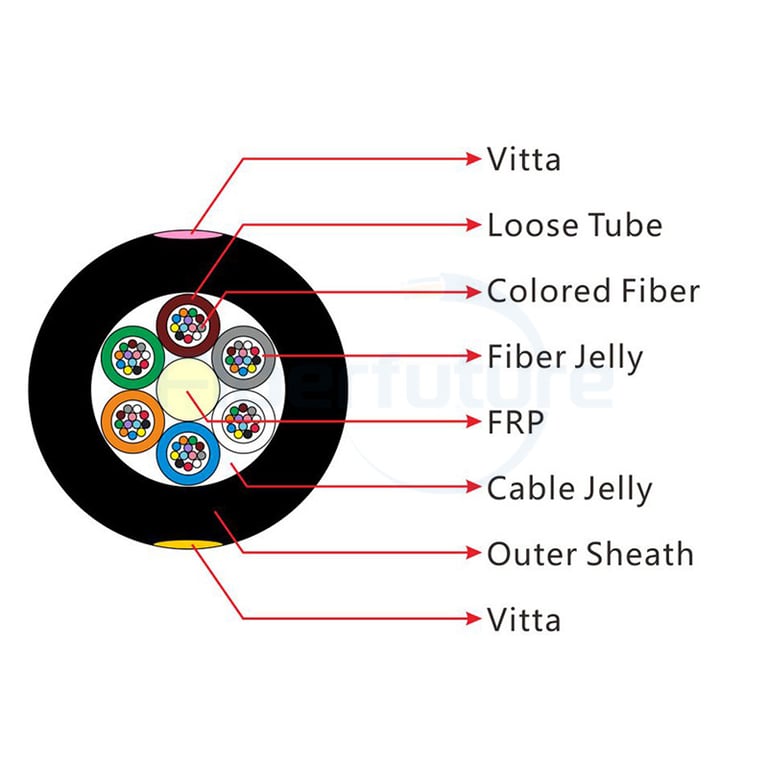

FIBERFUTURE® stranded loose tube non-metallic strength member and non-armored cable (GYFTY) construction is that 250um fibers are positioned in a loose tube which is made of high modulus plastic and filled with a water-resistant filling compound; A fiber reinforced plastic (FRP), sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a non-metallic strength member; Tubes are stranded around the strength member into a compact and circular cable core; After the cable core is filled with the filling compound which protects it from water ingress, the cable is completed with a polyethylene (PE) sheath.

APPLICATIONS

Fiber Count
Fiber Type

Send Email

Main Features

Good mechanical and temperature performance
High hydrolysis resistance and high strength loose tube
Good crush resistance and flexibility
High tensile strength ensured by FRP central strength member
Good anti-electromagnetism due to non-metallic central strength member (FRP)

Standards

GYFTY cable complies with Standard IEC 60793, IEC60794, TIA/EIA, ITU-T

Color of Fiber and Loose tube

01 - Blue	02 - Orange	03 - Green
04 - Brown	05 - Slate	06 - White
07 - Red	08 - Black	09 - Yellow
10 - Violet	11 - Pink	12 - Aqua

Optical Charactristic

G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm			≤3.0 dB/km	≤3.0 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength		≤1260nm	≤1480nm

Specification

Parameters		Specification
Fiber Count		2~30	32~36	38~60	62~72	74~96	98~120	122~144
Cable Diameter (mm) (±0.3 )		8.7	9.0	9.3	9.8	11.0	12.3	13.6
Cable Weight (kg/km)		62	66	69	77	97	120	145
Tensile Strength (N)	Short Term	1500
	Long Term	600
Crush Resistance (N)	Short Term	1000
	Long Term	300
Bending Radius (mm)	Dynamic	20D
	Static	10D
Attenuation (After Cable) (dB/km)	MM Fiber @850nm	≤3.0 (50/125μm) ≤3.3 (62.5/125μm)
	MM Fiber @1300nm	≤1.0
	SM Fiber @1310nm	≤0.36
	SM Fiber @1550nm	≤0.22
Operating Temperature (°C)		-40 ~ +70
Storage Temperature (°C)		-40 ~ +70
