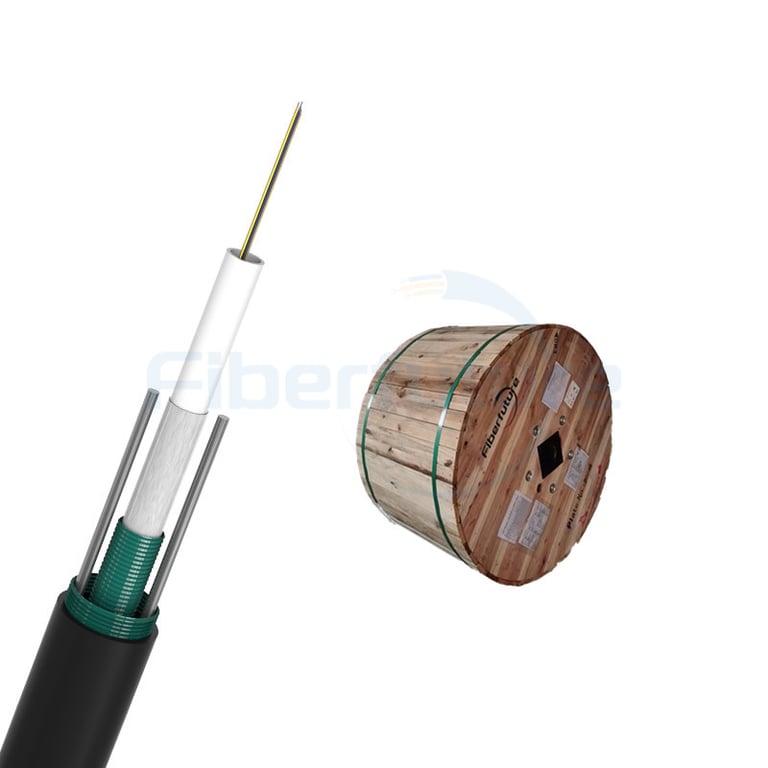

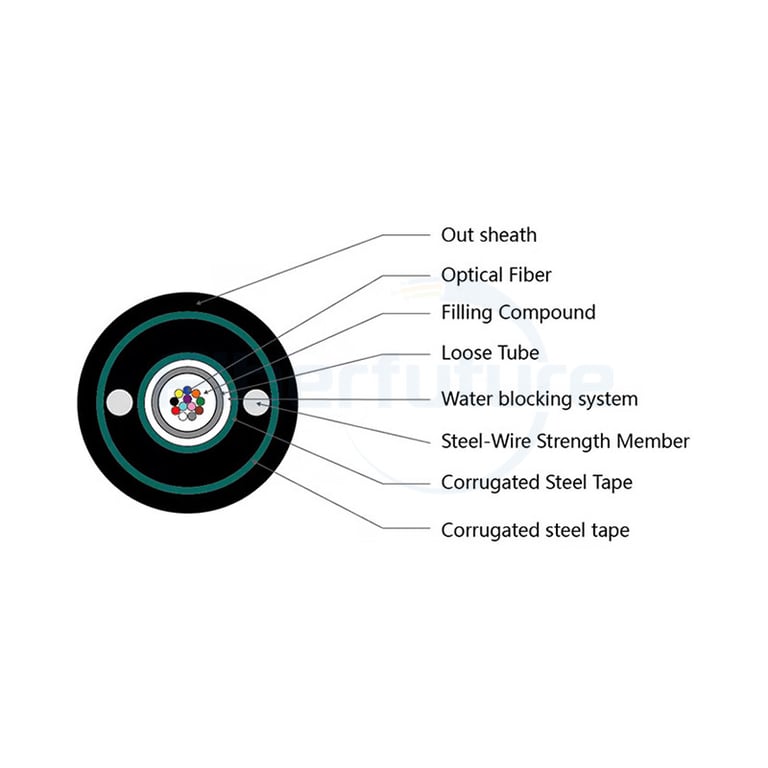

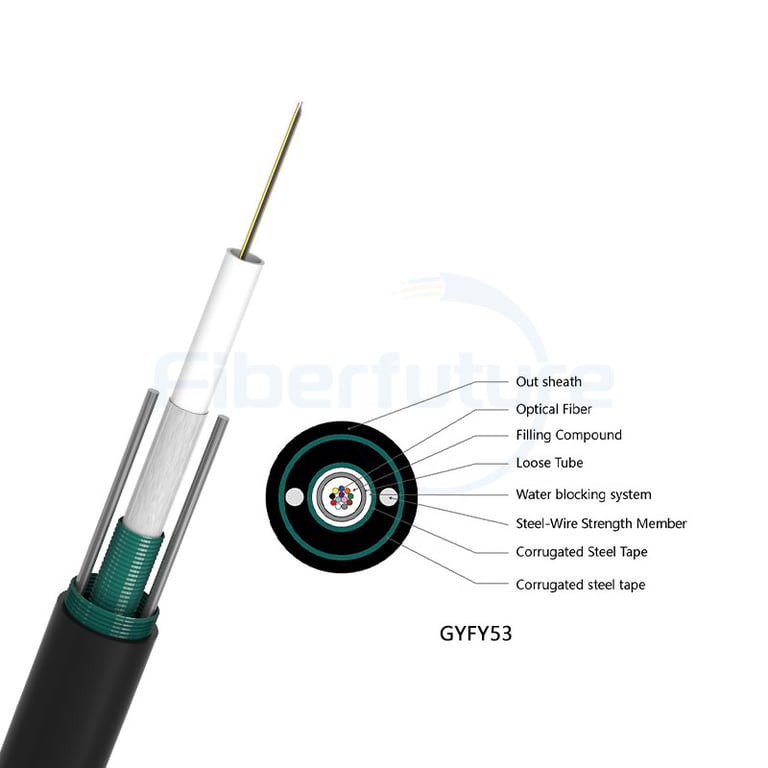

FIBERFUTURE® GYXTW53 cable is a central loose tube fiber cable with double steel tape and double PE jacket.GYXTW53 fiber cable is a small size and light weight, which makes the cable with superior bending resistance and is convenient for installation work.
| Fiber Count | |
|---|---|
| Fiber Type |
GYXTW53 cable complies with Standard IEC 60793, IEC60794, TIA/EIA, ITU-T
| 01 - Blue | 02 - Orange | 03 - Green |
| 04 - Brown | 05 - Slate | 06 - White |
| 07 - Red | 08 - Black | 09 - Yellow |
| 10 - Violet | 11 - Pink | 12 - Aqua |
|
|
G.655 |
50/125μm |
62.5/125μm |
||
|
Attenuation (+20℃) |
@850nm |
|
|
≤3.0 dB/km |
≤3.0 dB/km |
|
@1300nm |
|
|
≤1.0 dB/km |
≤1.0 dB/km |
|
|
@1310nm |
≤0.36 dB/km |
≤0.40 dB/km |
|
|
|
|
@1550nm |
≤0.22 dB/km |
≤0.23dB/km |
|
|
|
|
Bandwidth (Class A) |
@850nm |
|
|
≥500 MHz·km |
≥200 MHz·km |
|
@1300nm |
|
|
≥1000 MHz·km |
≥600 MHz·km |
|
|
Numerical Aperture |
|
|
0.200±0.015NA |
0.275±0.015NA |
|
|
Cable Cut-off Wavelength |
≤1260nm |
≤1480nm |
|
|
|
|
No. of cable |
4 |
||
|
Fiber Model |
G.652D |
||
|
Strength Member |
Material |
Steel Wire |
|
|
Diameter（±0.05）mm |
0.9 |
||
|
Loose Tube |
Material |
PBT |
|
|
Diameter（±0.06）mm |
2.0 |
||
|
Thickness（±0.03）mm |
0.32 |
||
|
The Max. Core NO./Tube |
4 |
||
|
Colour |
White |
||
|
Water Blocking layer（Material） |
Water Blocking Tape |
||
|
Armoring |
Material |
Steel Strip |
|
|
Thickness（±0.03）mm |
0.25 |
||
|
Inner Sheath |
Material |
MDPE |
|
|
Thickness（±0.2）mm |
0.9 |
||
|
Outer Sheath |
Material |
MDPE |
|
|
Thickness（±0.2）mm |
1.8 |
||
|
Cable Diameter（±0.2）mm |
13.0 |
||
|
Cable Wetght（±5）kg/km |
165 |
||
|
Min. bending radius |
Without Tension |
12.5×Cable-φ |
|
|
Under Maximum Tension |
25×Cable-φ |
||
|
Temperature range （℃） |
Installation |
-20~+60 |
|
|
Transport&Storage |
-40~+70 |
||
|
Operation |
-40~+70 |
||
