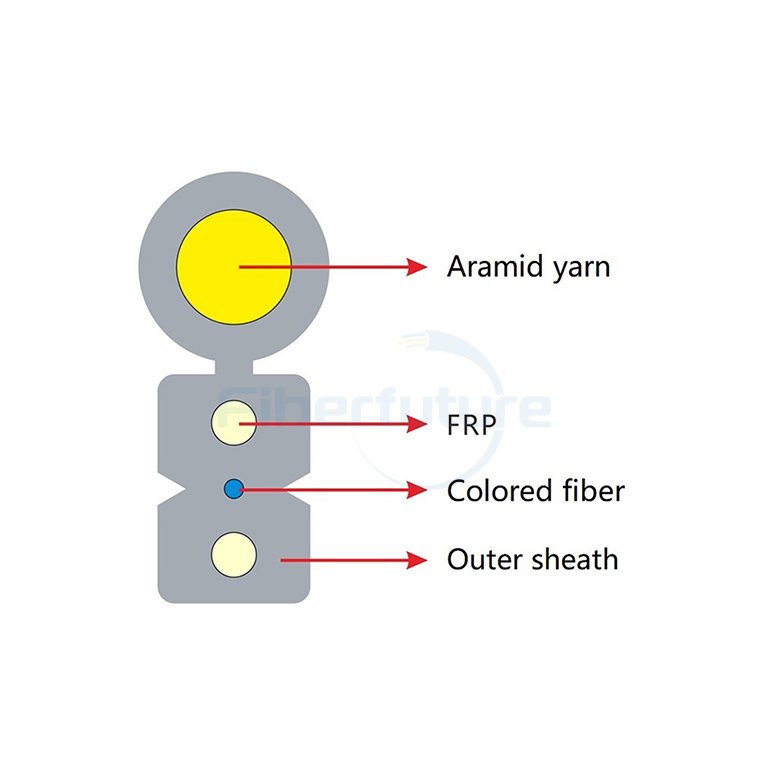

GJYXFFCH High Strength Aramid Yarn Butterfly Fiber Drop Cable

FIBERFUTURE GJYXFFCH drop cable features superior tensile strength and corrosion resistance, utilizing high-strength aramid yarn as reinforcement. Designed for direct installation in complex environments, it offers stable and reliable optical fiber communication solutions. Its distinctive butterfly design facilitates easy handling and maintenance, ensuring efficient data transmission.


APPLICATIONS
indoor-note outdoor aerial self-supporting direct-burriet e e e
Fiber Count
Fiber Type

Main Features

  • Compact outer diameter, lighter than traditional self-supporting outdoor 8-figure cables, for easier installation.
  • High resistance to pressure and tension, capable of withstanding significant wind speeds.
  • V-shaped design simplifies stripping and field installation.
  • Flame-retardant outer sheath meets outdoor fire safety and environmental standards.

Environmental Characteristics

Storage/Operating Temperature : -40℃ to + 70℃

Optical Characteristics





G.652

G.657

50/125μm

62.5/125μm

Attenuation (+20℃)

@850nm

 -

  -

≤3.5dB/km

≤3.5dB/km

@1300nm

  -

  -

≤1.5dB/km

≤1.5dB/km

@1310nm

≤0.34dB/km

≤0.34dB/km

  -

  -

@1550nm

≤0.22dB/km

≤0.22dB/km

 -

  -

Bandwidth (Class A)

@850nm

 -

 -

≥500MHZ·km

≥200MHZ·km

@1300nm

  -

  -

≥1000MHZ·km

≥600MHZ·km

Numerical Aperture

 -

  -

  -

0.200±0.015NA

0.275±0.015NA

Cable Cutoff Wavelength

 -

≤1260nm

≤1260nm

  -

 -

Technical Parameter

Cable Type

Fiber Count

Cable Diameter

mm

Cable Weight

Kg/km

Tensile Strength

Long/Short Term

N

Crush Resistance

Long/Short Term

N/100m

Bending Radius

Static/Dynamic

mm

GJYXFFCH

1~2 Core

2.5*5.65

19.4

500/1000

1000/2200

30D/15D

Delivery Length

Standard length: 1000m; Other length available
