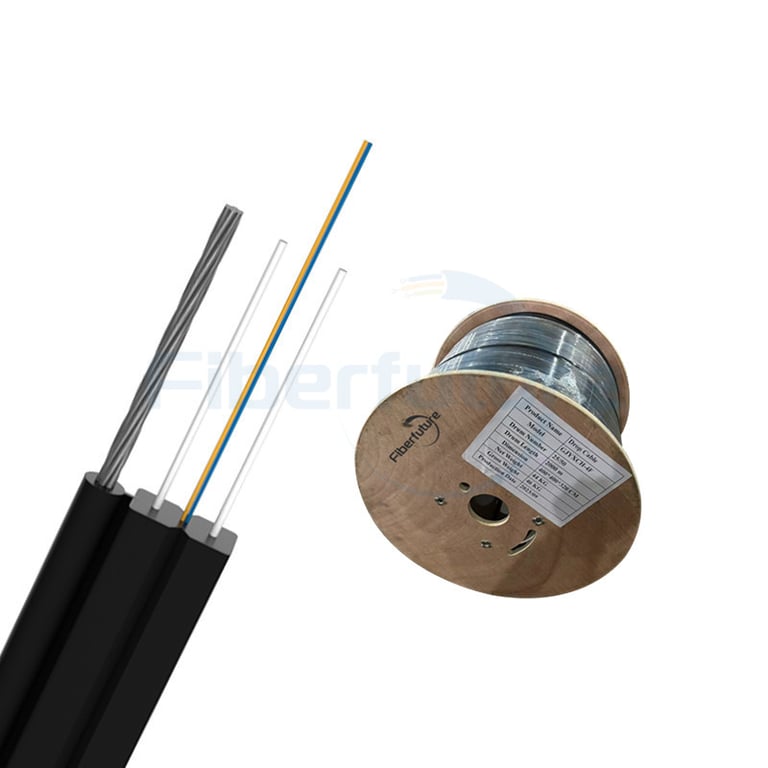

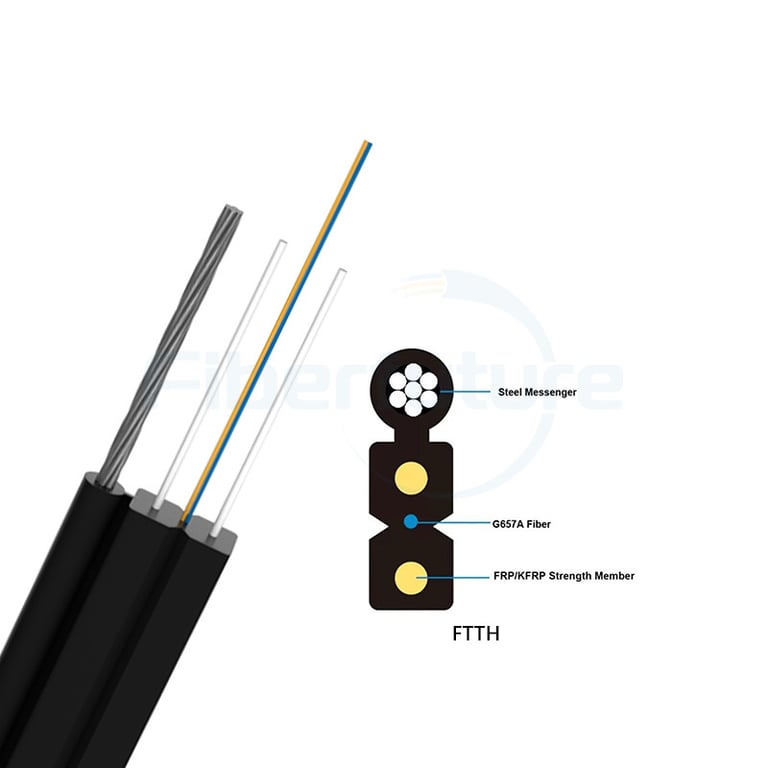

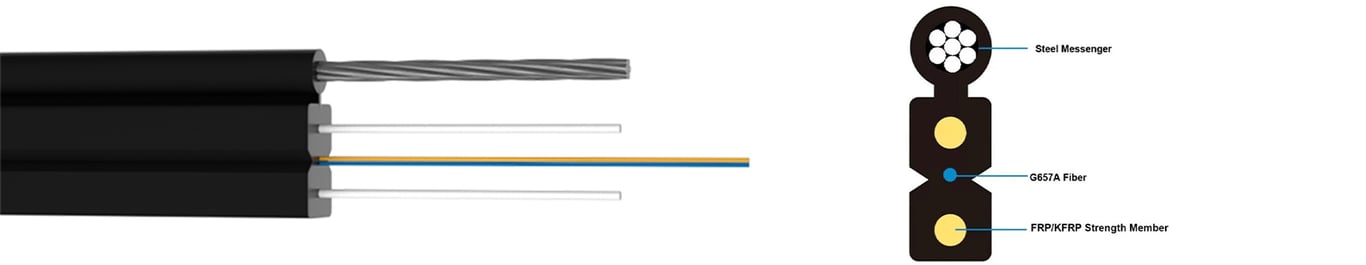

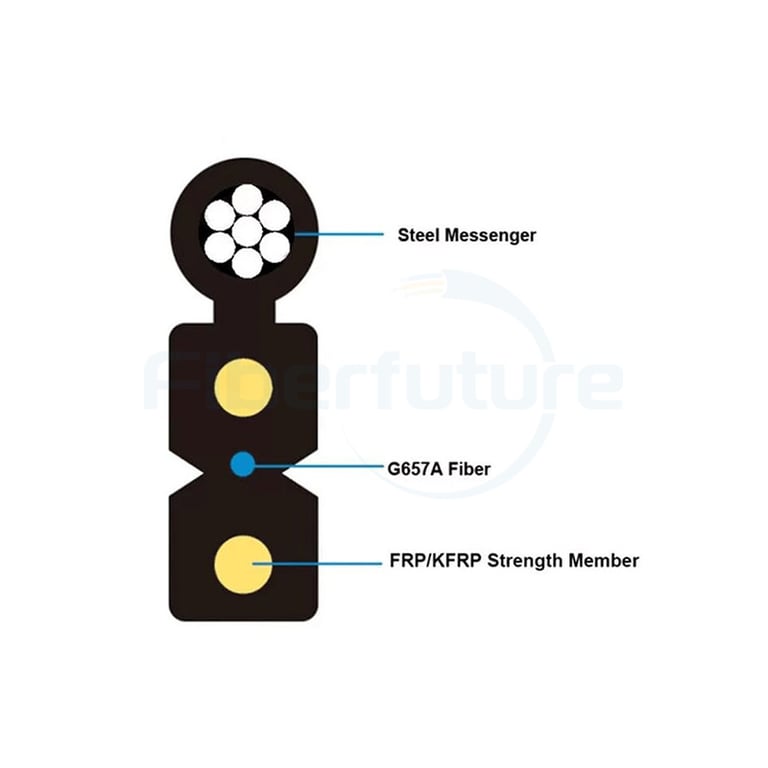

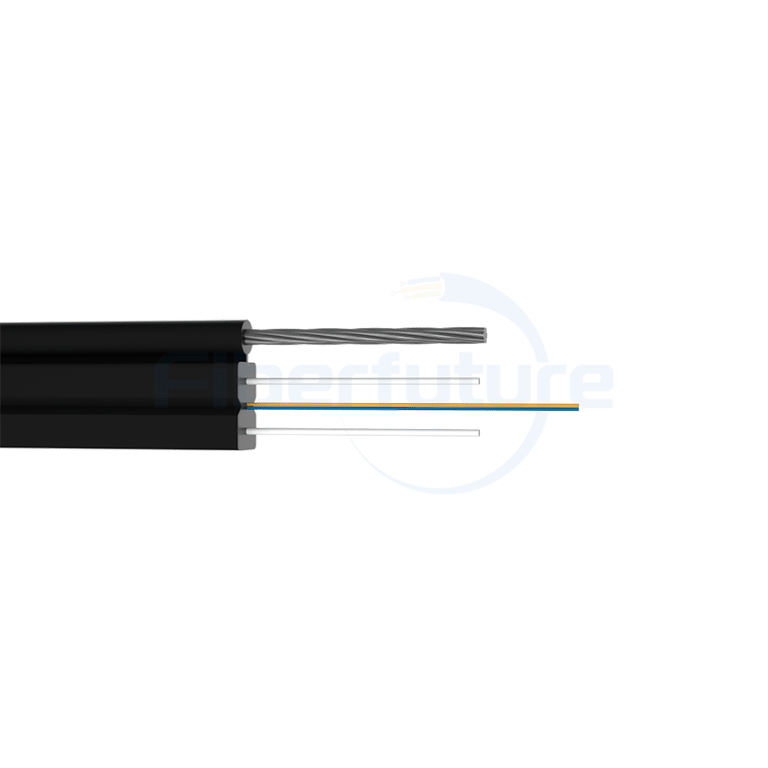

The typical self-supporting bow-type drop fiber optic cable consists of GJYXFCH/GJYXCH cable and an additional strength member with stranded steel wire（The Diameter is 0.33mm*7).
Fiber Type: G652D; G657A1; 657A2;
Fiber Count: 1-12 Cores
Messenger: 1.0, 1.2mm Optional
Strength Member: Steel Wire, FRP, KFRP
Jacket: PVC/LSZH
Color: Black /Grey/White
| Fiber Count | |
|---|---|
| Fiber Type |
Fiber Type: G652D; G657A1; 657A2;
Fiber Count: 1-12 Cores
Messenger: 1.0, 1.2mm Optional
Strength Member: Steel Wire, FRP, KFRP
Jacket: PVC/LSZH
Color: Black /Grey/White
Operating :-20℃ to 60℃
Storage :-20℃ to 60℃
|
Fiber Counts |
Cable Diameter (mm) | Weight
(kg) |
Tensile Strength
Long/Short Term (N) |
Crush Resistance
Long/Short Term (N/100mm) |
Bending Radius Static/Dynamic (mm) | |||
| GJYXFCH-1 | 2.0*5.0 | 18.2 | 600 | 300 | 2200 | 1000 | 15D | 30D |
| GJYXFCH-2 | 2.0*5.0 | 18.2 | 600 | 300 | 2200 | 1000 | 15D | 30D |
| GJYXFCH-4 | 2.0*5.1 | 18.5 | 600 | 300 | 2200 | 1000 | 15D | 30D |
| GJYXFCH-6 | 2.0*6.1 | 18.5 | 600 | 300 | 2200 | 1000 | 15D | 30D |
| GJYXCH-1 | 2.0*5.0 | 18.2 | 600 | 300 | 2200 | 1000 | 15D | 30D |
| GJYXCH-2 | 2.0*5.0 | 18.2 | 600 | 300 | 2200 | 1000 | 15D | 30D |
| GJYXCH-4 | 2.0*5.1 | 18.5 | 600 | 300 | 2200 | 1000 | 15D | 30D |
| GJYXCH-6 | 2.0*6.1 | 18.5 | 600 | 300 | 2200 | 1000 | 15D | 30 |
| Loading quantity suggestion | ||
| 20'GP container | 1KM/roll | 600KM |
| 2KM/roll | 650KM | |
| 40'HQ container | 1KM/roll | 1100KM |
| 2KM/roll | 1300KM | |

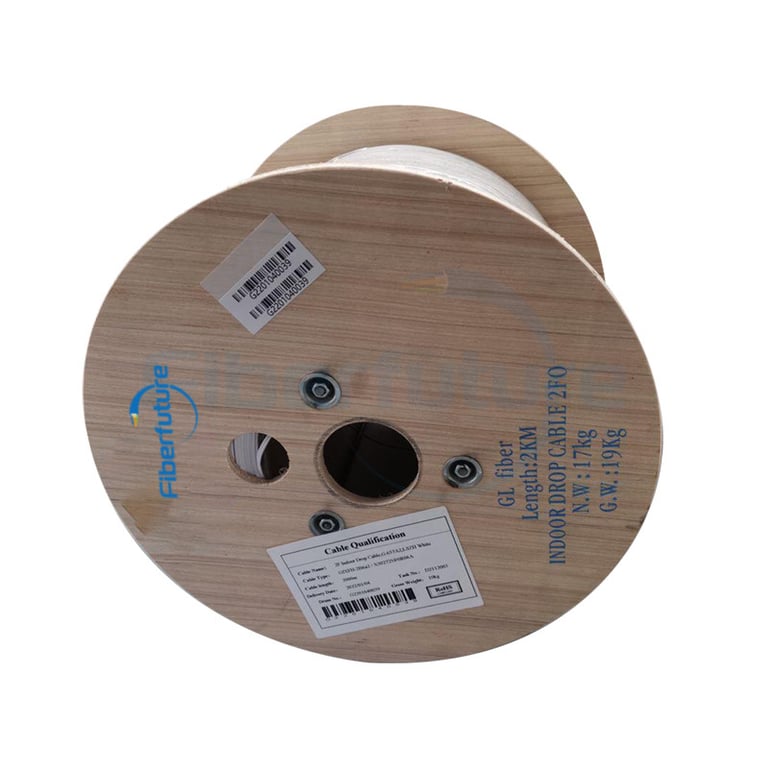

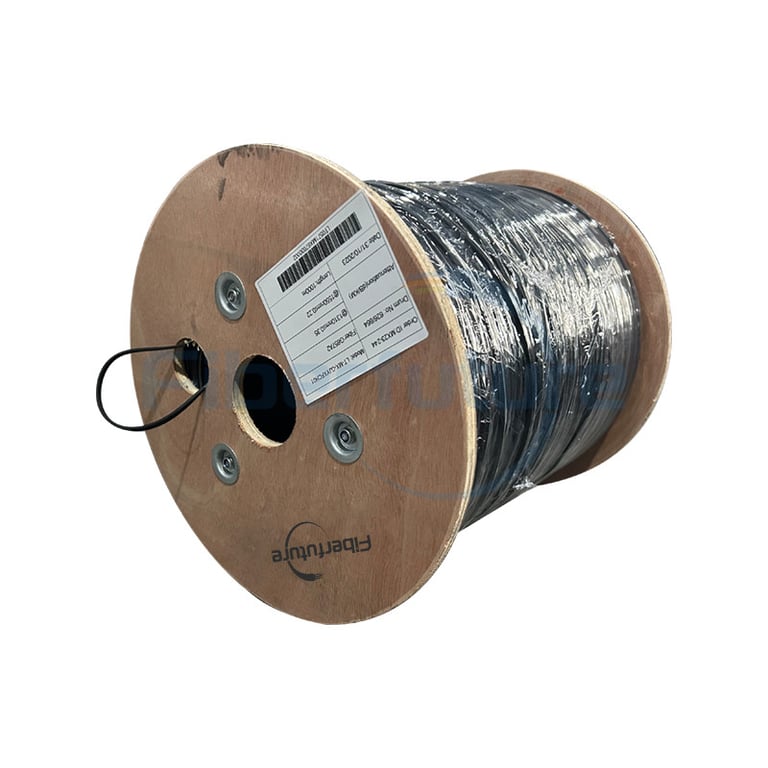

*Standard length:1000m;Other length availabe
*The above is just a suggestion for container loading, please consult our sales department for the specific quantity
