EPFU Air Blown Fiber Unit

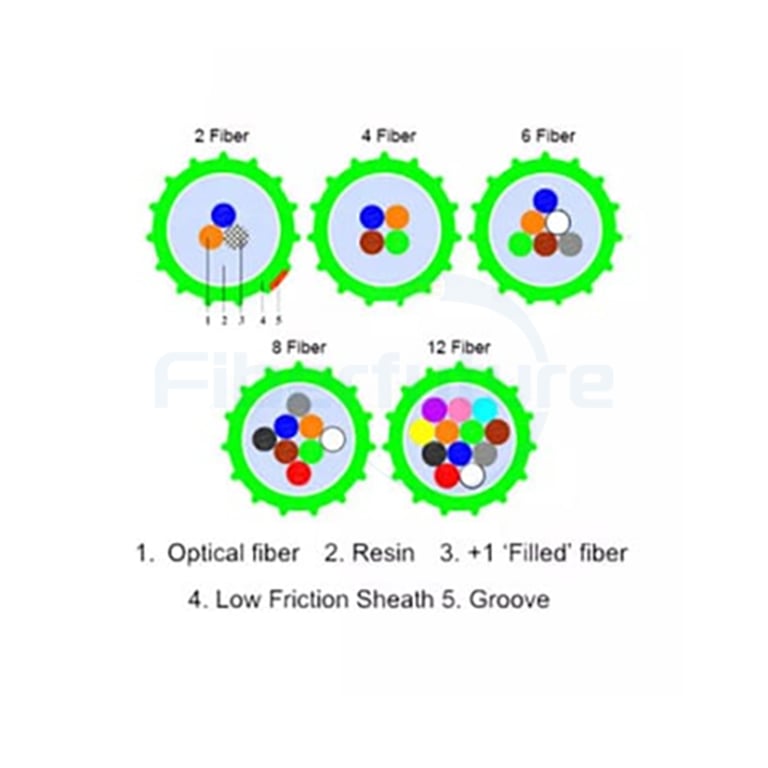

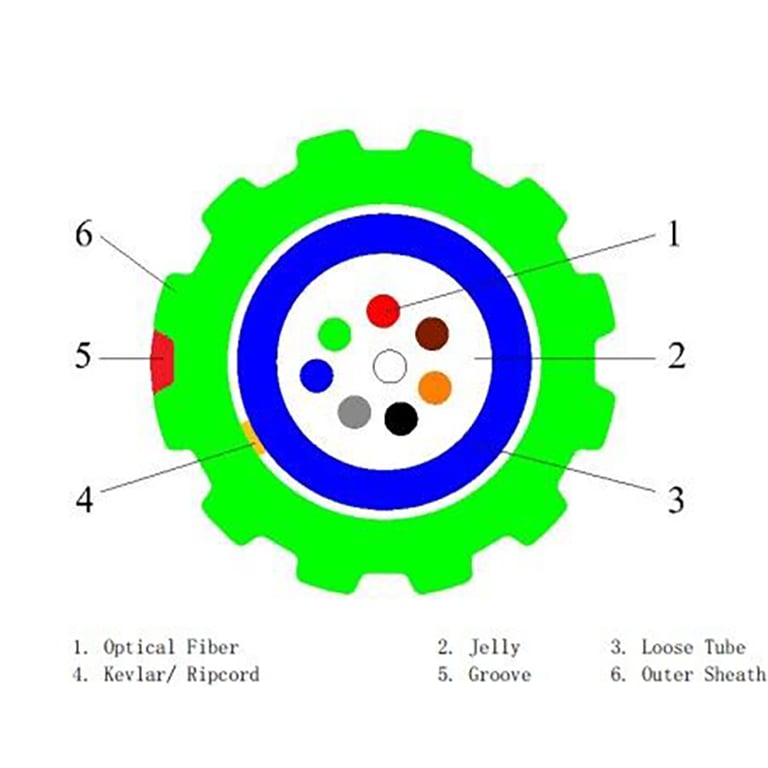

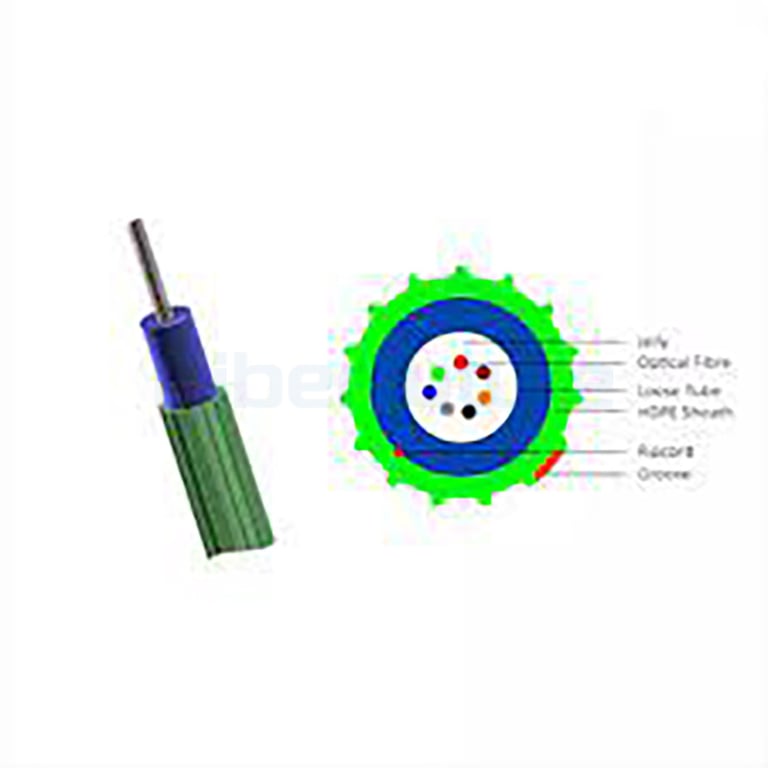

FIBERFUTURE® Enhanced Performance Fibre Units (EPFU),Optical fibres and filler elements are arranged in curing photosensitive resins to form a cable core. A low friction sheath is extruded outside the core.

EPFU: cable type | 2: fiber count | G652D: G652D, G657A1, G657A2 available | LC/APC: connector type

Please be free to buy our Enhanced Performance Fiber Units (EPFU) products with competitive price. The customized service and the quotation consultation are available.

APPLICATIONS

Fiber Count
Fiber Type
Outer Sheath

Send Email

Application

The cable can be used as the indoor drop cable in FTTH networks and can be laid by air blowing
with a handheld device,to connect the family multimedia information boxes with the access point for subscribers.

Main Features

Smaller diameter
Frees up capital to expand network and client base
Network design flexibility
5/3.5mm microduct suitable
Easy to upgrade
Greater blowing distance
Fiber: G.G652D, G.657A1, G.657A2

Standards

Unless otherwise specified in this specification, all requirements shall be mainly in accordance with the following standard specifications.

Optical fiber:ITU-T G.651、G.652、G.655、G.657 IEC 60793-2-10、IEC 60793-2-50
Optical Cable:IEC 60794-1-2、IEC 60794-5

Attenuation

fiber Type	SM G.652D、G.655、G.657	MM 62.5/125
Attenuation	0.38dB/km max @1310nm 0.26dB/km max @1550nm	3.5dB/km max @850nm 1.5dB/km max @1300nm

Specification

Type	Fibre count	O.D. (mm)	Weight (Kg/km)	Tensile strength Long/short term （N）	Crush resistance short term （N/100mm）
EPFU-02B6a2	2	1.1	1.1	0.15G/0.5G	100
EPFU-04B6a2	4	1.1	1.1	0.15G/0.5G	100
EPFU-06B6a2	6	1.3	1.3	0.15G/0.5G	100
EPFU-08B6a2	8	1.5	1.8	0.15G/0.5G	100
EPFU-12B6a2	12	1.6	2.2	0.15G/0.5G	100

Note: G is the weight of optical cable per km

Blowing Characteristics

Fibre Count

Duct diameter

5.0/3.5 mm

Blowing pressure

8bar/10bar

Blowing distance

500m/1000m

500m/800m

Blowing time

15min/30min

Environmental Characteristics

Transport/storage temperature: -40℃~70℃

CONNECTOR SPECIFICATION

Connector	Insertion loss (dB)	Return loss (dB)	Storage (℃)	Operation (℃)	Connector quantity
LC/APC, SC/APC	≤0.2	≥60.0	-30 to +70	-40 to +75	2 or 4

Mechanical & Environment Performance

Mechanical Performance

Test	Standard	Parameters	Test Results
Tension	IEC 60794-1-2-E1	Load is 1×W	fiber strain ≤0.4% at MAX Additional attenuation ≤0.05dB fiber strain ≤0.05% after test
Bend	IEC 60794-1-2-E11A	Diam 40mm×3turns 5 cycles at 20℃	Additional attenuation ≤0.05dB,after test
Crush	IEC 60794-1-2-E3	100 N, 60s	Additional attenuation ≤0.05dB,after test
All optical testing proceeded at 1550 nm

Environment Performance:

Test	Standard	Parameters	Test Results
Temperature Cycle	IEC 60794-1-2-F1	+20°C, -40°C, +60°C, (3 cycles)	Absolute attenuation ≤0.5dB/km,during test Additional attenuation ≤0.1dB/km, during and after test
Water Soak	IEC 60794-5	1000 hours in water, 18℃～22℃	(Test after temp cycle) ≤0.07dB/km Change compared to start value
Damp Heat Cycle	IEC 60068-2-38	25°C, 65°C, 25°C, 65°C, 25°C, -10°C, 25°C	Absolute attenuation ≤0.5dB/km,during test Additional attenuation ≤0.1dB/km, during and after test
All optical testing proceeded at 1550 nm

Cable Marking & Packing

Unless otherwise required the sheath will be use inkjet marked at intervals of 1m, containing:
- Customer name
- Manufacture’s name
- Date of manufacture
- Type and number of fiber cores
- Length marking
- Other requirements

Fibre Count	Length	Pan Size	Weight (Gross) KG
	（m）	Φ×H
		(mm)
2～4 Fibres	2000 m	φ510 × 200	8
	4000 m	φ510 × 200	10
	6000m	φ510 × 300	13
6 Fibres	2000 m	φ510 × 200	9
6 Fibres	4000 m	φ510 × 300	12
8 Fibres	2000 m	φ510 × 200	9
8 Fibres	4000 m	φ510 × 300	14
12 Fibres	1000 m	φ510 × 200	8
	2000 m	φ510 × 200	10
	3000m	φ510 × 300	14
	4000 m	φ510 × 300	15
