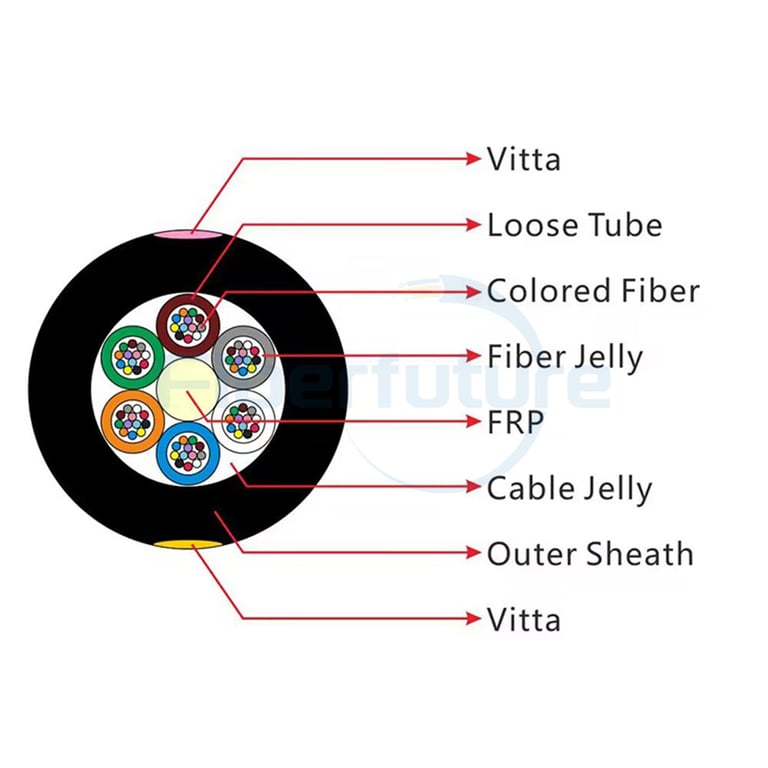

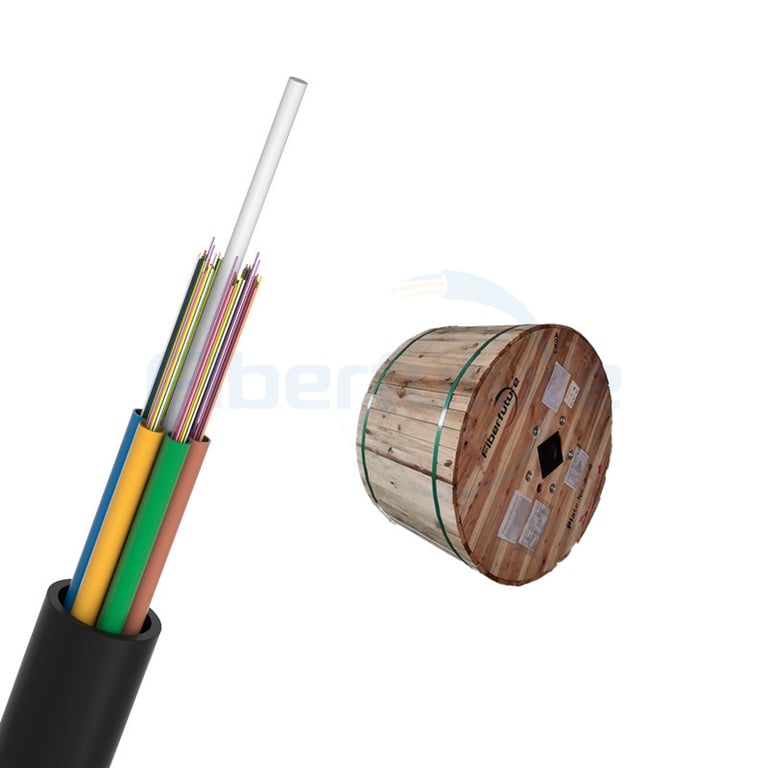

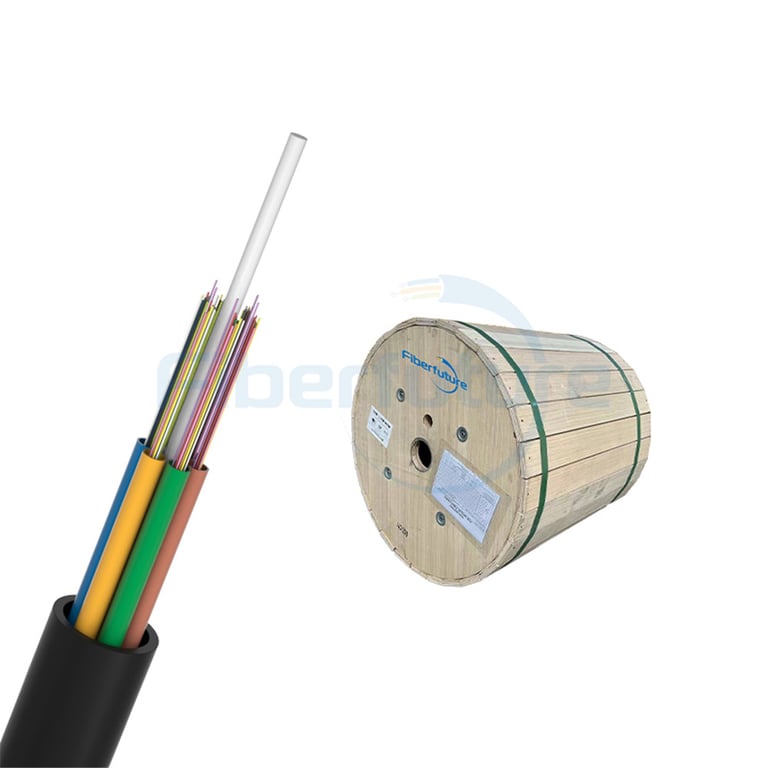

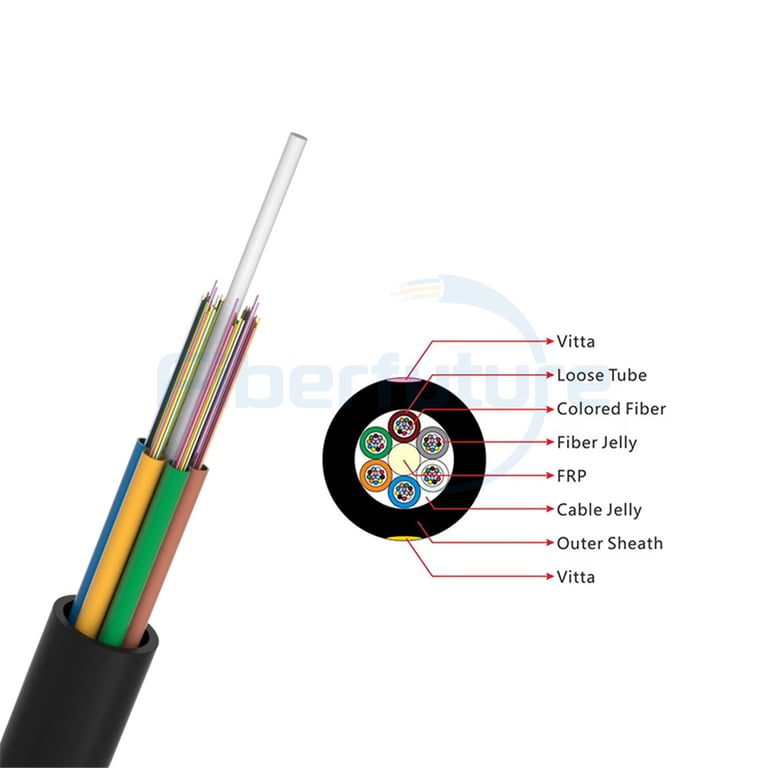

FIBERFUTURE® Stranded Loose Tube Air-blown Micro Fiber Optic Cable, designated as GCYFY, represents a specialized type of optical cable designed for efficient and flexible installations, particularly in aerial and duct deployment scenarios. The cable features several tubes, each containing a number of micro optical fibers. These tubes are stranded together around a central strength member, allowing the fibers to float freely within the tubes. This design enhances the cable's ability to withstand mechanical stresses, such as bending and temperature variations, without compromising the integrity of the fibers.
| Fiber Count | |
|---|---|
| Fiber Type |
The cab le can be used as the drop cable of feeder segments in FTTH networks and can be laid by air blowing to connect the branch point with the access point for subscribers. The cab le is also applicable in backbone networks, metropolitan area networks and access networks.
|
Technical Characteristics: |
|||||||||||||||||||||||||
|
Type |
Fiber count |
Diameter |
Weight |
Tensile Strength |
Crush Resistance |
||||||||||||||||||||
|
GCYFY-12 G657A2 |
12（2*6） |
4.5±0.1 |
16 |
0.3G/1.0G |
150/500 |
||||||||||||||||||||
|
GCYFY-24 G657A2 |
24（4*6） |
4.5±0.1 |
16 |
0.3G/1.0G |
150/500 |
||||||||||||||||||||
|
GCYFY-36 G657A2 |
36（6*6） |
4.5±0.1 |
16 |
0.3G/1.0G |
150/500 |
||||||||||||||||||||
|
GCYFY-24 G657A2 |
24（2*12） |
5.4±0.1 |
26 |
0.3G/1.0G |
150/500 |
||||||||||||||||||||
|
GCYFY-48 G657A2 |
48（4*12） |
5.4±0.1 |
26 |
0.3G/1.0G |
150/500 |
||||||||||||||||||||
|
GCYFY-72 G657A2 |
72（6*12） |
5.4±0.1 |
26 |
0.3G/1.0G |
150/500 |
||||||||||||||||||||
|
GCYFY-96 G657A2 |
96（8*12） |
6.1±0.1 |
33 |
0.3G/1.0G |
150/500 |
||||||||||||||||||||
|
GCYFY-144 G657A2 |
144（12*12） |
7.9±0.1 |
52 |
0.3G/1.0G |
150/500 |
||||||||||||||||||||
|
GCYFY-192 G657A2 |
192（16*12） |
7.9±0.1 |
52 |
0.3G/1.0G |
150/500 |
||||||||||||||||||||
|
GCYFY-216 G657A2 |
216（18*12） |
7.9±0.1 |
52 |
0.3G/1.0G |
150/500 |
||||||||||||||||||||
|
GCYFY-288 G657A2 |
288（24*12） |
9.3±0.1 |
80 |
0.3G/1.0G |
150/500 |
||||||||||||||||||||
|
GCYFY-144 G657A2 |
144（6*24） |
7.3±0.1 |
42 |
0.3G/1.0G |
150/500 |
||||||||||||||||||||
|
GCYFY-192 G657A2 |
192（8*24） |
8.8±0.1 |
76 |
0.3G/1.0G |
150/500 |
||||||||||||||||||||
|
GCYFY-288 G657A2 |
288（12*24） |
11.4±0.1 |
110 |
0.3G/1.0G |
150/500 |
||||||||||||||||||||
|
GCYFY-432 G657A2 |
432（18*24） |
11.4±0.1 |
115 |
0.3G/1.0G |
150/500 |
||||||||||||||||||||
|
GCYFY-576 G657A2 |
576（24*24） |
13.4±0.1 |
140 |
0.3G/1.0G |
150/500 |
||||||||||||||||||||
|
Note: G is the weight of optical cable 1kilometer |
|||||||||||||||||||||||||
|
Environmental Characteristics: |
|||||||||||||||||||||||||
|
Transport/storage temperature: -20℃~70℃ |
• Standard length: 2,000m; other lengths are also available.
