Uni-tube Air-Blown Micro Optical Fiber Cable GCYFXTY

Uni-tube Air-Blown Micro Optical Fiber Cable GCYFXTY

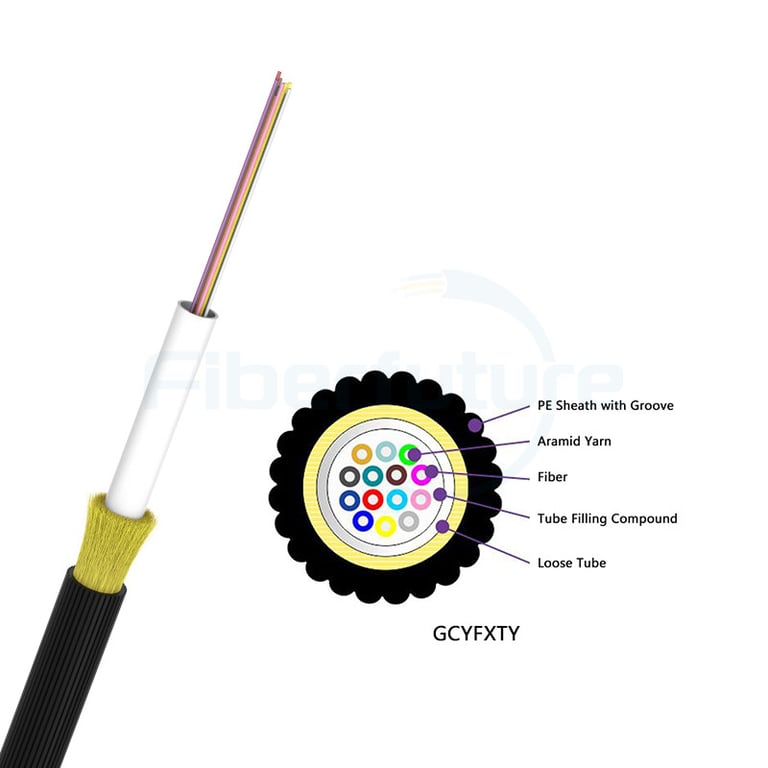

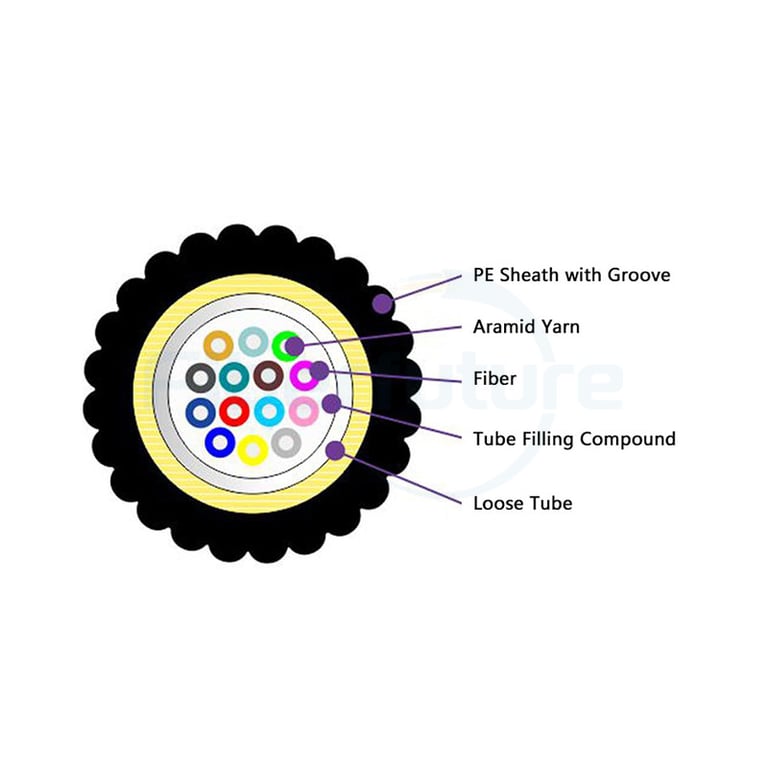

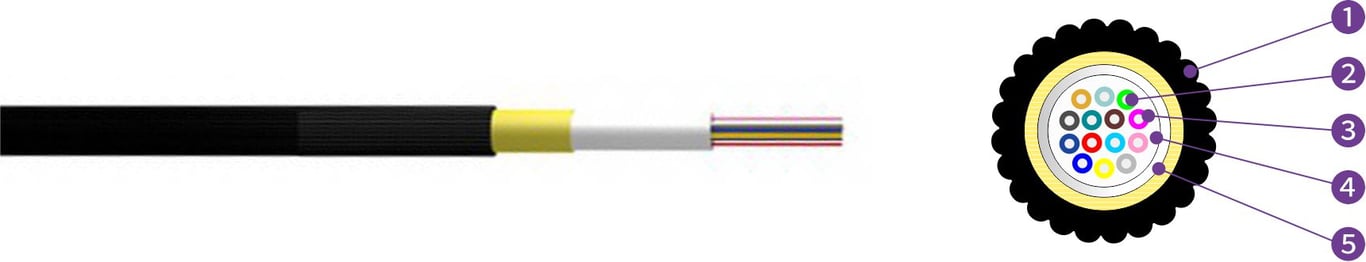

FIBERFUTURE® GCYFXTY Uni-tube Air-Blown Micro Optical Fiber Cable, The optical fibres are housed in a loose tube that is made of high-modulus plastic and filled with tube filling compounds.Aramid yarns are placed outside the loose tube as the strength member, then a sheath with grooves is extruded. This type of cable is particularly applicable to air-blowing constructions in access networks.

APPLICATIONS

Fiber Count
Fiber Type

Send Email

Uni-tube Air-Blown Micro Optical Fiber Cable GCYFXTY

Application

The cable can be used as the drop cable of distribution segments in FTTH networks and can be laid by air blowingto connect the branch point with the access point for subscribers. The cable is also applicable in backbone networks ,metropolitan area networks and access networks.

Main Features

Small size and light weight
Tube filling compound providing key protection for fibres
Unique design of sheath with grooves ensuring good air blowing performance
Allowing to blow by phases to reduce initial investment
High blowing speed up to 50m/min, and long blowing distance up to 1000m
Allowing to blow out and replace with new cables to keep technical superiority
Allowing to cut micro ducts anywhere anytime for branch without influences on other cables, saving manholes, hand holes and cable joints

Standards

[ITU-T G.657.A1]
[IEC 60793, 60794-5-10]
[ISO 9001, 14001]

Specification

Type	O.D. (mm)	Weight (Kg/km)	Tensile strength Long/short term （N）	Crush Long/short term （N/100mm）
GCYFXTY-2B1.3	2.3	4	0.15G/0.5G	150/450
GCYFXTY -4B1.3	2.3	4	0.15G/0.5G	150/450
GCYFXTY -6B1.3	2.3	4	0.15G/0.5G	150/450
GCYFXTY- 8B1.3	2.3	4	0.15G/0.5G	150/450
GCYFXTY- 12B1.3	2.3	4	0.15G/0.5G	150/450
GCYFXTY- 24B1.3	2.7	6.5	0.15G/0.5G	150/450
