EPFU Air blown Cable

FIBERFUTURE® Preconnect Enhanced Performance Fiber Unit is small size, light weight, enhanced surface outer sheath fiber unit with connector designed for blowing into micro tube bundles by air flow. The outer thermoplastic layer provides a high level of protection and excellent installation properties.

Please be free to buy our EPFU Air blown Cable products with competitive price. The customized service and the quotation consultation are available.

APPLICATIONS

Fiber Count
Fiber Type
Outer Sheath

Send Email

Application

The cable can be used as the indoor drop cable in FTTH networks and can be laid by air blowing with a handheld device, to connect the family multimedia information boxes with the access point for subscribers

Main Features

Smaller diameter
Frees up capital to expand network and client base
Network design flexibility
5/3.5mm microduct suitable
LC, SC & any other connector
Greater blowing distance
Fiber: G.G652D, G.657A1, G.657A2

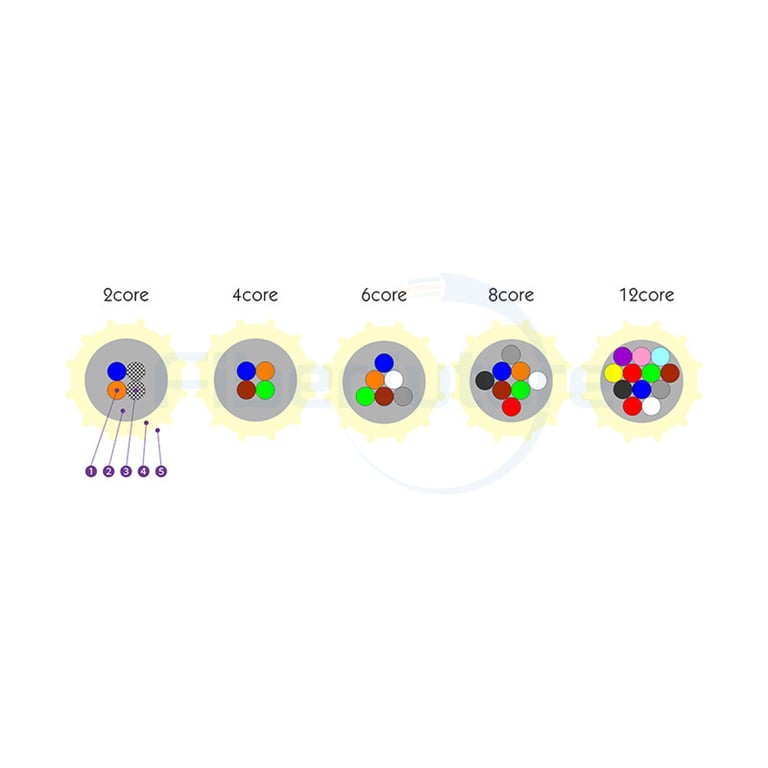

Specification

Type	Fibre count	O.D. (mm)	Weight (Kg/km)	Tensile strength Long/short term （N）	Crush resistance short term （N/100mm）
EPFU-02B6a2	2	1.1	1.1	0.15G/0.5G	100
EPFU-04B6a2	4	1.1	1.1	0.15G/0.5G	100
EPFU-06B6a2	6	1.3	1.3	0.15G/0.5G	100
EPFU-08B6a2	8	1.5	1.8	0.15G/0.5G	100
EPFU-12B6a2	12	1.6	2.2	0.15G/0.5G	100

Note: G is the weight of optical cable per km

Blowing Characteristics

Fibre count	2	4	6	8	12
Duct diameter	5.0/3.5 mm	5.0/3.5 mm	5.0/3.5 mm	5.0/3.5 mm	5.0/3.5 mm
Blowing pressure	8bar / 10bar	8bar / 10bar	8bar / 10bar	8bar / 10bar	8bar / 10bar
Blowing distance	500m/1000 m	500m/1000 m	500m/1000 m	500m/1000 m	500m/800 m
Blowing time	15min/30min	15min/30min	15min/30min	15min/30min	15min/30min

Environmental Characteristics

• Transport/storage temperature: -40℃ to +70℃

Cable Marking & Packing

Unless otherwise required the sheath will be use inkjet marked at intervals of 1m, containing:
- Customer name
- Manufacture’s name
- Date of manufacture
- Type and number of fiber cores
- Length marking
- Other requirements

Fibre Count	Length	Pan Size	Weight (Gross) KG
	（m）	Φ×H
		(mm)
2～4 Fibres	2000 m	φ510 × 200	8
	4000 m	φ510 × 200	10
	6000m	φ510 × 300	13
6 Fibres	2000 m	φ510 × 200	9
6 Fibres	4000 m	φ510 × 300	12
8 Fibres	2000 m	φ510 × 200	9
8 Fibres	4000 m	φ510 × 300	14
12 Fibres	1000 m	φ510 × 200	8
	2000 m	φ510 × 200	10
	3000m	φ510 × 300	14
	4000 m	φ510 × 300	15
