Flat Drop Cable Clamp , FTTH Clamp

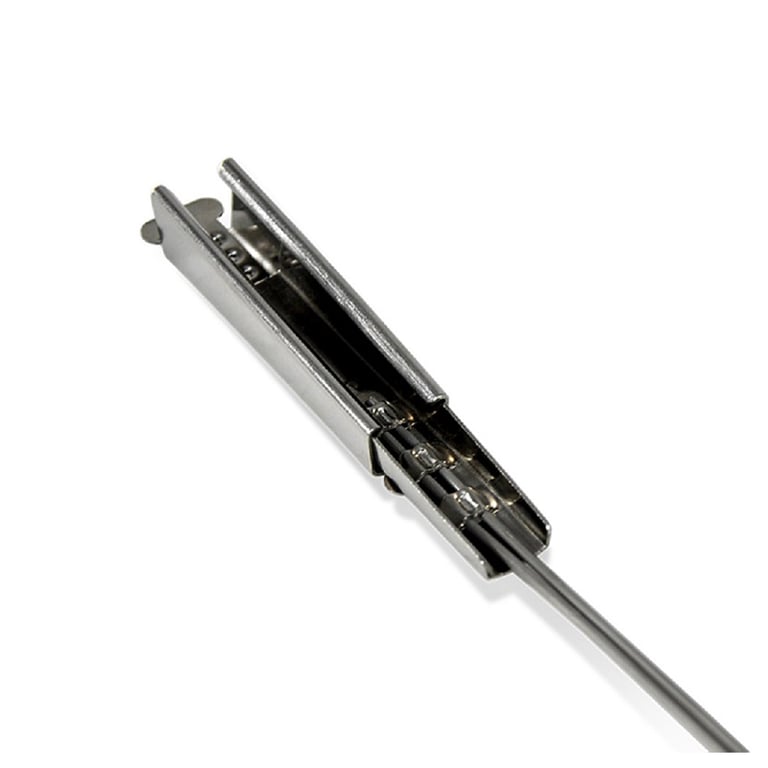

The drop cable FTTH clamp is composed of a body, a wedge and a shim. A solid wire bail is crimped to the wedge. All parts are made out of stainless steel. FIBERFUTURE offers this tension clamp with appropriate dead-end anchor FTTH ODWAC clamp, S-type, ACC and other FTTH clamps. All the assemblies passed the tensile tests, operation experience with temperatures ranging from -60 °C up to +60 °C test, temperature-cycling test.

Send Email

The Details of Drop Cable Clamp

Fiber Diameter range of Drop Cable Clamp: 3-7mm;
Good corrosion resistant, durable and economical;
Made of stainless steel;
Use with HC, YK, ODWAC-22 and hoop;

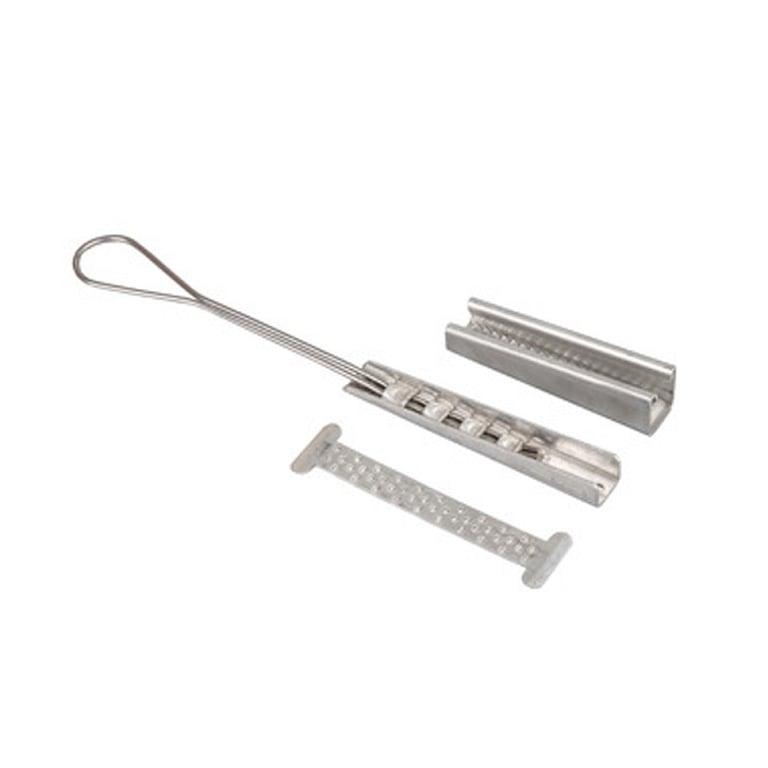

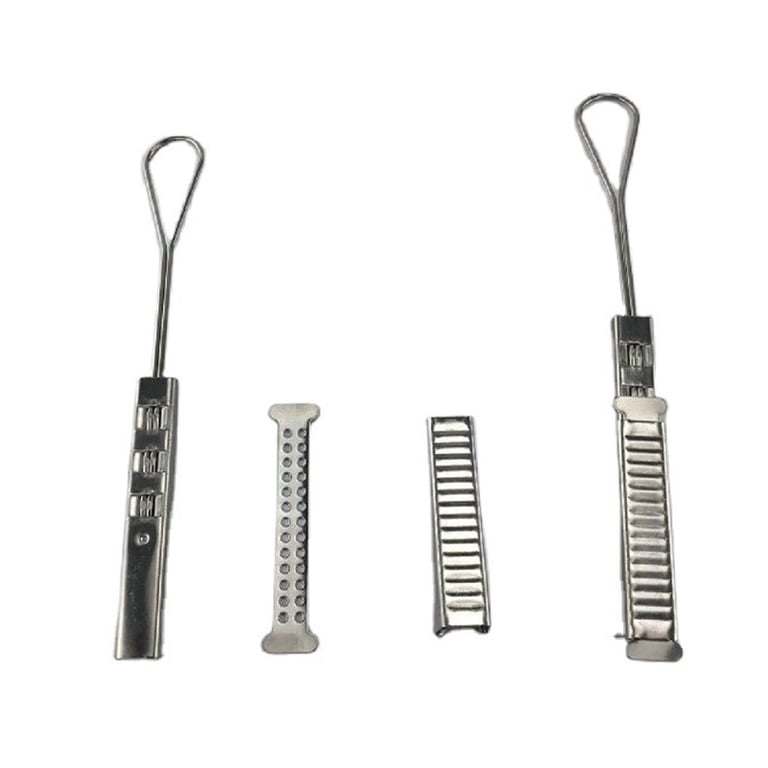

Consists of three parts: a shell, a shim and a wedge equipped with a bail wire.

The Specification of Drop Cable Clamp

Code	Length	Outer Material	Thickness of outer sheath	Tensile Strength
ODWAC- 22	220mm	Stainless Steel 201/304/430	0.78mm	450N
Cable Diameter		Insert Material	Thickness of insert	Weight
3-7mm		Stainless Steel 201/304/430/PP	0.45mm	44.5g
