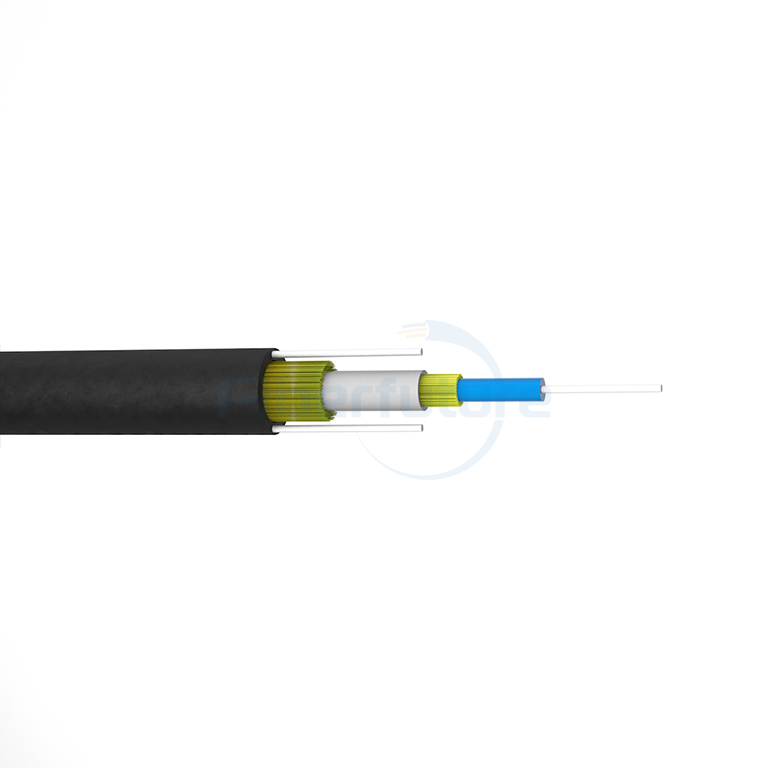

Double Jacket Round Drop Cable with Aramid Yarn and Water Blocking Tape

FIBERFUTURE double jacket round drop cable features aramid yarn for enhanced tensile strength and durability. Its water-blocking tape ensures protection against moisture ingress, making it ideal for outdoor installations. The round design and dual jacket provide robustness and ease of handling.

APPLICATIONS

Fiber Count
Fiber Type

Double Jacket Round Drop Cable with Aramid Yarn and Water Blocking Tape

Send Email

Applications

Outdoor Installations: Suitable for aerial or buried applications without the need for conduit.
Residential and Commercial Use: Ideal for connecting from main distribution points to individual homes or businesses.
Telecommunications Infrastructure: Supports data and voice transmission in communication networks.
Emergency Services Networks: Provides reliable connectivity for critical communication systems.

Main Features

Aramid Yarn Reinforcement: Enhances cable strength and resistance to tensile forces.

Water-Blocking Tape: Prevents water penetration along the length of the cable, ensuring long-term reliability.

Double Jacket Construction: Offers additional mechanical protection and UV resistance.

Round Design: Facilitates easier handling and installation, especially when routing through tight spaces.

Durability: Resistant to environmental factors such as temperature extremes and chemical exposure.

Flexibility: Designed for easy manipulation during installation, minimizing damage risk.

Environmental Characteristics

Operating :-20℃ to 60℃
Storage :-20℃ to 60℃

Optical Characteristics

Fiber Type		Maximum Attenuation for Uncabled Fibers [dB/km]
Fiber Type		1310 nm	1383 nm	1490 nm	1550 nm	1625 nm
G.657A1	Bend insensitive fiber fully compatible with G.652D standard, bend radius 10-15mm	≤0.35	≤0.35	≤0.24	≤0.20	≤0.23
G.657A2	Bend insensitive fiber fully compatible with G.652D standard, bend radius 7.5mm	≤0.35	≤0.35	≤0.24	≤0.20	≤0.23
G.657B3	Bend insensitive fiber fully compatible with G.652D standard, bend radius 5mm	≤0.35	≤0.35	≤0.24	≤0.20	≤0.23
