Direct Buried Single Armored Double Jacket Fiber Optic Cable GYFTY53

Direct Buried Single Armored Double Jacket Fiber Optic Cable GYFTY53

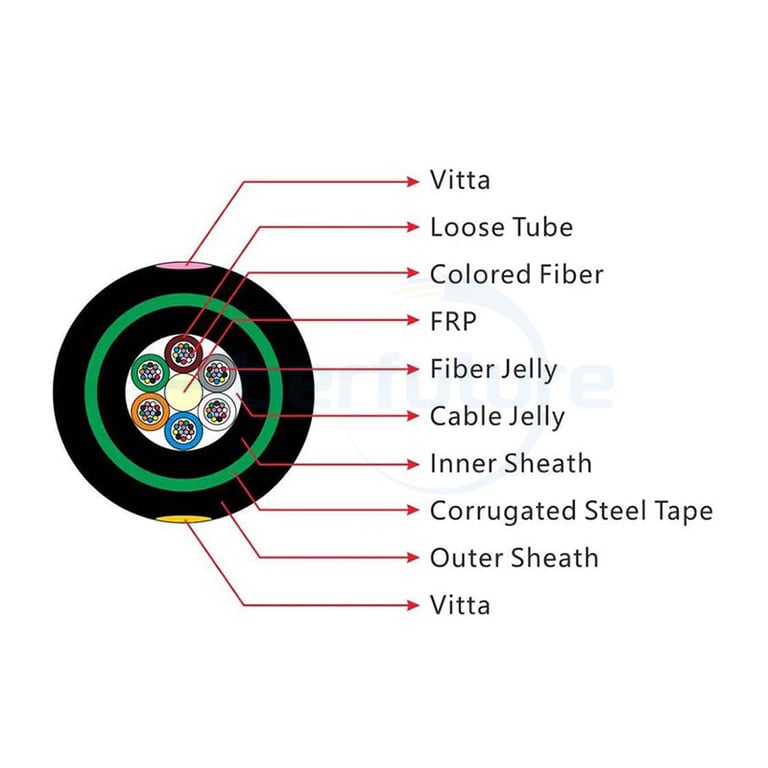

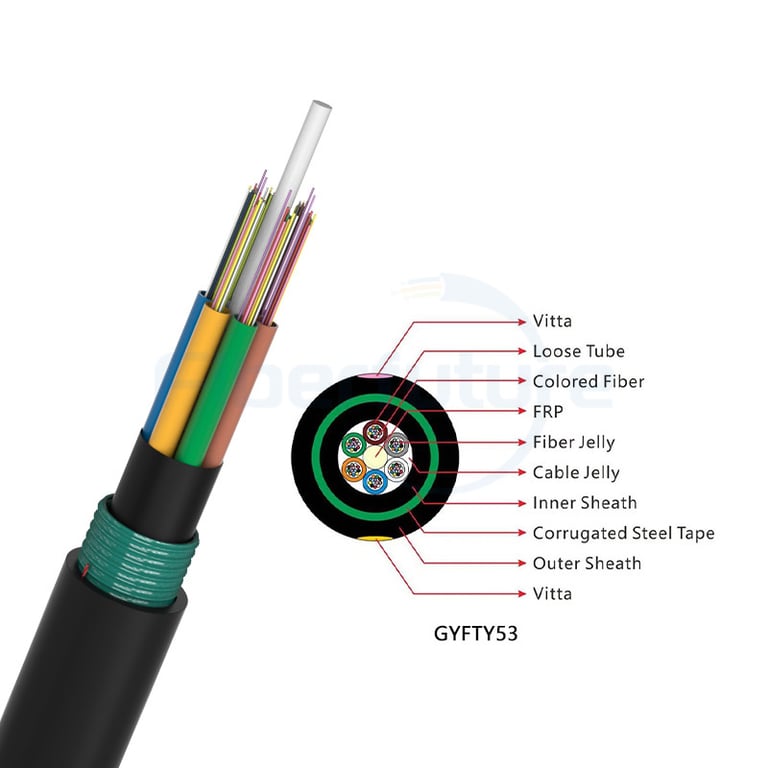

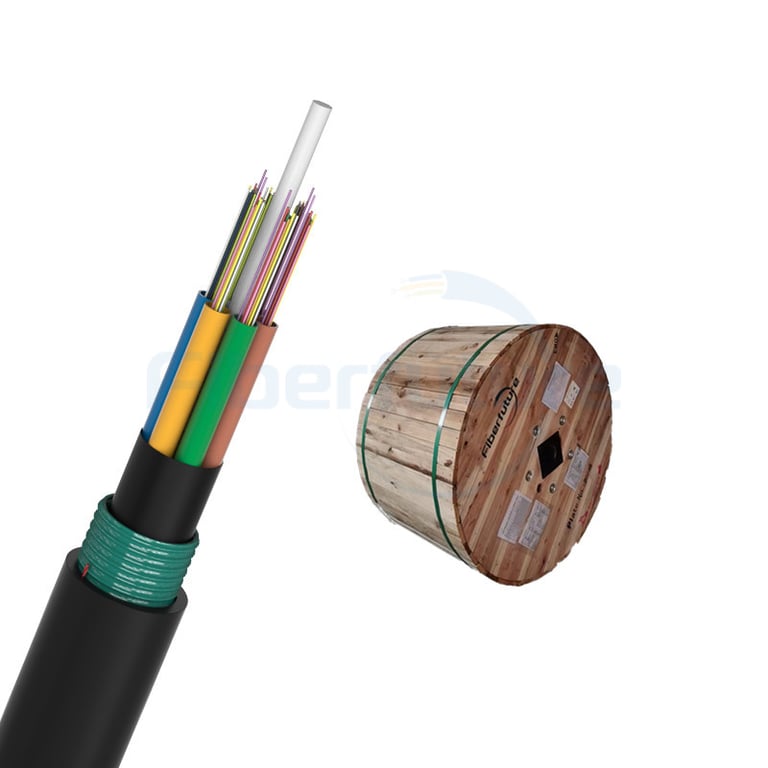

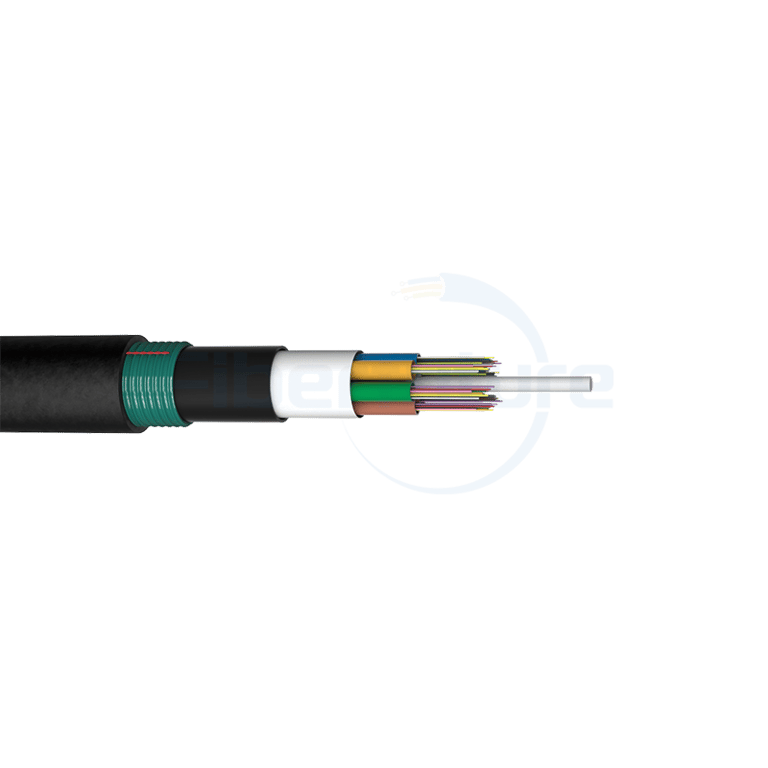

FIBERFUTURE® The Direct Buried Single Armor Double Jacket Fiber Optic Cable GYFTY53 is an outdoor fiber optic cable designed for direct burial applications. It features a single armor layer and double jacket construction, providing mechanical protection and durability for underground installations. This cable is commonly used for long-distance communication links and installations where the cable needs to be buried directly in the ground without the need for additional ducts or conduits.

APPLICATIONS

Fiber Count
Fiber Type

Send Email

Applications

Adopted to outdoor distribution;
Suitable for aerial, pipeline laying method;
Long distance and local area network communication.

Main Features

Good mechanical and temperature performance
High strength looes tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Crush resistance and flexibility

Standards

GYFTY53 cable complies with Standard IEC 60793, IEC60794, TIA/EIA, ITU-T

Color of Fiber and Loose tube

01 - Blue	02 - Orange	03 - Green
04 - Brown	05 - Slate	06 - White
07 - Red	08 - Black	09 - Yellow
10 - Violet	11 - Pink	12 - Aqua

Optical Charactristic

G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm			≤3.0 dB/km	≤3.0 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm	≤1480nm

Specification

Cable Type	Fiber Count	Tubes	Fillers	Cable Diameter mm	Cable Weight kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100mm	Bending Radius Static /Dynamic mm
GYFTY53-2~6	2~6	1	7	15.8	230	1000/3000	1000/3000	10D/20D
GYFTY53-8~12	8~12	2	6	15.8	230	1000/3000	1000/3000	10D/20D
GYFTY53-14~18	14~18	3	5	15.8	230	1000/3000	1000/3000	10D/20D
GYFTY53-20~24	20~24	4	4	15.8	230	1000/3000	1000/3000	10D/20D
GYFTY53-26~30	26~30	5	3	15.8	230	1000/3000	1000/3000	10D/20D
GYFTY53-32~36	32~36	6	2	15.8	230	1000/3000	1000/3000	10D/20D
GYFTY53-38~42	38~42	7	1	15.8	230	1000/3000	1000/3000	10D/20D
GYFTY53-44~48	44~48	8	0	15.8	230	1000/3000	1000/3000	10D/20D
GYFTY53-50~60	50~60	5	3	16.8	255	1000/3000	1000/3000	10D/20D
GYFT Y53-62~72	62~72	6	2	16.8	255	1000/3000	1000/3000	10D/20D
GYFTY53-74~84	74~84	7	1	16.8	255	1000/3000	1000/3000	10D/20D
GYFTY53-86~96	86~96	8	0	16.8	255	1000/3000	1000/3000	10D/20D
GYFTY53-98~108	98~108	9	1	19.2	320	1000/3000	1000/3000	10D/20D
GYFTY53-110~120	110~120	10	0	19.2	320	1000/3000	1000/3000	10D/20D
GYFTY53-122~132	122~132	11	1	21.2	380	1000/3000	1000/3000	10D/20D
GYFTY53-134~144	134~144	12	0	21.2	380	1000/3000	1000/3000	10D/20D
Storage/Operating Temperature : -40℃ to + 70℃
