Anti-Rodent Anti Bird FRP Tape Double Sheath Stranded Loose tube Fiber Optic Cable GYFTY73

Anti-Rodent Anti Bird FRP Tape Double Sheath Stranded Loose tube Fiber Optic Cable GYFTY73

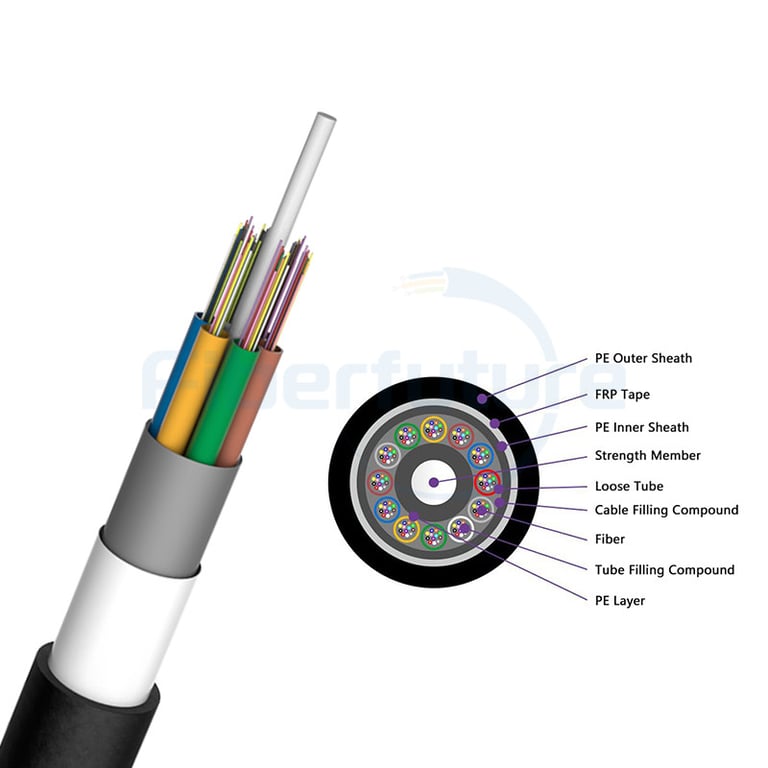

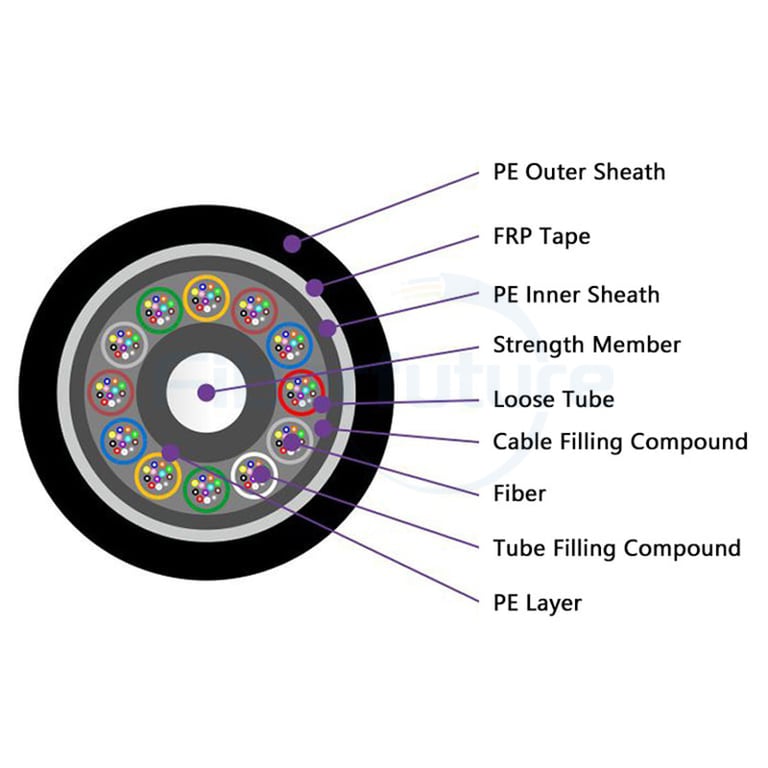

FIBERFUTURE® GYFTY73 is designed with physical anti-rodent measure. Single-mode/multimode fibres are housed in loose tubes that are made of high-modulus plastic. The tubes are stranded around a central strength member to form a cable core. The core is filled with cable filling compound. Then an inner PE sheath is extruded and armored with FRP tape. Finally, a PE outer sheath is extruded.

APPLICATIONS

Fiber Count
Fiber Type

Send Email

Main Features

Physical anti-rodent method,green and environment-friendly,
Accurate process control ensuring good mechanical and temperature performances,
The material of loose tubes with good hydrolysis resistance and relatively high strength,
Tube filing compound providing key protection for fibres,
FRP tape armor providing good anti-rodent performance All-dielectric design, applicable to lightning-prone areas,
Applicable to aerial and duct installations with anti-rodent and anti-lightningrequirements,

Standards

IEC 60793, IEC60794
TIA/EIA
ITU-T

Specification

Type	Units	Diameter mm	Weight (kg/km)	Tension(N) Long/short	Crush Resistance Long/short (N/100mm)
GYFTY73 -02-72Xn	6	13.2±0.1	132	1000/3000	300/1000
Note: This specification provides a normative reference. Adjustable outer diameter to suit your budget.Contact us ASAP.
