Double Metallic Armors and Nylon Sheath Anti-rodent/Anti-termite Optical Cable GYFTA54

Double Metallic Armors and Nylon Sheath Anti-rodent/Anti-termite Optical Cable GYFTA54

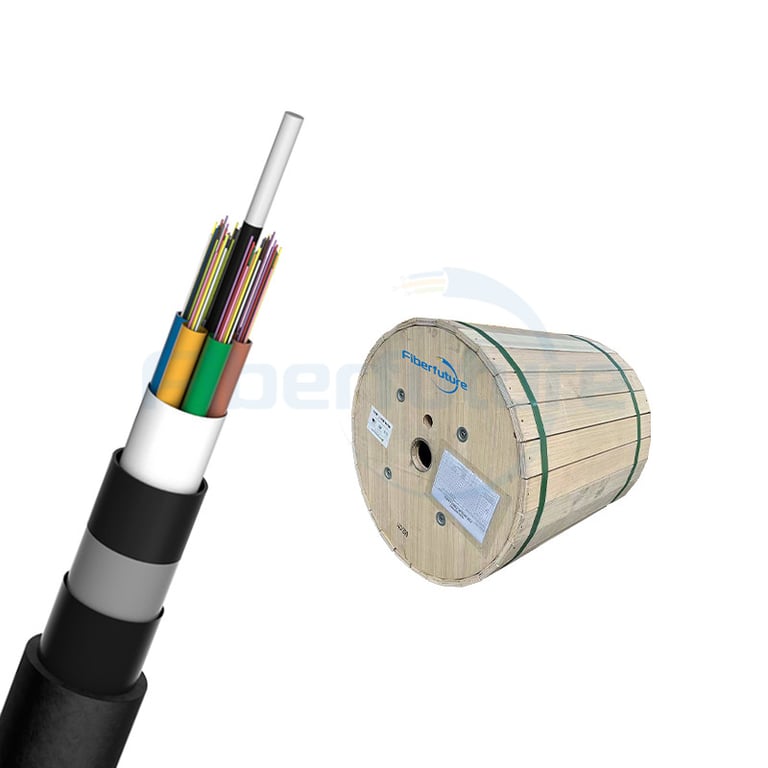

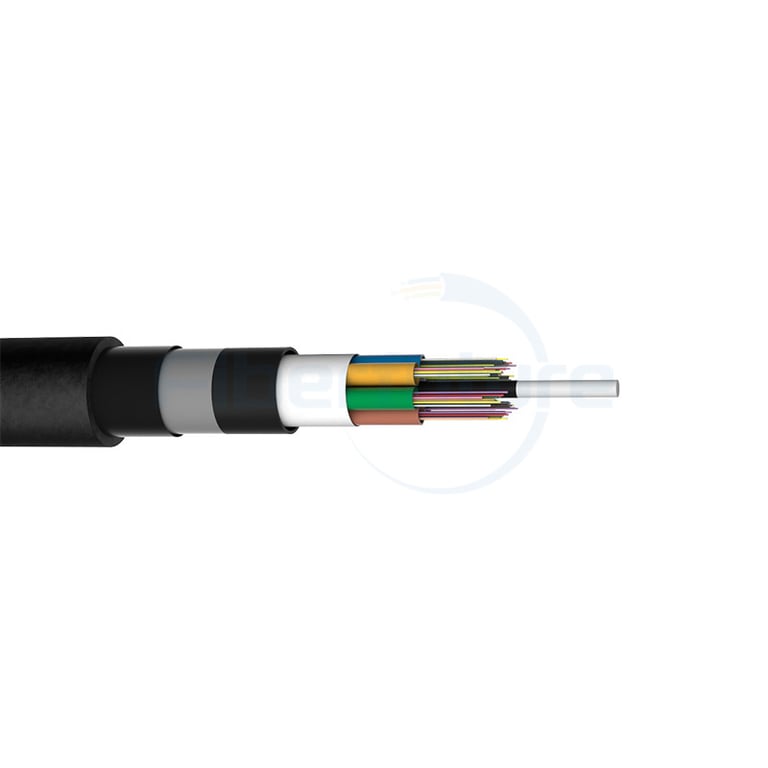

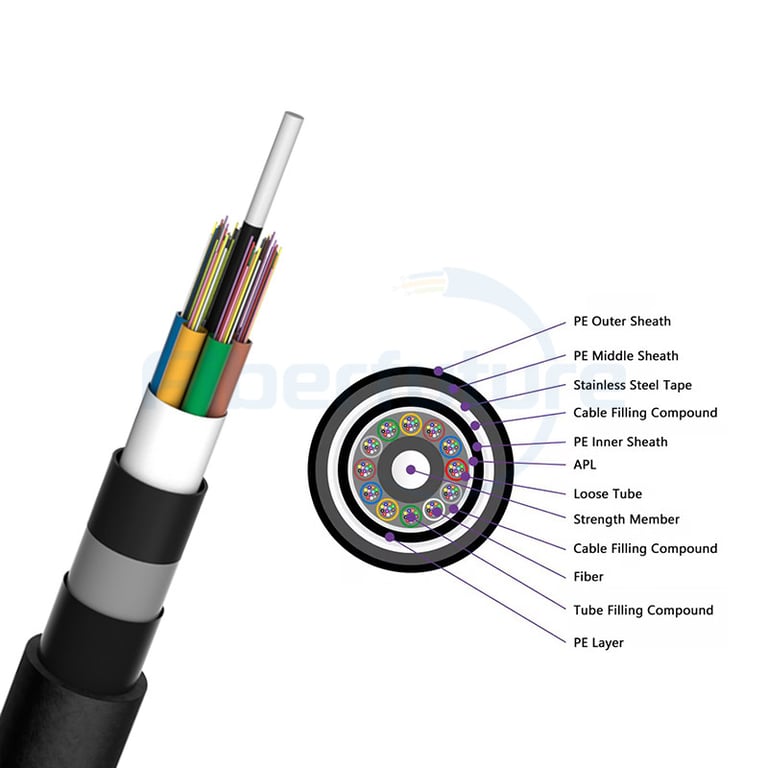

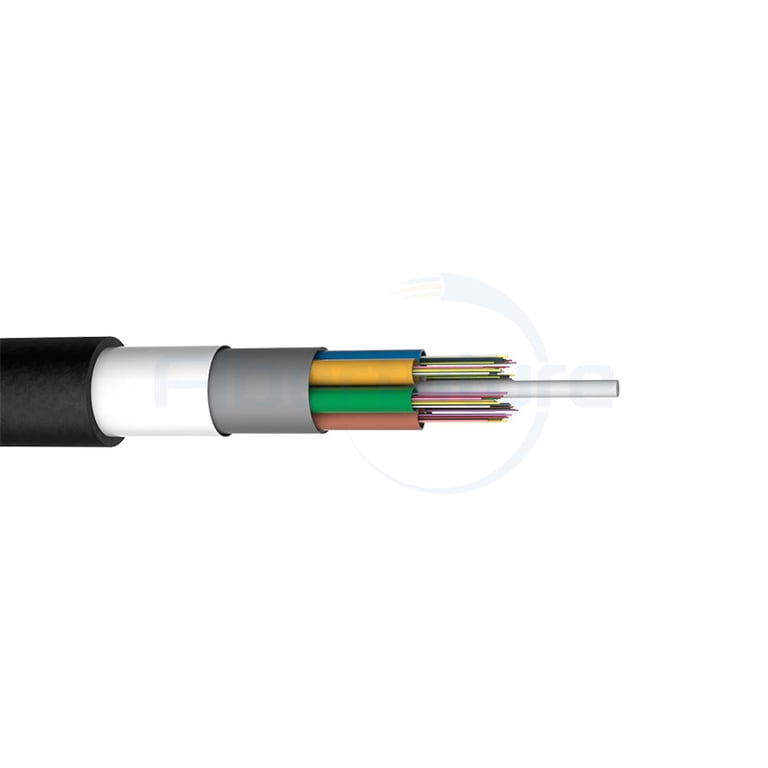

FIBERFUTURE® GYFTA54 is a kind of outdoor communication optical cable, which consists of a non-metallic central strength member, stranded loose tubes, a laminated aluminum tape armor, a PE inner sheath, a stainless steel tape armor, a PE middle sheath and a nylon outer sheath. Single-mode fibres are housed in loose tubes that are made of highmodulus plastic and filled with tube filling compound. The tubes are stranded around the central member to form a cable core. The core is filled with cable filling compound and armored with laminated aluminum tape. Then a PE inner sheath is extruded and armored with stainless steel tape. Finally, a middle PE sheath and a nylon outer sheath is extruded.

APPLICATIONS

Fiber Count
Fiber Type

Send Email

Main Features

Accurate process control ensuring good mechanical and temperature performances
The material of loose tubes with good hydrolysis resistance and relatively high strength
Tube filling compound providing key protection for fibres
Excellent crush resistance
Metallic armors providing good anti-rodent performance
Nylon outer sheath with high hardness providing certain anti-termite performance
Applicable to duct and buried installations

Standard

IEC 60793, IEC60794
TIA/EIA
ITU-T

Main Methods

hysical methods	Metallic armors	Stainless steel tape	Rodent and Birds
		Steel wires
	Non-Metallic armors	FRP	Rodent and Birds
		Glass Yarn	Rodent
	Nylon sheath	Nylon outer sheath	Termite
Chemical methods	Chemical additives	Spicy additives	Rodent and Termite

Color of Fiber and Loose tube

01 - Blue	02 - Orange	03 - Green
04 - Brown	05 - Slate	06 - White
07 - Red	08 - Black	09 - Yellow
10 - Violet	11 - Pink	12 - Aqua

Specification

Fiber Optic Characteristics:

G.652.D

G.655

50/125um

62.5/125um

Attenuation

@850nm

≤3.0 dB/km

@1300nm

≤1.0 dB/km

@1310nm

≤0.36 dB/km

≤0.40 dB/km

@1550nm

≤0.22 dB/km

≤0.23 dB/km

Bandwidth

@850nm

≥500 MHz · km

≥200 MHz · km

@1300nm

≥1000 MHz · km

≥600 MHz · km

Polarization
mode
dispersion

lndividual fibre

≤0.20 ps/√km

Design link value
(M=20,Q=0.01%)

≤0.1 ps/√km

Technical Data:

Type	Units	Cable diameter (mm)	Cable weight (Kg/km)	Tensile strength Long/short term (N)	Crush Long/short term （N/100mm）	Bending radius Dynamic/static (mm)
GYFTA54-24Xn	6	14.4	225	900/2700	1000/3000	20D/10D
GYFTA54-48Xn	6	15.0	250	900/2700	1000/3000	20D/10D
GYFTA54-72Xn	6	15.0	250	900/2700	1000/3000	20D/10D
GYFTA54-96Xn	8	16.8	300	900/2700	1000/3000	20D/10D
GYFTA54-144Xn	12	20.0	370	900/2700	1000/3000	20D/10D
GYFTA54-288Xn	24	22.4	465	900/2700	1000/3000	20D/10D
