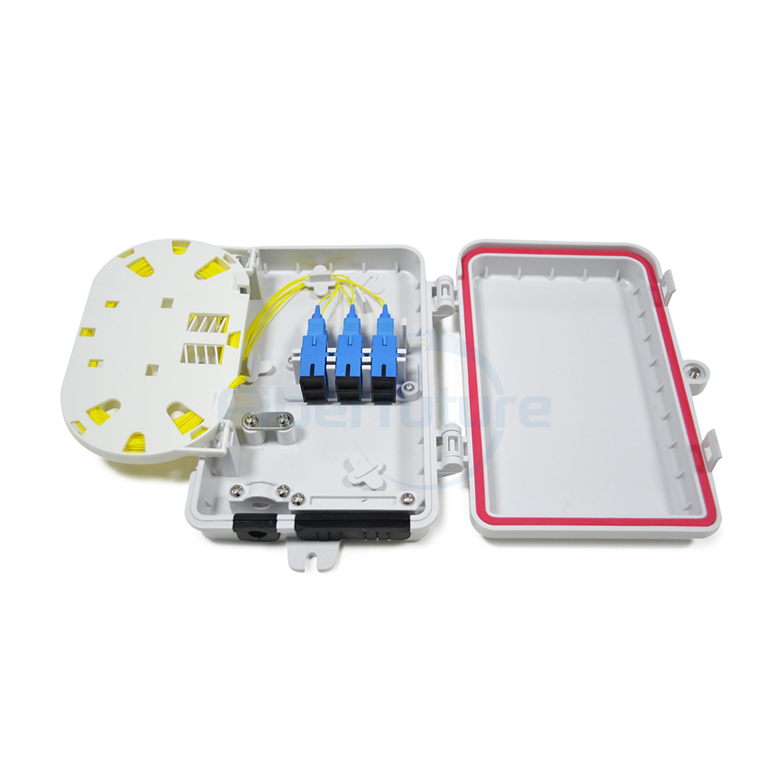

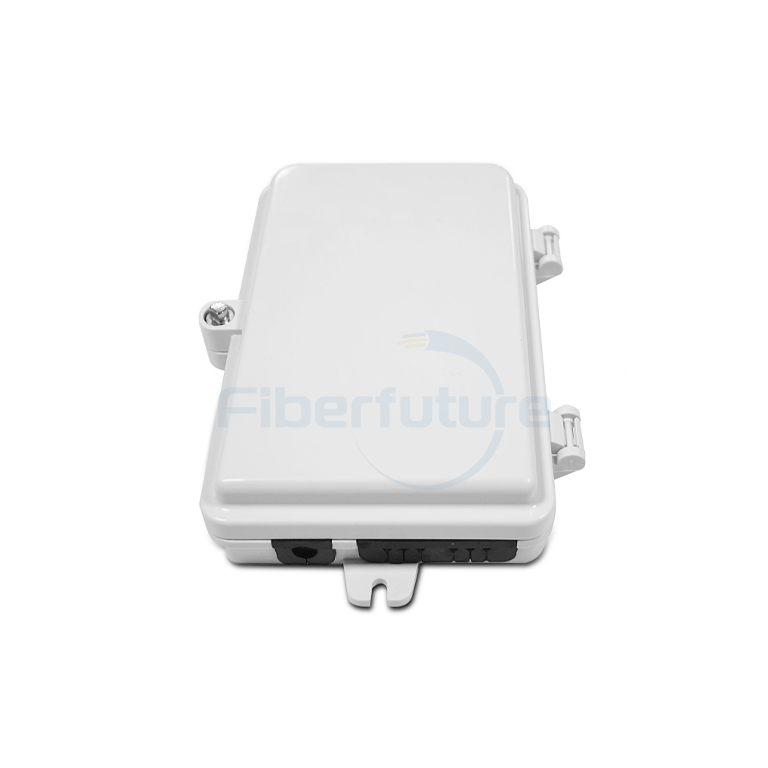

FIBERFUTURE 6 core FTTH terminal box is IP55 rated for waterproof protection, designed for outdoor fiber optic terminations and splices. It ensures secure and reliable connections, offering durability and easy access for maintenance.
|
Features |
Specifications |
| Insertion Loss | ≤0.30dB |
| Return Loss | ≥50dB |
| Cable Pull-Off Force | Not less than 50N |
| Operating Pressure | 70kPa to 106kPa |
| Temperature Range | -40°C to +75°C |
| Relative Humidity | ≤95% at +40°C |
| Protection Rating | IP55 |
| Insulation Resistance | ≥2 × 104 MΩ at 500 V (DC) |
| Withstand Voltage | ≥3000 V (DC) for 1 minute |
| Door Opening Angle | 180° or more |
| Corrosion & Damage | Resistant |
| Vertical Load (Top Surface) | Not less than 500N |
| Vertical Load (Door) | Not less than 100N |
| Axial Tension (Regular Fiber) | Not less than 500N |
| Axial Tension (Butterfly Cable) | Not less than 200N |
| Post-Tension Integrity | No damage or loosening |
1. Materials and Construction:
High-quality PC material for excellent impact resistance and high tensile strength.
Flip plate made of cold-rolled steel, treated with outdoor electrostatic powder spray for durability.
2. Dimensions:
Box size: 210 mm × 140 mm × 40 mm.
Cable diameter range: 7.0 mm to 10.0 mm.
3. Ports and Connectors:
Cable port: 1.
Adapter ports: 6.
4. Quality and Finish:
Complete and well-finished components with smooth surfaces and uniform color.
Strong adhesion of coatings on metal parts, no burrs, bubbles, cracks, warping, or impurities in plastic parts.
