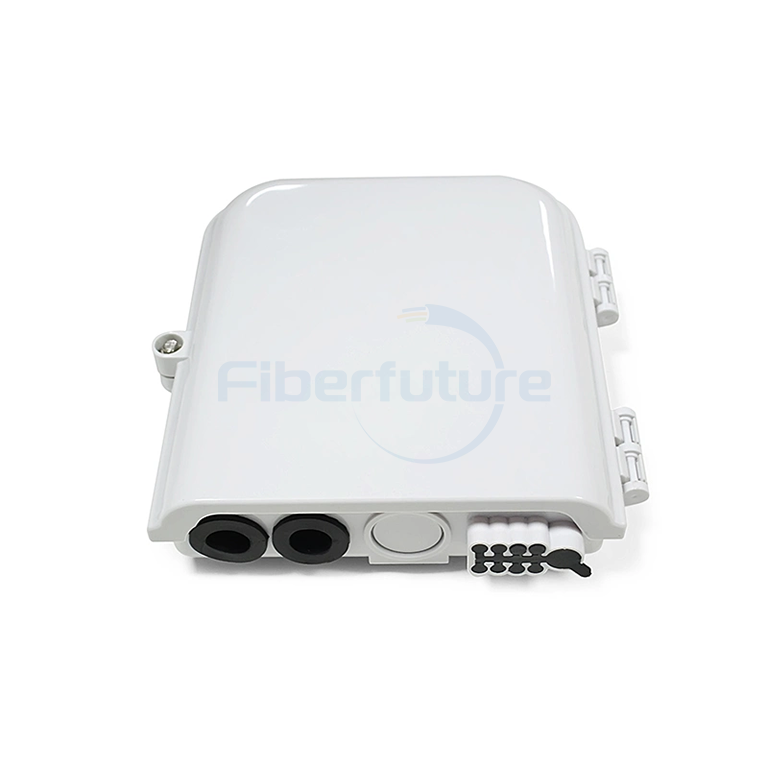

8 Ports Optical Fiber Terminal Box Wall and Pole Mountable

8 Ports Optical Fiber Terminal Box Manufacturer Wall and Pole Mountable

FIBERFUTURE 8-port optical fiber terminal box is wall and pole mountable, offering convenient fiber termination and management. It features easy installation, robust construction, and secure cable routing for reliable network connectivity in FTTx applications.

Send Email

Applications

Widely used in FTTH access networks
Telecommunication networks
CATV networks
Data communication networks
Local area networks

Features

Industry-standard user interface, constructed from high-impact plastic.
Accommodates 1x4 or 1x8 PLC splitters.
UV-resistant and protected against rainfall.
Supports up to 8 FTTH drop cables.
Wall and pole mountable design.
Features 2 inlet and 8 outlet ports.
Cable fixation ensures a pull-off force of at least 50N.
Operating pressure: 70kPa to 108kPa.
Operating temperature range: -40°C to +60°C.
Relative humidity: ≤95% at +40°C.
Protection rating: IP55.

Dimension

Model	Capacity	Size
FTTH	8 Ports	200mm(W)x215mm(H)x54mm(D)

Configuration

Product Name	Specifications	Quantity
FTTH Box	FTTH	1PC
Optical Fiber Heat Shrinkable Casing	Ф1.5×40mm	8PCS
To Protect The Casing	Φ5	1.5M
Nylon Cable Tie	3×100mm	6PCS
Expansion Bolt	M8×40mm	4EST
Key		1PC
