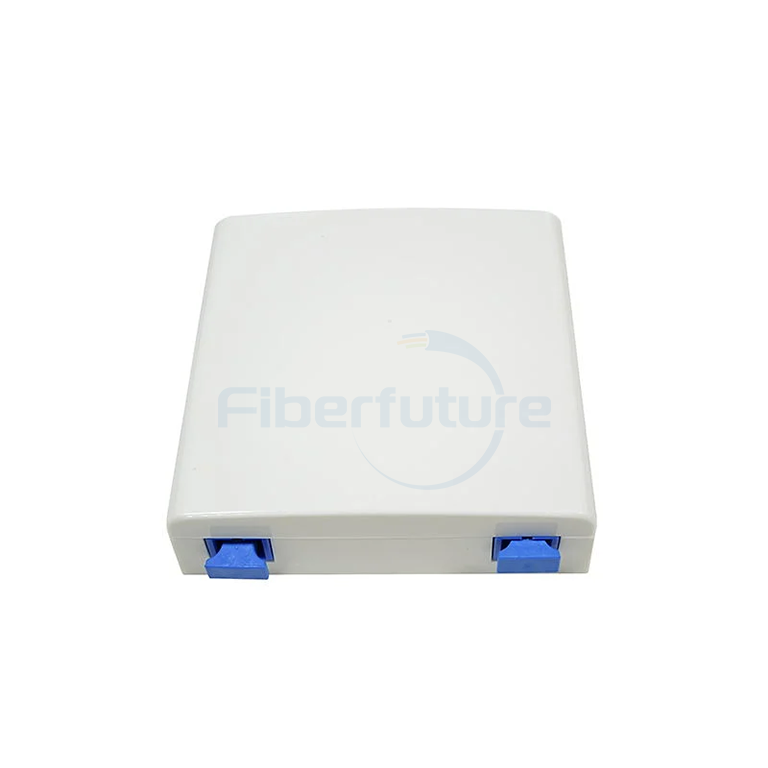

FTTH 2 Core Fiber Termination Box Desk Mounted or Wall Mounted

FIBERFUTURE 2 core fiber termination box is a versatile FTTH solution suitable for desk or wall mounting. Constructed from durable, high-impact plastic, it offers UV and rainfall resistance. With 2 core capacity, this compact box ensures secure cable management and easy accessibility for installation and maintenance.

Send Email

Applications

End user
Indoor use
Capable to handle fiber fusion, fiber cables and pigtails

Features

Supports termination, splicing, and storage.
Compact with efficient fiber management.
Engineered fiber routing protects bend radius.
Desk or wall mountable, compatible with flush-mount outlets.
Working Temp: -25°C to +60°C.
Atmospheric Pressure: 70kPa to 106kPa.
Relative Humidity: ≤85% (+30°C).
Connector Repeatability: >1000.
Connector Spec: IL ≤0.2dB; RL ≥50dB.

Specifications

Parameter	Value	Remark
Model	FTTH
Outside Dimension (mm)	868625
Material	ABS
Color	White
Storage of Fibers	G.657
Splice Capacity	2 Fibers
Splice Method	Fusion Splice	45mm sleeve
Adapter Type and Count	2 SC/SX or 2 LC/DX
Input Cable	3mm or Figure 8 (2*3mm)	From Side or Bottom
