As the demand for high-speed data transmission continues to rise, optical networking technologies like Multi-fiber Push On (MPO) and Mechanical Transfer Push On (MTP) connectors are becoming increasingly critical. These connectors enable faster, more efficient data transfer in modern data centers, telecommunication networks, and high-performance computing environments.

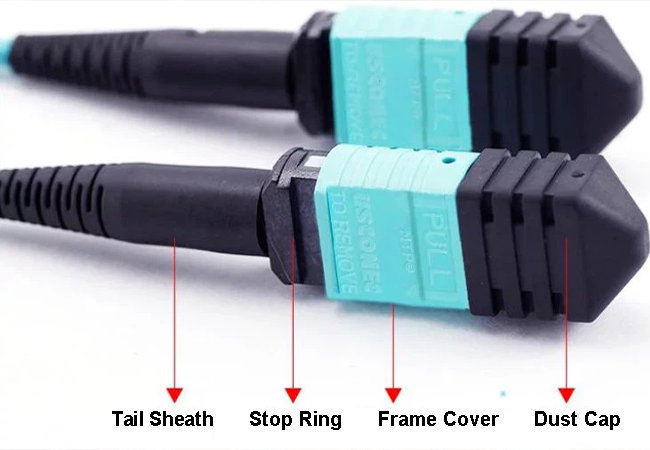

Before diving into fiber optic adapters and loopbacks, it's essential to understand the connectors themselves. Both MPO and MTP connectors are used in high-density fiber optic cables to allow for the rapid transmission of large amounts of data over long distances. These connectors can carry multiple fibers (up to 12, 24, or 36 fibers in one connector) within a single connection, making them ideal for environments where space and bandwidth are at a premium, such as data centers or telecommunications networks.
MPO (Multi-fiber Push On): MPO is an industry-standard fiber optic connector, designed to support high-density connections. It typically features a 12-fiber configuration but can also support 24 or 36 fibers, allowing for parallel transmission of data streams.
MTP (Mechanical Transfer Push On): MTP is a proprietary version of the MPO connector, developed by US Conec. It provides improvements over the standard MPO connector, including better performance, higher precision, and more robust construction, which makes it a popular choice in high-performance applications.
Both MPO and MTP connectors are commonly used for 40G, 100G, and even 400G Ethernet networks, as they can handle multiple data lanes in a single fiber bundle.

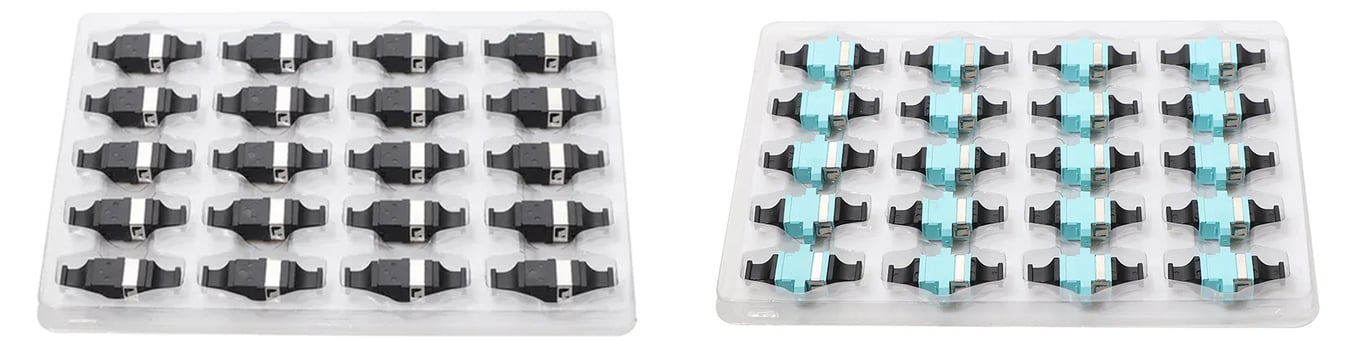

A MPO/MTP adapter is a passive device designed to facilitate the connection between two MPO/MTP connectors. It is typically used in situations where fiber optic cables with MPO/MTP connectors need to be joined or terminated.
Key Functions of MPO/MTP Adaptors:
1. Connecting MPO/MTP Cables: The primary purpose of a MPO/MTP adaptor is to connect two MPO/MTP cables or devices in a seamless manner. This ensures that multiple fibers can be aligned and connected with minimal signal loss.
2. Ensuring Fiber Alignment: MPO/MTP adaptors help ensure the correct alignment of fibers in both connectors, which is crucial for optimizing the performance of the optical system. Poorly aligned fibers can result in signal degradation and increased transmission errors.
3. Supporting Multiple Configurations: MPO/MTP adaptors can support a range of fiber counts (12, 24, 36 fibers, etc.) and can accommodate various configurations, such as single-mode and multimode fibers, depending on the requirements of the network.
4. Enabling Scalability: By facilitating the connection of multiple fibers in a single port, MPO/MTP adaptors help expand network capacity, allowing for faster speeds and higher throughput without requiring additional hardware.
Types of MPO/MTP Adaptors:
Male to Male: Used to connect two MPO/MTP cables with male connectors.
Male to Female: Used to connect a male MPO/MTP connector to a female MPO/MTP port.
Female to Female: Used to connect two MPO/MTP cables with female connectors.
Simplex or Duplex Adaptors: For applications that only require a smaller number of fiber connections.

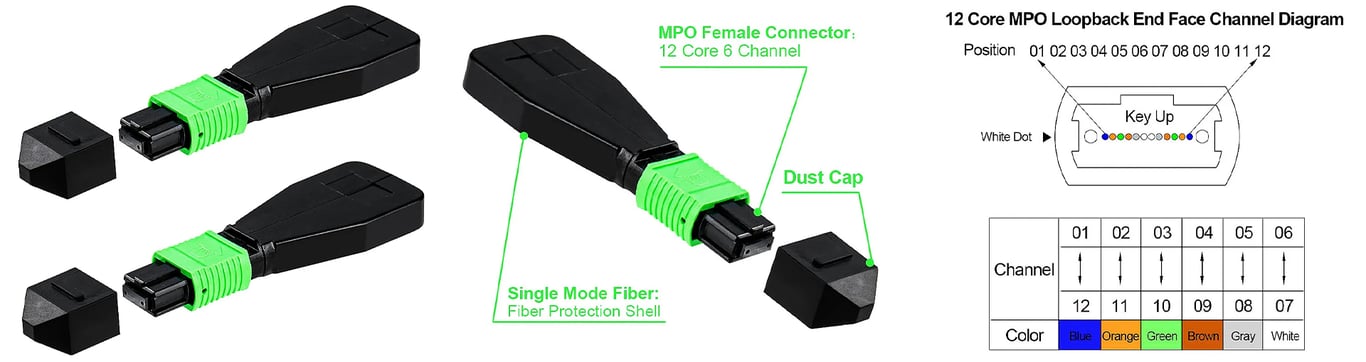

A MPO/MTP loopback is used primarily for testing and troubleshooting fiber optic networks. It acts as a passive component that redirects signals back to the source, allowing technicians to verify the integrity of the fiber link, check for any issues, and confirm signal quality.
How MPO/MTP Loopbacks Work:
A MPO/MTP loopback contains the same number of fibers as the MPO/MTP connector and is designed to connect the transmit fibers to the receive fibers. The loopback essentially reflects the outgoing signal back into the receiver, providing a way to check whether the network connection is functioning correctly.
Key Applications of MPO/MTP Loopback Devices:
1. Network Testing and Diagnostics:
- Loopback devices are primarily used for testing network equipment, including switches, routers, and transceivers. By using a loopback, engineers can simulate a full connection without needing a physical link to another device, allowing them to verify whether the equipment is transmitting and receiving data properly.
2. Troubleshooting:
- When troubleshooting fiber optic networks, loopback devices can help determine if a fault lies in the cable, the port, or the network equipment. By looping back signals, it becomes easier to isolate problems and verify that the hardware is functioning as expected.
3. Performance Monitoring:
- Regular use of loopback devices can help monitor the ongoing health of fiber optic systems. Engineers can periodically test ports or fibers to ensure that they are still performing optimally and to detect any issues before they lead to downtime or data loss.
4. Network Validation After Installation:
- After the installation of new equipment or a fiber optic system, loopback devices are used to confirm that the system is properly configured and that all links are functioning correctly. This step ensures that the infrastructure is ready for live traffic.
Types of MPO/MTP Loopback Devices:
Single Fiber Loopback: A loopback that only handles one fiber at a time, commonly used in single-fiber setups.
Multi-fiber Loopback: A more complex loopback device that can handle multiple fibers simultaneously, typically used for MPO/MTP configurations where 12, 24, or more fibers are present.
Gender-Specific Loopback: Some loopbacks are designed to connect a specific gender (male or female) of MPO/MTP connectors, ensuring compatibility with different devices.
Both MPO/MTP adaptors and loopback devices play crucial roles in high-speed optical networks:
Efficiency: Adaptors allow for seamless connections between MPO/MTP cables, while loopback devices enable fast and reliable testing. Both tools save time and reduce the risk of network disruptions.
Cost-Effective: By reducing the need for additional hardware and simplifying maintenance tasks, these devices help lower operational costs in large-scale network infrastructures.
Troubleshooting and Diagnostics: MPO/MTP loopbacks provide a convenient and cost-effective way to diagnose and troubleshoot network issues, ensuring minimal downtime and faster resolution of network problems.
Scalability: The ability to easily scale fiber optic networks using MPO/MTP connectors, adaptors, and loopbacks is essential in modern data centers, where capacity and bandwidth demands continue to grow exponentially.
Conclusion
MPO/MTP adapters and loopbacks are integral components for ensuring the reliability, scalability, and performance of modern fiber optic networks. By facilitating high-density connections, enabling easy network testing, and simplifying troubleshooting, these devices contribute to the smooth operation of today’s high-speed communication systems. Whether you're designing a new network or maintaining an existing one, understanding the role of MPO/MTP adaptors and loopbacks is essential for building and sustaining a robust, high-performance fiber optic infrastructure.
