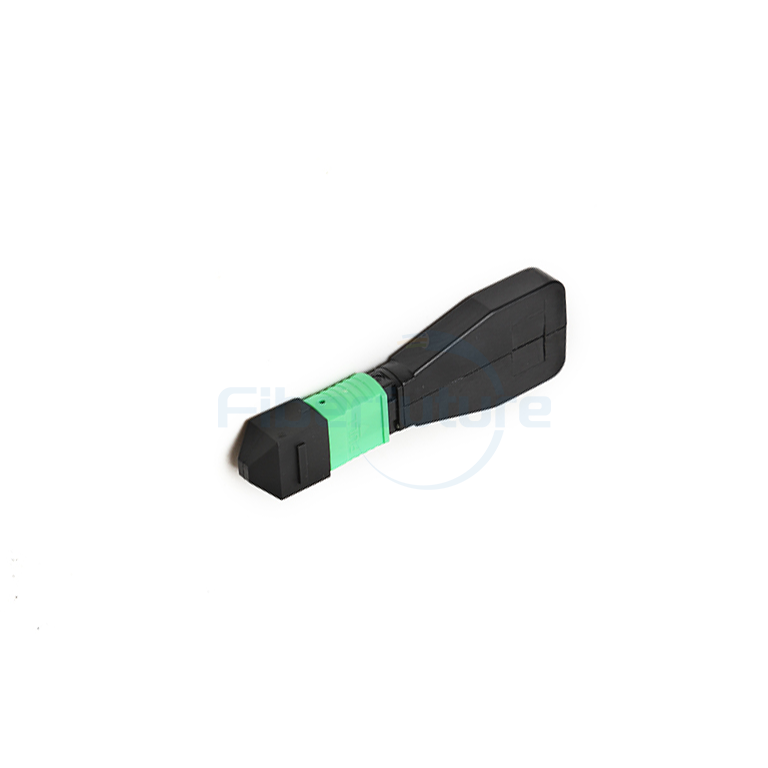

12/16 Fibers MTP&MPO Optical Loopback Jumper Type

Widely used in testing environments, especially in 40 and 100G parallel optics networks, FIBERFUTURE MPO loopbacks enable the verification and testing of transceivers with MPO/MTP interfaces. Designed to connect the transmitter (TX) and receiver (RX) positions of MPO/MTP transceiver interfaces, they ensure reliable functionality testing.

Send Email

Dimensional Diagram

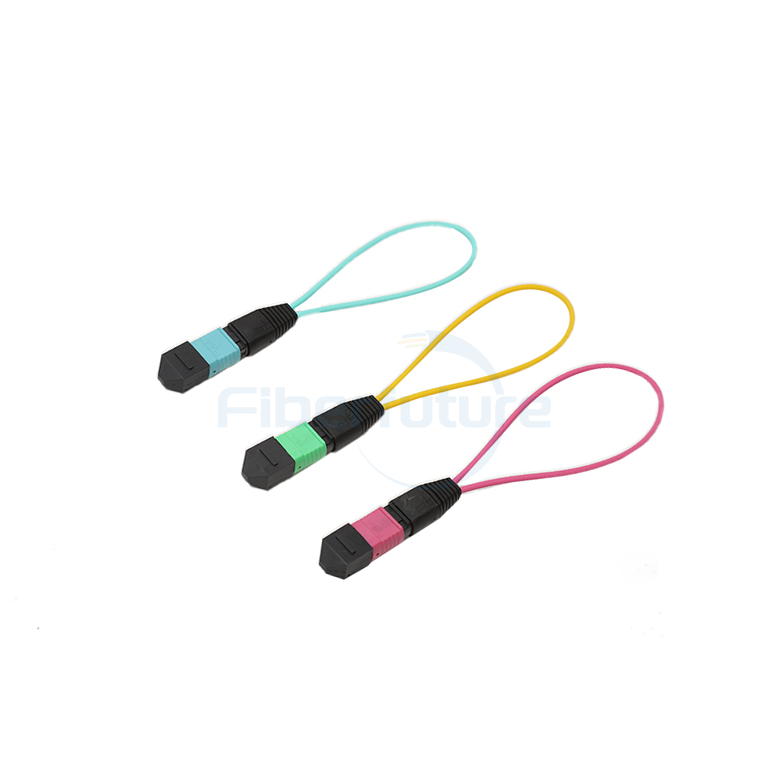

Female and Male MPO/MTP Loopback 8 12 and 24 Fibers

Applications

Utilization in 40GbE QSFP+ optical module verification processes.
Integration within research and development phases for innovative solutions.
Deployment in manufacturing environments for thorough product testing.
Application in troubleshooting to swiftly resolve network issues.
Inclusion in quality assurance procedures to uphold high standards.
Adoption in training programs for skill enhancement and education.

Features

Offers a broad spectrum of wiring arrangements and fiber options to suit diverse application needs.
Ensures full compliance with TIA/EIA and IEC interoperability standards for universal compatibility.
Provides configurations supporting 8, 12, and 24 fibers to accommodate varying density requirements.
Features user-friendly installation and removal processes, optionally equipped with pull tabs for added convenience.
Designed with compactness and portability in mind, enhanced with a lanyard feature for easy handling and secure attachment.

MPO&MTP Optical Characteristics

Item	Parameter				Reference
	Single mode		Multimode
	Standard	Elite	Standard	Elite
Insertion loss	Typical≤0.30dB Max≤0.75dB	Typical≤0.15dB Max≤0.35dB	Typical≤0.50dB Max≤0.25dB	Typical≤0.10dB Max≤0.35dB	IEC61300-3-34
Return loss	≥50dB (PC) ≥60dB (APC)	≥55dB (PC) ≥65dB (APC)	≥30dB (PC)	≥30dB (PC)	IEC61300-3-6
