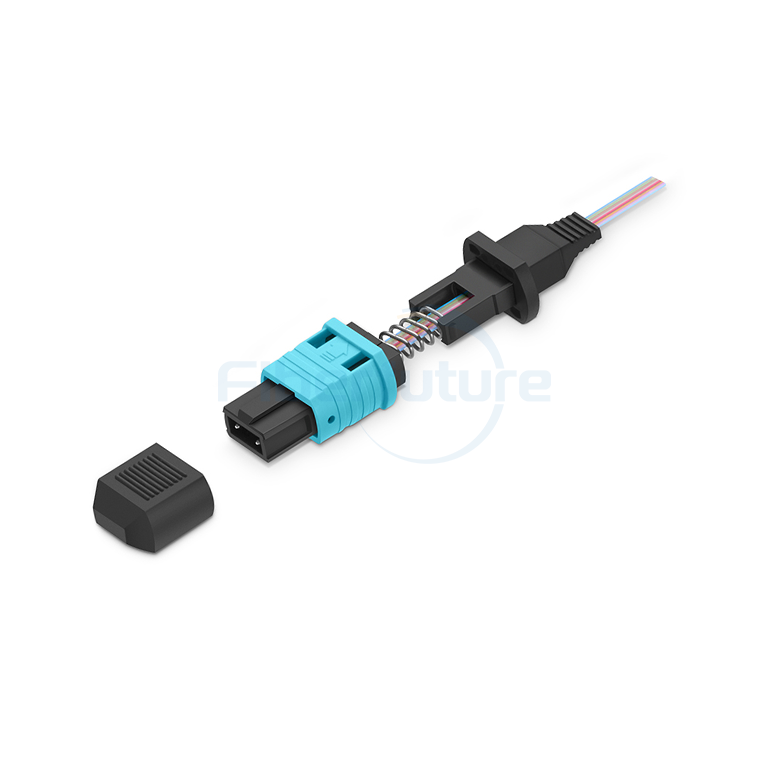

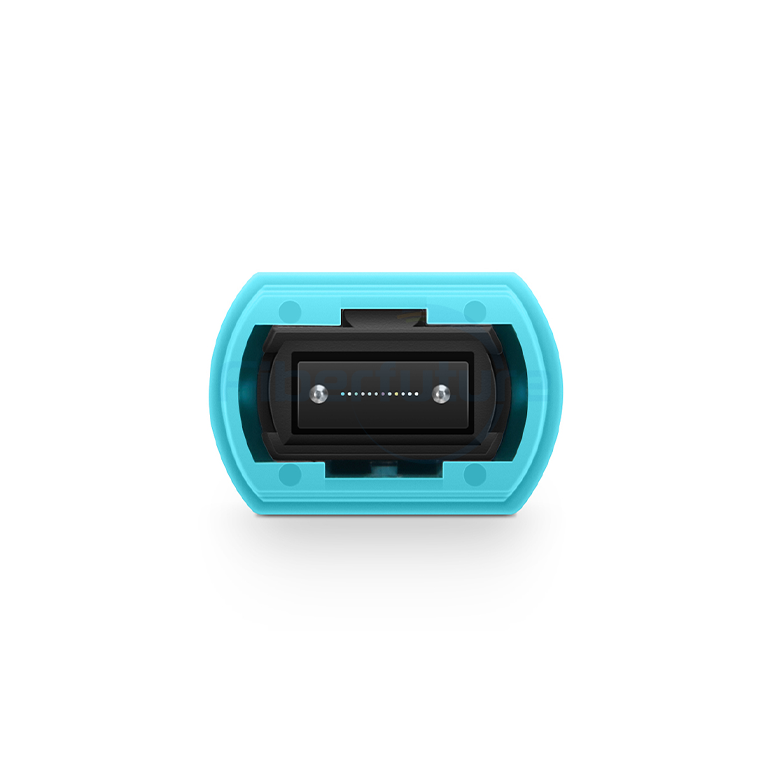

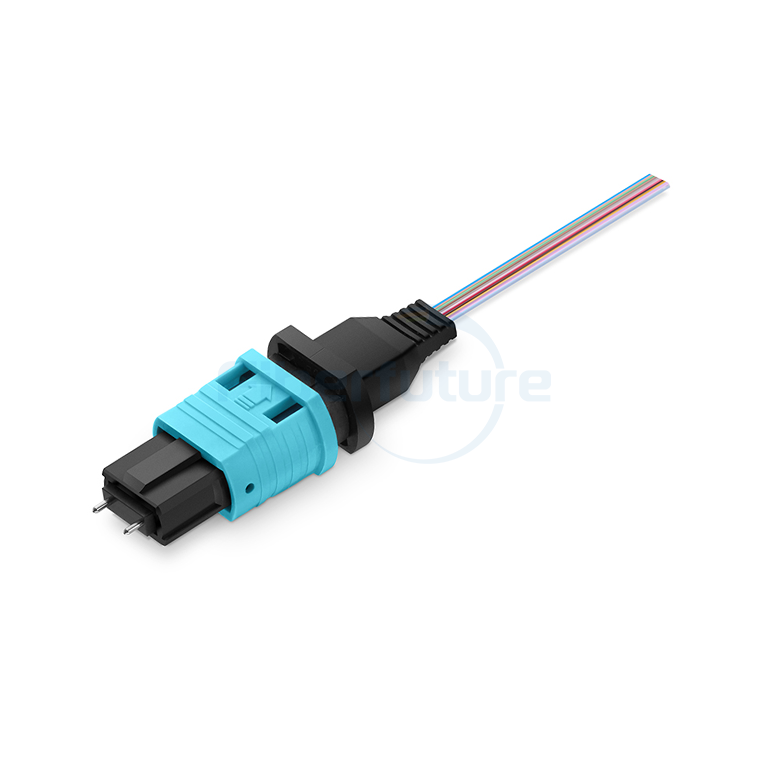

FIBERFUTURE MPO (Male) OM3/OM4 multimode flat ribbon field assembly splice-on connector is designed for rapid deployment in Data Center applications. This 50/125μm fiber connector features a pre-polished ferrule, eliminating on-site polishing and adhesives to reduce installation time and errors. The pinned, aqua-colored connector includes all necessary components for easy field assembly, supporting custom fiber links with standard insertion loss. It offers reliable fusion splicing for LANs, enhancing flexibility in repairs and connectivity restoration.
| Connector Type | |
|---|---|
| Fiber Type |
Data Center Cabling: Enables fast, reliable fusion splicing for repairs and connectivity.
MPO Connectivity Solutions: Ideal for installations requiring MPO connectors.
Network Maintenance: Supports efficient restoration and maintenance of network links.
Pre-polished Ferrule: Minimizes termination time without need for on-site polishing.
Fusion Splice Technology: Guarantees precise field installation.
Heat Sleeve Protection: Ensures reliable and durable connections.
Field-customizable Polarity: Adapts MPO polarity to meet specific requirements.
Flat Ribbon Design: Facilitates efficient cable trunk repair and restoration.
| Connector Type | MPO Female (Pinless) |
Polish Type
|
UPC |
| Number of Fibers | 12 |
Fiber Type
|
OM3/OM4
|
| Insertion Loss | 0.75dB Max, 0.35dB Typ. |
Return Loss
|
20dB Min.
|
| Housing Color | Aqua |
Boot Color
|
Black |
| Cable Type |
Flat Ribbon
|
Temperature
|
Storage 0 to 42°C (32 to 108℉) Operating 0 to 60°C (32 to 140℉) |
