The success or failure of Fiber to the Home (FTTH) deployment largely depends on the precise selection of fiber drop cables. With the rapid popularization of FTTH technology, fiber optic drop cables have become a key component connecting user terminals and backbone networks. The correct selection not only affects the transmission performance of the network, but also directly affects the convenience of installation, maintenance costs, and long-term network stability.

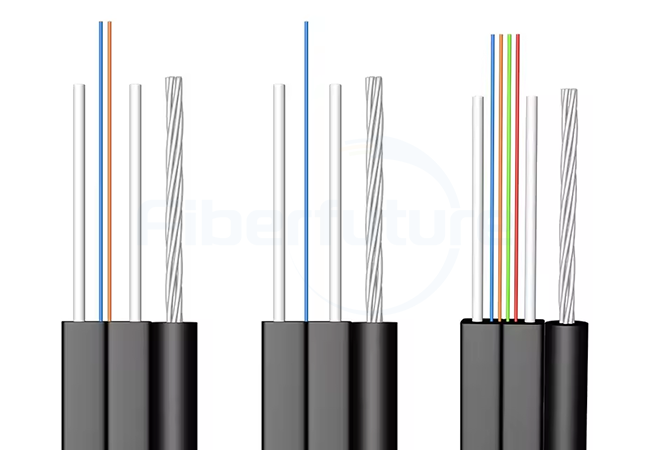

Firstly, understanding the basic types of drop fibra is the basis for selection. It is mainly divided into two categories: outdoor and indoor. Outdoor drop cables need to have characteristics such as waterproofing, UV protection, and strong weather resistance, such as the common outdoor 2x5mm FTTH drop cables; The indoor drop cable type focuses on fire resistance, flame retardancy, and flexible and easy wiring. The selection should be determined based on the actual installation environment.
Climate conditions: Extreme temperature, humidity, wind and sand, salt spray, etc. can all affect cable performance. In coastal areas with heavy rain, humidity, or salt spray, cables with better waterproof and salt spray resistance should be selected.
Laying path: It is necessary to consider whether the cable needs to cross narrow spaces, bypass obstacles, or be buried directly. Cables with high flexibility and small diameter are more suitable for complex environments.
Number of cores: Choose single core or multi-core cables according to actual needs. Ordinary household users may only need 1-2 chips, while commercial users may need more chips for future expansion.
Fiber type: Single mode fiber is suitable for long-distance transmission, while multimode fiber is suitable for short distance high-speed data transmission. The selection should be based on the network architecture and transmission distance.
Sheath material: High quality outer sheath can effectively prevent physical damage and environmental erosion. PE (polyethylene), PVC (polyvinyl chloride), and LSZH (low smoke zero halogen) are common options, with LSZH being more suitable for situations with strict fire protection requirements.
Armor layer: For scenarios that require direct burial or are susceptible to external mechanical damage, selecting cables with metal or non-metal armor can improve the mechanical strength and protection level of the cables.
Weight and diameter: Lightweight and small cables are easier to install and handle, especially for self installing users.
Joint compatibility: Ensure that the selected cable is compatible with existing junction boxes, splitters, and other equipment for quick installation and maintenance.
On the basis of meeting performance requirements, consider procurement costs, installation costs, and long-term maintenance costs comprehensively. High quality cables, although initially invested heavily, may be more cost-effective in the long run due to their low failure rate and long lifespan.
In summary, choosing FTTH drop cable for household use is a comprehensive consideration process that requires comprehensive consideration based on factors such as actual application scenarios, environmental conditions, and budget. The correct choice can not only improve network quality, but also effectively reduce future maintenance costs, ensuring users have a stable and efficient fiber broadband experience.
