OM2/OM3/OM4 Fiber MT to MT Patch Cords Female

FIBERFUTURE MT to MT female fiber optic patch cords are designed for optical QSFP modules, connecting the optical lens to external ports. Suitable for OM2/OM3/OM4 fibers, they offer precise lengths for compact spaces in data centers and networking applications.

Send Email

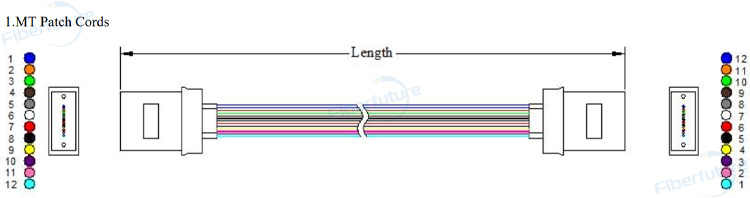

Dimensional Diagram

MT Fiber Array Assembly 2F/4F/8F/12F/16F/24F-copy

Applications

QSFP Quad Small Form-factor Pluggable - Used in high-speed networking equipment.
SFP+ Active Optical Cables - Ideal for short-reach interconnects in data centers and enterprise networks.
Parallel Light Optical Transceiver Modules - Essential for parallel optics in high-bandwidth applications.
Communication - Supporting various communication systems, including telecommunications and data transmission.
Military Applications - Deployed in secure military communications and radar systems.
Data Centers - Enabling high-speed connectivity between servers, storage, and network switches.
Supercomputers - Facilitating ultra-fast data transfer rates in high-performance computing environments.

Features

Transmission Rate: Supports speeds of 40Gbps, 100Gbps, and 168Gbps.
GR-1435 Compliance: Adheres to industry standards for reliability and performance.
Simple Structure: Easy to install and maintain with a straightforward design.
Cost-Effective: Offers an affordable solution for high-speed connectivity.
Customizable: Can be tailored to specific customer requirements and applications.

MPO&MTP Optical Characteristics

Item	Parameter				Reference
	Single mode		Multimode
	Standard	Elite	Standard	Elite
Insertion loss	Typical≤0.30dB Max≤0.75dB	Typical≤0.15dB Max≤0.35dB	Typical≤0.50dB Max≤0.25dB	Typical≤0.10dB Max≤0.35dB	IEC61300-3-34
Return loss	≥50dB (PC) ≥60dB (APC)	≥55dB (PC) ≥65dB (APC)	≥30dB (PC)	≥30dB (PC)	IEC61300-3-6
