What Is The GYFTY Fiber Optic Cable?

GYFTY FRP locates in the center of cores as a non-metallic strength member. The cable tubes, which are filled with filling compound, are stranded around the strength member. Then the aramid yarn is applied over water proof material, the cable is completed with a PE sheath. GYFTY cables are available from 2 cores to 144 cores. It is used in high-voltage area for long distance communications.The cable tubes, which are filled with filling compound, are stranded around the FRP strength member. Then the aramid yarn is applied over water proof material, the cable is completed with a PE sheath. GYFTY cables are available from 2 core to 144 core. It is used in high-voltage area for long distance aerial or duct application.

12-24-48-72-144 Core GYFTY Fiber Optic Cable FRP non-metallic Single Jacket Waterproof Dielectric Loose Tube Used in power transmission system,excessive thunder areas and high electromagnetic interface SM or MM.

Features:

– Light weight, small diameter, easy to lay.
– Excellent mechanical and temperature performance.
– Low dispersion and attenuation.
– Special filling get filled loose tubes provide perfect optical fiber protection.
– Non-metal central strength has a excellent anti-electromagnetic ability.
– Water blocking system provide reliable performance of moisture-proof and water block.
– The fiber reinforced plastic and loose tube filling compound can ensure the cable watertight.

Application:

– Laying modes: Aerial & Duct
– Electromagnetic interfering places
– Outdoor distribution
– Access network and local network

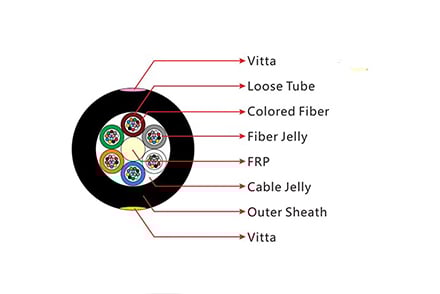

Structure Design:

• Optical Charactristics:



• G.652	G.655	50/125μm	62.5/125μm
  Attenuation (+20℃)	@850nm			≤3.0 dB/km	≤3.0 dB/km
  	@1300nm			≤1.0 dB/km	≤1.0 dB/km
  	@1310nm	≤0.36 dB/km	≤0.40 dB/km
  	@1550nm	≤0.22 dB/km	≤0.23dB/km
  Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
  	@1300nm			≥1000 MHz·km	≥600 MHz·km
  Numerical Aperture				0.200±0.015NA	0.275±0.015NA
  Cable Cut-off Wavelength		≤1260nm	≤1480nm



• Technical Pamameters:



• Cable Type	Fiber Count	Tubes	Fillers	Cable Diameter mm	Cable Weight kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100mm	Bending Radius Static                /Dynamic mm
  GYFTY-2~6	2~6	1	5	10.6	88	400/1000	300/1000	10D/20D
  GYFTY-8~12	8~12	2	4	10.6	88	400/1000	300/1000	10D/20D
  GYFTY-14~18	14~18	3	3	10.6	88	400/1000	300/1000	10D/20D
  GYFTY -20~24	20~24	4	2	10.6	88	400/1000	300/1000	10D/20D
  GYFTY-26~30	26~30	5	1	10.6	88	400/1000	300/1000	10D/20D
  GYFTY-32~36	32~36	6	0	10.6	88	400/1000	300/1000	10D/20D
  GYFTY-2~6	2~6	1	6	11.0	97	600/1500	300/1000	10D/20D
  GYFTY-8~12	8~12	2	5	11.0	97	600/1500	300/1000	10D/20D
  GYFTY-14~18	14~18	3	4	11.0	97	600/1500	300/1000	10D/20D
  GYFTY-20~24	20~24	4	3	11.0	97	600/1500	300/1000	10D/20D
  GYFTY-26~30	26~30	5	2	11.0	97	600/1500	300/1000	10D/20D
  GYFTY-32~36	32~36	6	1	11.0	97	600/1500	300/1000	10D/20D
  GYFTY-38~42	38~42	7	0	11.0	97	600/1500	300/1000	10D/20D
  GYFTY-44~48	44~48	4	2	12.0	113	600/1500	300/1000	10D/20D
  GYFTY-50~60	50~60	5	1	12.0	113	600/1500	300/1000	10D/20D
  GYFTY-62~72	62~72	6	0	12.0	113	600/1500	300/1000	10D/20D
  GYFTY-2~6	2~6	1	7	12.0	120	1000/3000	300/1000	10D/20D
  GYFTY-8~12	8~12	2	6	12.0	120	1000/3000	300/1000	10D/20D
  GYFTY-14~18	14~18	3	5	12.0	120	1000/3000	300/1000	10D/20D
  GYFTY-20~24	20~24	4	4	12.0	120	1000/3000	300/1000	10D/20D
  GYFTY-26~30	26~30	5	3	12.0	120	1000/3000	300/1000	10D/20D
  GYFTY-32~36	32~36	6	2	12.0	120	1000/3000	300/1000	10D/20D
  GYFTY-38~42	38~42	7	1	12.0	120	1000/3000	300/1000	10D/20D
  GYFTY-44~48	44~48	8	0	12.0	120	1000/3000	300/1000	10D/20D
  GYFTY-50~60	50~60	5	2	13.0	137	1000/3000	300/1000	10D/20D
  GYFTY-62~72	62~72	6	1	13.0	137	1000/3000	300/1000	10D/20D
  GYFTY-74~84	74~84	7	0	13.0	137	1000/3000	300/1000	10D/20D
  GYFTY-86~96	86~96	8	0	13.9	154	1000/3000	300/1000	10D/20D
  GYFTY-98~108	98~108	9	1	15.3	185	1000/3000	300/1000	10D/20D
  GYFTY-110~120	110~120	10	0	15.3	185	1000/3000	300/1000	10D/20D

  Storage/Operating Temperature : -40℃ to + 70℃

We can support customized optical cables according to customer requirements for different core numbers. If you have needs, please feel free to contact our technical or business team, thank you!
