These central loose tube optical fiber ribbon cables are suitable for installation in aerial or duct environment for communication between bureaus, metropolitan network, access network and is especially suitable for the situation where high-density fibers is expected.
Laying modes: Aerial & Conduit
Rural communication, local trunk line, CATV & computer networks system
Long-distance communication and LAN

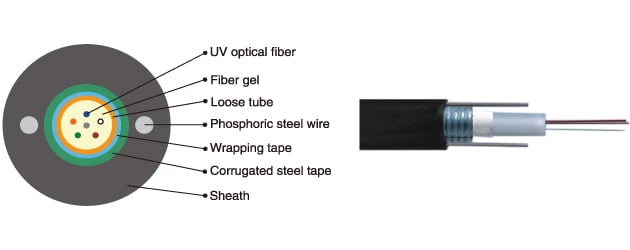

Structure configurations:
Waterproofing layer between the steel tape and cable core.
Double-sided PE corrugated steel tape with PE sheath
Parallel double steel wire as strengthening member
the GYXTW is a fantastic type of fiber optic cable that has lead to significant change in the telecommunication industry. The research showed that, GYXTW has some super features as compared to other types of fiber optic cable. Additionally, GYXTW is widely available in the market and you can easily purchase one when need comes. Furthermore, its installation does not require technical experiences and therefore, you can install it for yourself.
Fiber |
Cable dia.(mm) |
Cable net weight(Kg/km) |
Min. bending radius(mm) |
Min. tensile strength(N) |
Min. crush pressure(N/100mm) |
|||
Static state | Dynamic state |
Short term | Long term | Short term | Long term |
|||
2-6 | 10.1 | 104 | 110 | 220 | 1500 | 600 | 1000 | 300 |
8-12 | 10.6 | 114 | 110 | 220 | 1500 | 600 | 1000 | 300 |
14-24 | 11.2 | 128 | 120 | 240 | 1500 | 600 | 1000 | 300 |
For more information about our gyxtw cable, pls contact us
