The bow-type drop optical cables are mainly used for laying and connecting users' indoor multimedia information boxes to corridor transition boxes, optical cable connector boxes, and telecommunications optical switches.
1. The indoor drop cables should be laid out according to customer needs, and an appropriate length should be left at the customer terminal for user use.
2. The distance between the bow-type drop optical cable and the power line (220V) indoors should not be less than 2 cm. And add casing protection. The length of the plastic tube should not be less than 10 cm. There must be no wear when crossing obstacles, otherwise it should be protected.
3. When placed along the wall indoors, the bending radius must be greater than 15 mm.
4. After deployment, the lines should be tested, and equipment and service tests should be coordinated to ensure link connectivity.

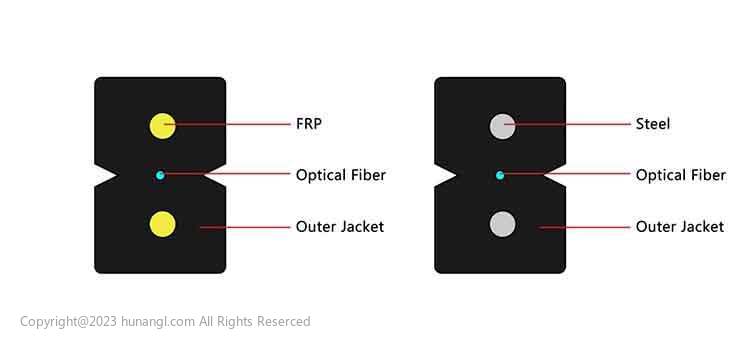

The bow-type drop optical cables are mostly 1core, 2 core,4 core structures. They can also be made into 12 core structures. The cross-section is in a figure-8 shape. The reinforcement is located at the center of the two circles. It can adopt a metal or non-metal structure. The optical fiber is located in a figure-8 geometry. center. GL Technology Factory supports customization, complete models, and 30-year product warranty. Welcome to send us inquiry and visit our factory!
