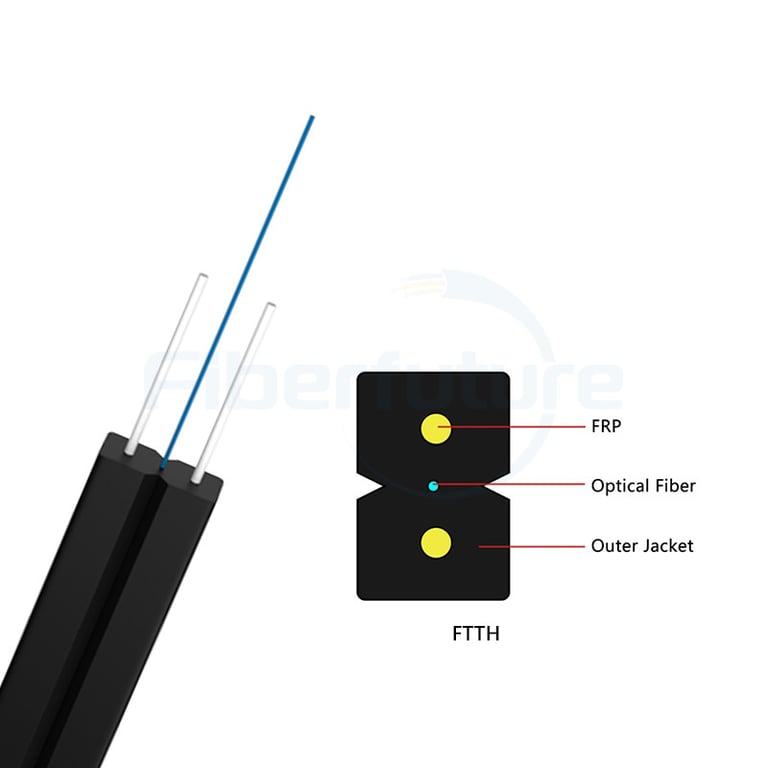

GJXFH FTTH drop fiber optic cable includes central optical fibre(s) with 2 parallel GFRPs as the strength members placed on both sides, a LSZH sheath or PVC sheath is extruded outside.
| Fiber Count | |
|---|---|
| Fiber Type |
***** Simple structure, light weight, high tensile strength and metal-free
Used in access networks or as outdoor-to-indoor connection cables in customer premises.
Serves as access building cable in premises distribution systems, particularly for indoor and outdoor aerial installations.
|
Type |
Diameter |
Weight |
Tensile Strength |
Crush |
Bending Radius |
||||||||||||||||||||
|
GJXFH-1 |
2.0*3.0 |
7.5 |
40/80 |
500/1000 |
15/30 |
||||||||||||||||||||
|
GJXFH-2 |
2.0*3.0 |
7.5 |
40/80 |
500/1000 |
15/30 |
||||||||||||||||||||
|
GJXFH-4 |
2.0*3.0 |
7.5 |
40/80 |
500/1000 |
15/30 |
||||||||||||||||||||
Transport/storage temperature: -20℃~70℃
| Loading Quantity Suggestion | ||
| 20'GP Container | 1KM/roll | 812KM |
| 2KM/roll | 1000KM | |
| 40'HQ Container | 1KM/roll | 1900KM |
| 2KM/roll | 2000KM | |

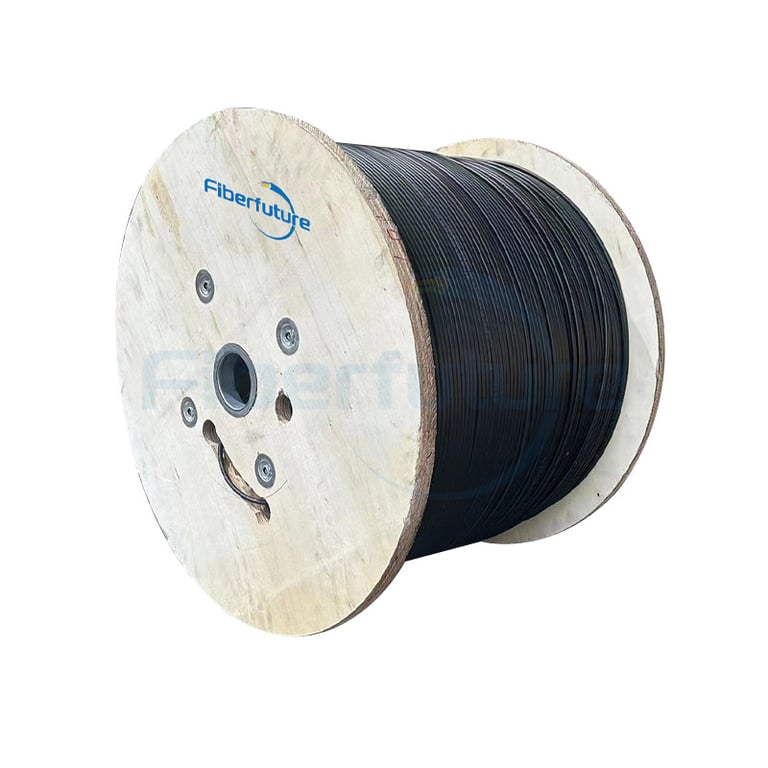

*Standard length:1000m;Other length availabe
*The above is just a suggestion for container loading, please consult our sales department for the specific quantity
